• Waveforms

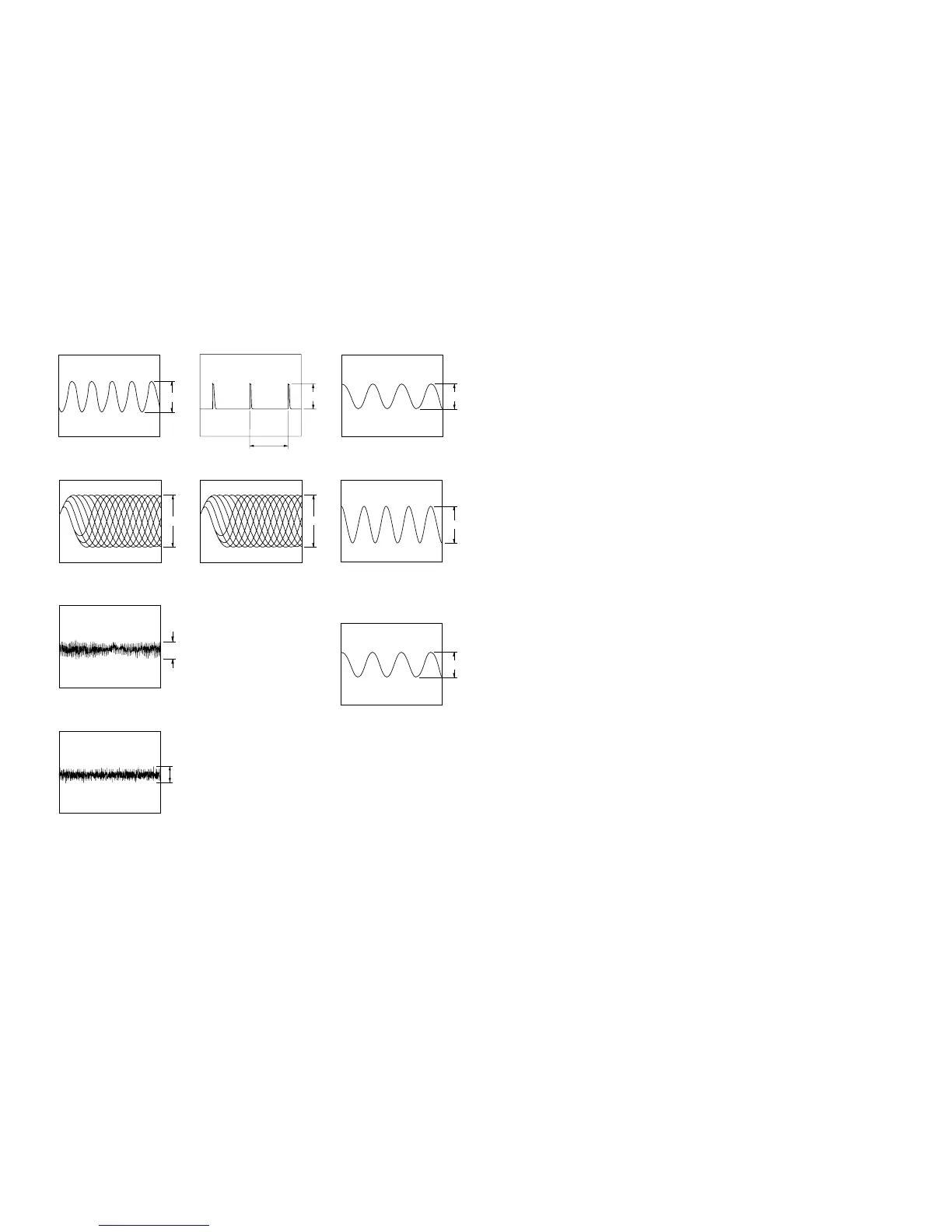

– BD Board –
1 IC101 ^¶ (XTAO)
5 IC101 @§ (MDP)
2 IC101 %¡ (RF AC) (CD Play Mode)
3 IC101 $¡ (TE) (CD Play Mode)
4 IC101 #ª (FE) (CD Play Mode)
6 IC102 !§ (RFO) (CD Play Mode) 2 IC501 !∞ (XIN)
– MAIN Board –
1 IC501 0 (XC-IN)
3.1 Vp-p
16.9344 MHz
1.2 Vp-p
0.2 Vp-p
0.5 Vp-p
2.5 Vp-p
7.8 µ s
1.3 Vp-p
1.8 Vp-p
32.768 kHz
2.2 Vp-p
16 MHz
– PANEL Board –
1 IC601 &™ (XOUT)
4.7 Vp-p
12.5 MHz
