Sony HCD-GRX50 - Tape Mechanism Deck Section-1 Assembly

– 80 –

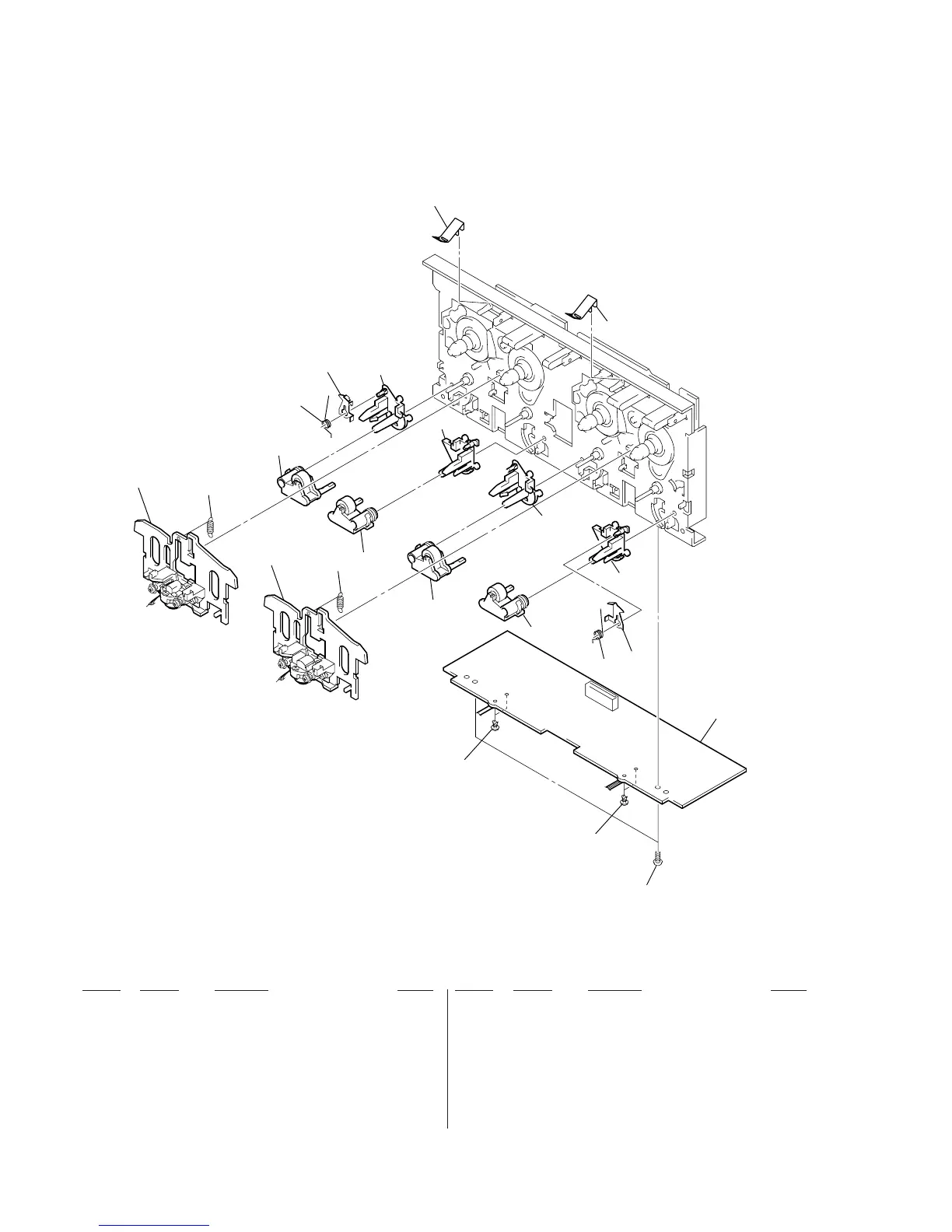

(7) TAPE MECHANISM DECK SECTION-1
(TCM-230AWR2)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
401 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
402 3-911-116-21 RIVET, PUSH
403 3-016-574-11 SPRING (HEAD), TENSION
404 X-3374-156-4 PINCH LEVER (REV) ASSY
405 X-3374-155-4 PINCH LEVER (FWD) ASSY
406 3-016-564-01 BASE (PINCH LEVER FWD)
407 3-016-565-01 BASE (PINCH LEVER REV)
408 3-026-892-01 SPRING (CASSETTE), LEAF
* 409 A-2007-731-A AUDIO BOARD, COMPLETE
410 3-032-809-02 SPRING (L), TORSION
411 3-016-572-01 LEVER (EJECT PREVENTION L)
412 3-032-810-02 SPRING (R), TORSION
413 3-016-573-01 LEVER (EJECT PREVENTION R)
HP101 A-2056-681-A DECK (A) ASSY, HEAD
HRPE101A-2056-682-A DECK (B) ASSY, HEAD
401
402
402
403
403
404
410
411
404
405
405
412
413
406
406
407
408
408
407
HRPE101
HP101
409
