Sony HCD-GRX70 - Page 10

– 10 –

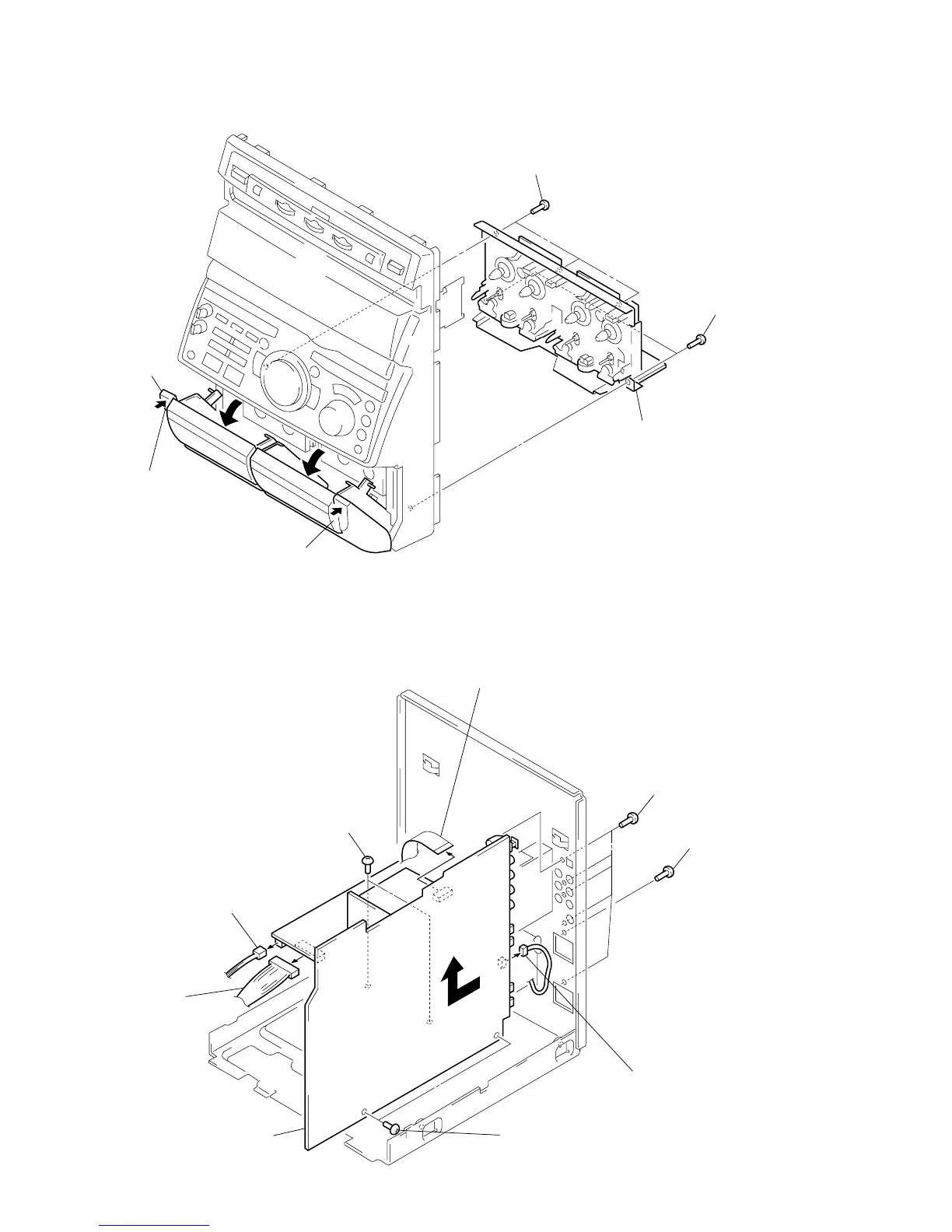

TAPE MECHANISM DECK SECTION (TCM-230AWR2)
MAIN BOARD
1 Push the cassette lid.
4 tape mechanism deck section
(TCM-230AWR2)
1 Push the cassette lid.
2 Open two
cassette lids.
3 two screws
(BVTP2.6
× 8)
3 three screws
(BVTP2.6
× 8)
5 five screws
(BVTP3 × 8)
5 screw
(BVTP3 × 8)
(GRX70/GRX70J)
4 two screws
(BVTP3 × 8)
7 connector
(CN403)
3 two screws
(BVTP3 × 8)
2 connector
(CN953) (GRX70/GRX70J)
2 connector
(CN952)
6 Remove the MAIN board
in the direction of the arrow.
1 wire (flat type)
13 core: GRX70: E2, TH, MX, AR, AUS/RXD80
15 core: GRX70: E3, SP, TW/GRX70J
(CN371)
( )
• Abbreviation
AR : Argentine model
AUS : Australian model
E2 : 120 V AC Area in E model
E3 : 240 V AC Area in E model
MX : Mexican model
SP : Singapore model
TH : Thai model
TW : Taiwan model
