– 72 –

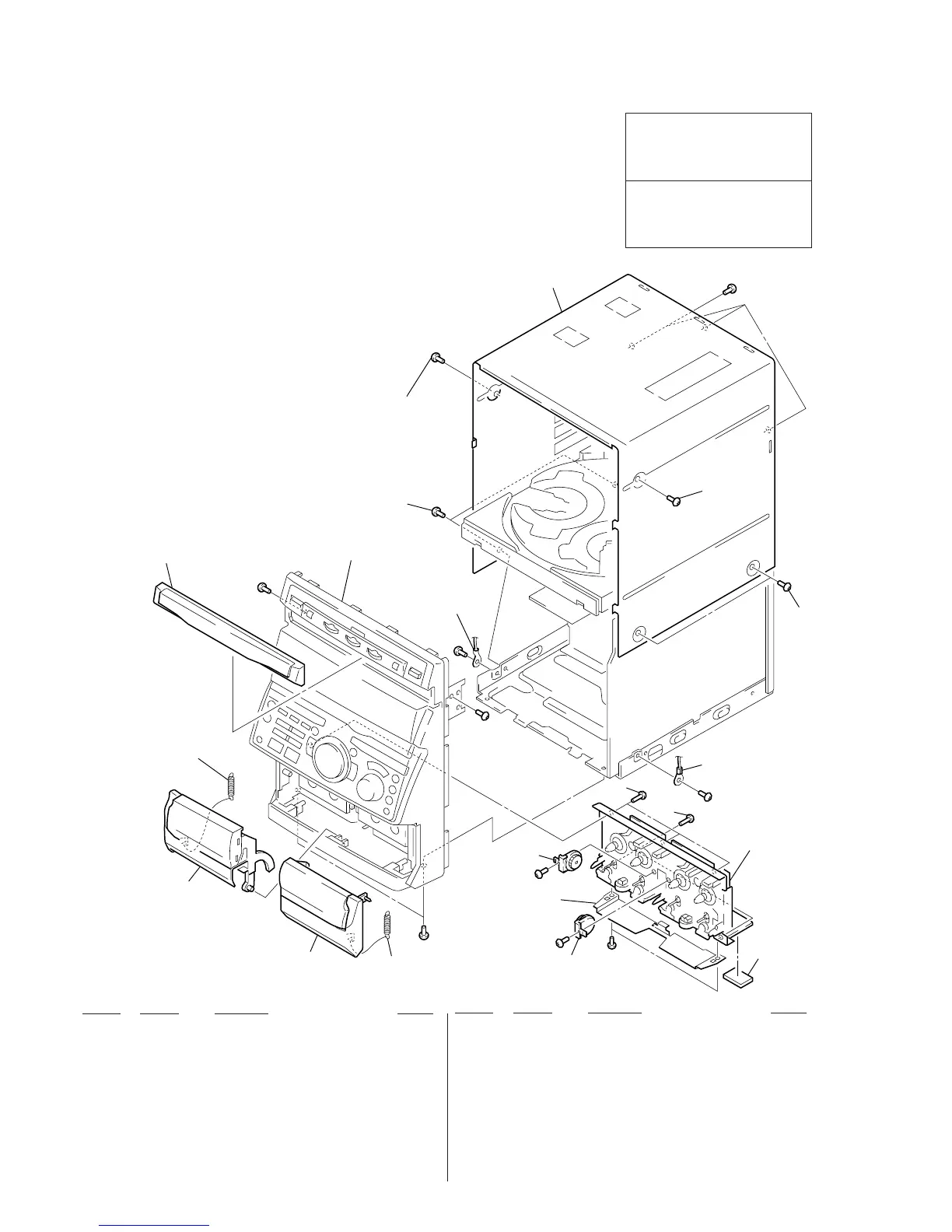

(1) COVER SECTION
SECTION 8
EXPLODED VIEWS
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4950-832-1 HOLDER (R) ASSY, CASSETTE (SILVER)
1 X-4950-971-1 HOLDER (R) ASSY, CASSETTE (GRAY)
2 X-4950-828-1 HOLDER (L) ASSY, CASSETTE (SILVER)
2 X-4950-970-1 HOLDER (L) ASSY, CASSETTE (GRAY)
3 X-4950-756-1 PANEL ASSY, LOADING (SILVER)
3 X-4951-575-1 PANEL ASSY, LOADING (GRX70J)
3 X-4951-580-1 PANEL ASSY, LOADING (RXD80)
3 X-4951-581-1 PANEL ASSY, LOADING (GRX70: E3)
4 3-363-099-01 SCREW (CASE 3 TP2) (3X8) (GRAY)
4 3-363-099-11 SCREW (CASE 3 TP2) (3X8) (SILVER)
5 3-363-099-41 SCREW (CASE 3 TP2) (3X12) (GRAY)
5 3-363-099-71 SCREW (CASE 3 TP2) (3X12) (SILVER)
* 6 4-214-443-01 COVER (SILVER)
* 6 4-215-752-61 COVER (GRAY)
7 4-951-620-01 SCREW (2.6X8), +BVTP
8 4-215-062-01 DAMPER
9 4-985-642-01 CUSHION
10 4-219-087-01 SPRING, TENSION
TCM-230AWR
To Next Page
