HCD-GRX70/GRX70J/RXD80
– 57 –
– 58 –

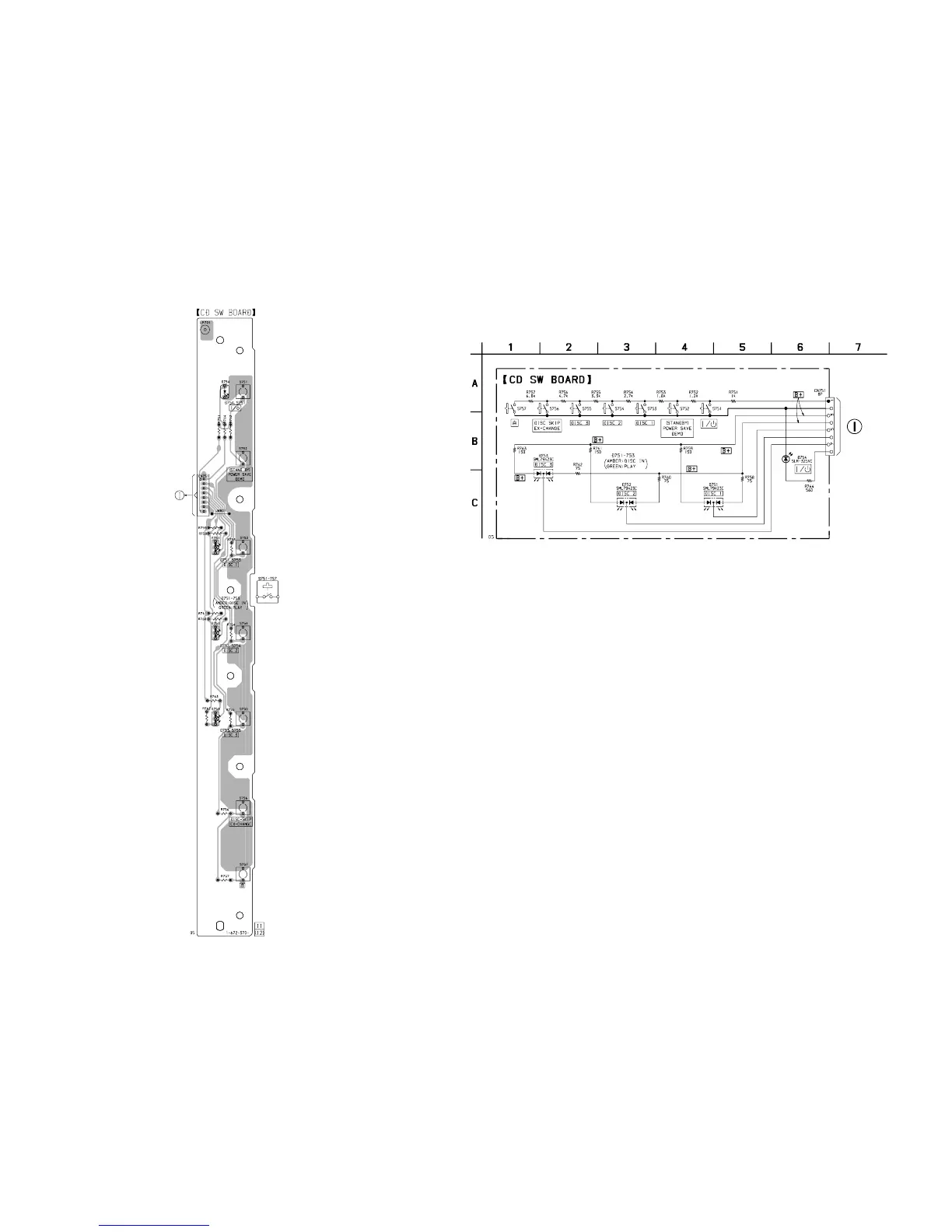

7-21. PRINTED WIRING BOARD – CD SW Board – • See page 28 for Circuit Boards Location.
7-22. SCHEMATIC DIAGRAM – CD SW Board –
(Page 55)
(Page 54)
