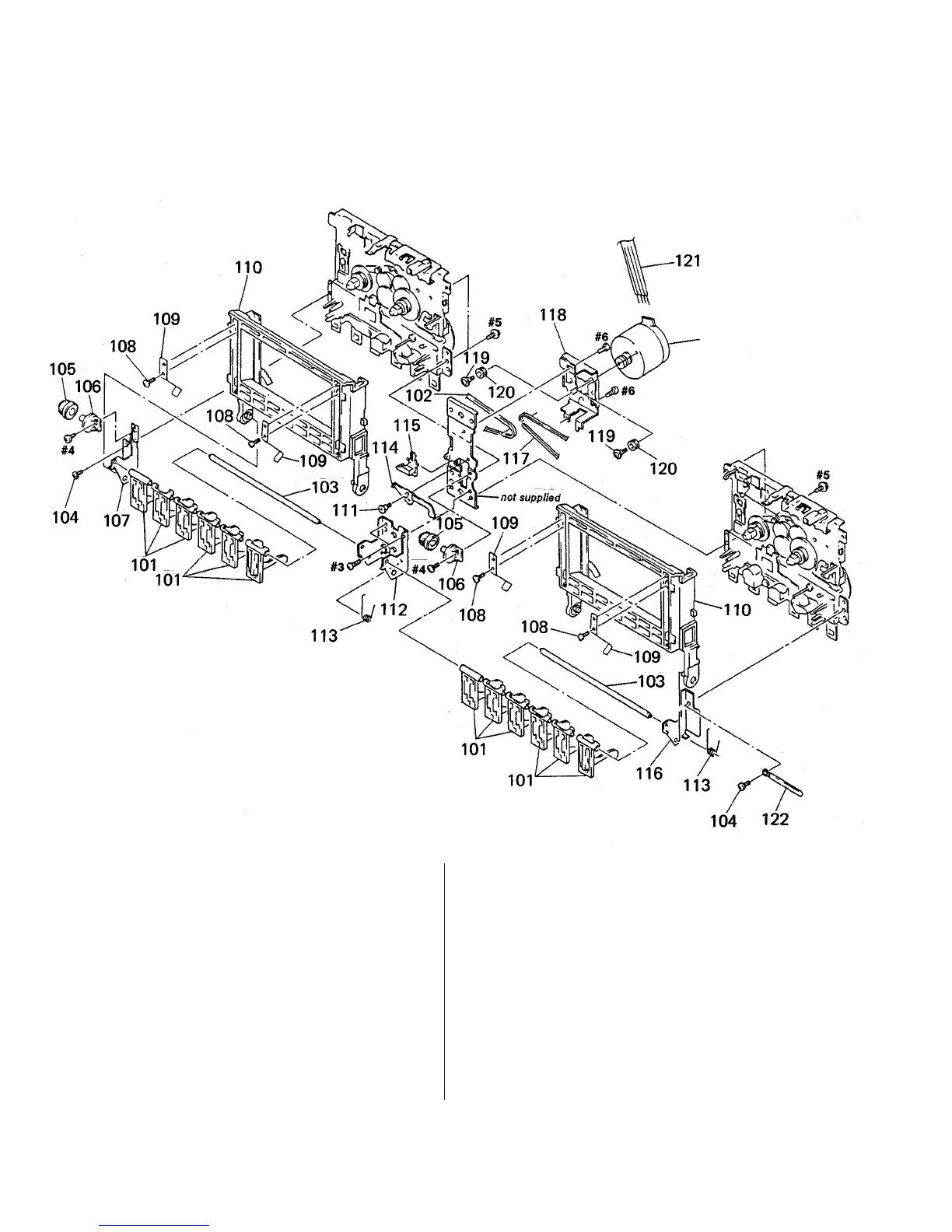

Sony HCD-H331 - TC Mechanism Section 1 Exploded View

– 50 –
101 3-931-802-01 BUTTON, LEVER
102 3-918-734-01 BELT
* 103 3-931-794-01 BUTTON, SHAFT
104 3-918-741-01 SCREW
105 3-931-807-01 DAMPER, GEAR
106 3-931-806-01 GEAR, HOLDER
* 107 3-931-793-01 BUTTON (L), HOLDER
108 3-931-790-01 SCREW
* 109 3-931-804-01 PLATE, KEEP
110 3-931-803-01 CASE, CASSETTE
111 3-931-791-01 SCREW
112 3-931-809-01 BUTTON (S), HOLDER
113 3-931-805-01 SPRING
* 114 3-369-927-01 ARM, CONNECT
115 3-369-928-01 ARM, RELEASE
* 116 3-931-792-01 BUTTON (R), HOLDER
117 3-369-931-01 BELT
* 118 3-918-742-01 HOLDER, MOTOR
119 3-343-896-01 SCREW, MOTOR
120 3-343-897-01 WASHER, RUBBER
121 1-698-705-11 MOTOR, WIRE
* 122 3-931-808-01 LUG, PLATE
M1 X-3372-231-1 MOTOR ASSY (CAPSTAN/REEL)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
––––––– ––––––– –––––––––– ––––––– ––––––– ––––––– –––––––––– ––––––
8-3. TC MECHANISM SECTION 1 (TCM-YSW47C24)
M1
