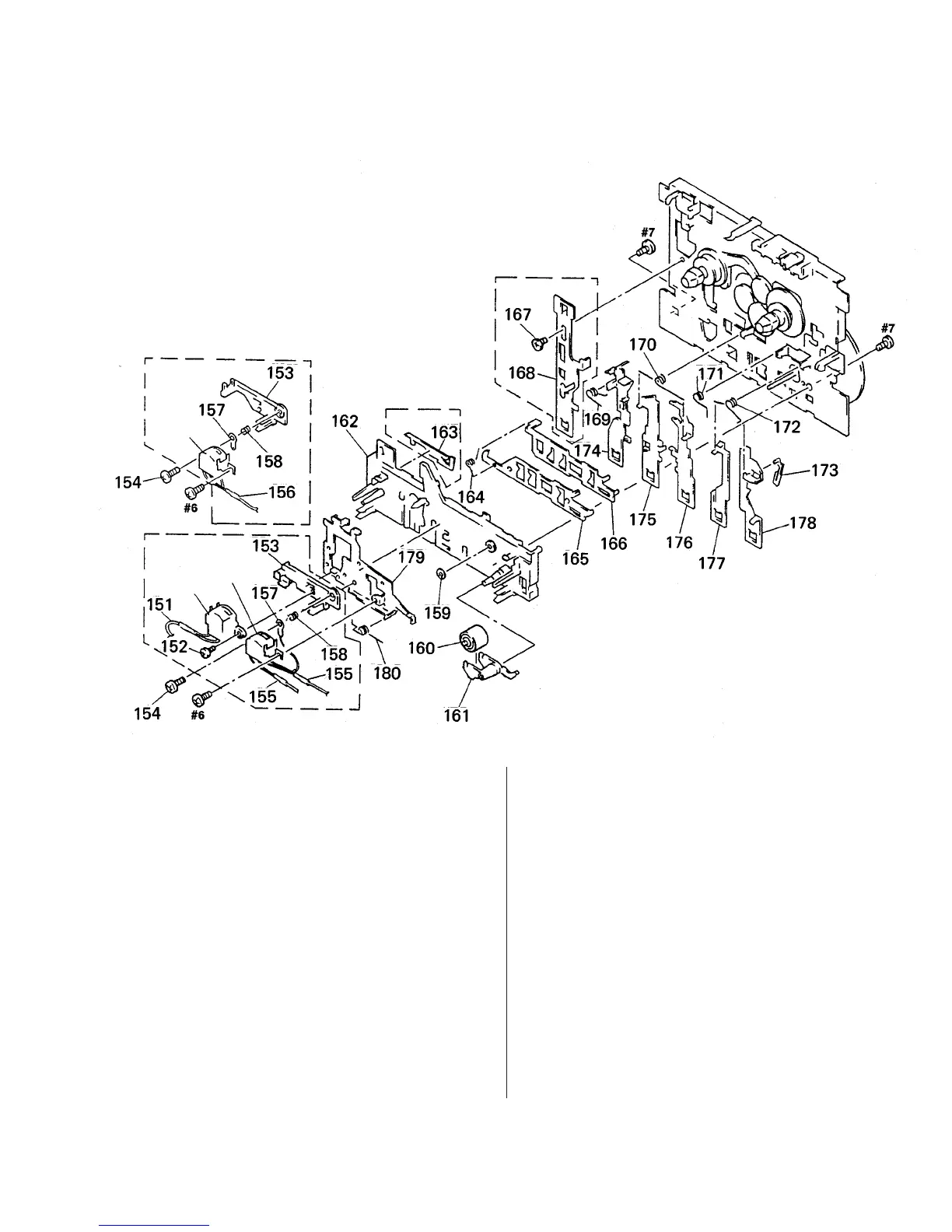

Sony HCD-H331 - TC Mechanism Section 2 Exploded View

– 51 –
151 1-500-322-11 HEAD, WIRE (E) (DECK B)
152 3-931-789-01 SCREW (DECK B)
153 1-500-319-11 HEAD, HOLDER (DECK B)
153 3-362-986-01 HOLDER, HEAD (DECK A)
154 3-363-229-01 SCREW
155 1-500-320-11 HEAD, WIRE R/P (DECK B)
156 1-500-321-11 HEAD, WIRE P.B (DECK A)
157 3-390-817-01 LUG
158 3-362-985-01 SPRING
159 3-362-980-01 WASHER
160 3-362-982-01 PINCH ROLLER
161 3-362-981-01 PINCH ARM
162 3-362-942-01 FRAME ASSY
163 3-362-944-01 STOPPER, REC (DECK B)
164 3-362-945-01 SPRING
* 165 3-362-943-01 PLATE, FUNCTION
* 166 3-362-946-01 LEVER, SW
167 3-362-958-01 SCREW (DECK B)
* 168 3-362-947-01 LEVER, REC (DECK B)
169 3-362-954-01 SPRING
170 3-362-955-01 SPRING
171 3-362-956-01 SPRING
172 3-932-552-01 SPRING
173 3-362-953-01 ARM, PAUSE
* 174 3-362-948-01 LEVER, PLAY
* 175 3-362-949-01 LEVER, REW
* 176 3-362-950-01 LEVER, FF
* 177 3-362-951-01 LEVER, SE
* 178 3-362-952-01 LEVER, PAUSE
* 179 3-362-984-01 HEAD (BASE)
180 3-362-983-01 SPRING
HE1 1-500-318-11 HEAD, E (ERASE)(DECK B)
HP1 1-543-424-21 HEAD (PLAYBACK) (DECK A)
HRPE1 1-543-424-21 HEAD (RECORD/PLAYBACK) (DECK B)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
––––––– ––––––– –––––––––– ––––––– ––––––– ––––––– –––––––––– ––––––
8-4. TC MECHANISM SECTION 2 (TCM-YSW47C24)
HP1
DECK B
HE1
HRPE1
DECK A
DECK B
DECK B
