Sony HCD-M100 - Schematic Diagram - Main (3;6) Section

HCD-M100/M300AV
37
37

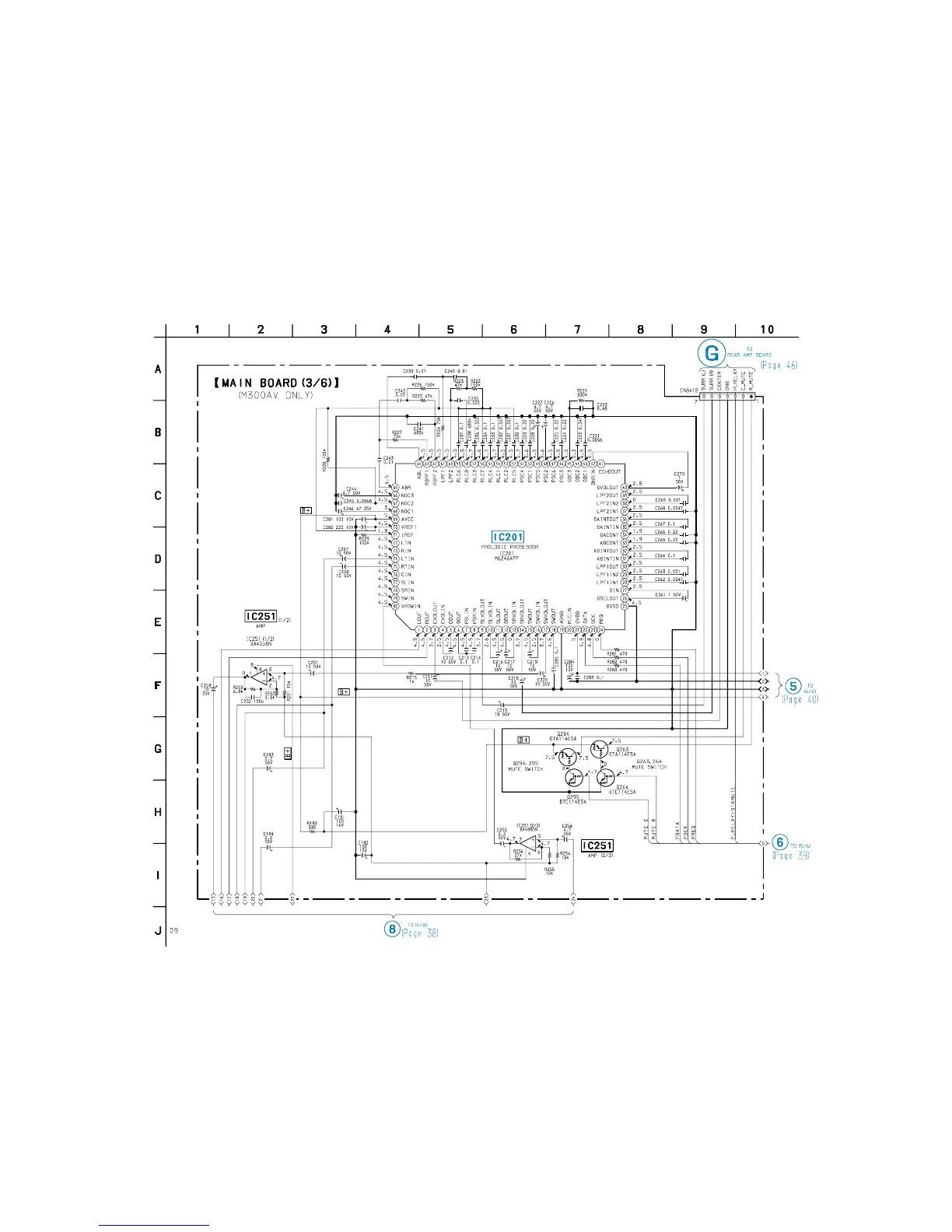

6-12. SCHEMATIC DIAGRAM – MAIN (3/6) SECTION – • See page 32 for Printed Wiring Board. • See page 58 for IC Block Diagrams.
