Sony HCD-M100 - Disassembly Procedures; Case and Front Panel Disassembly

8
SECTION 2
DISASSEMBLY

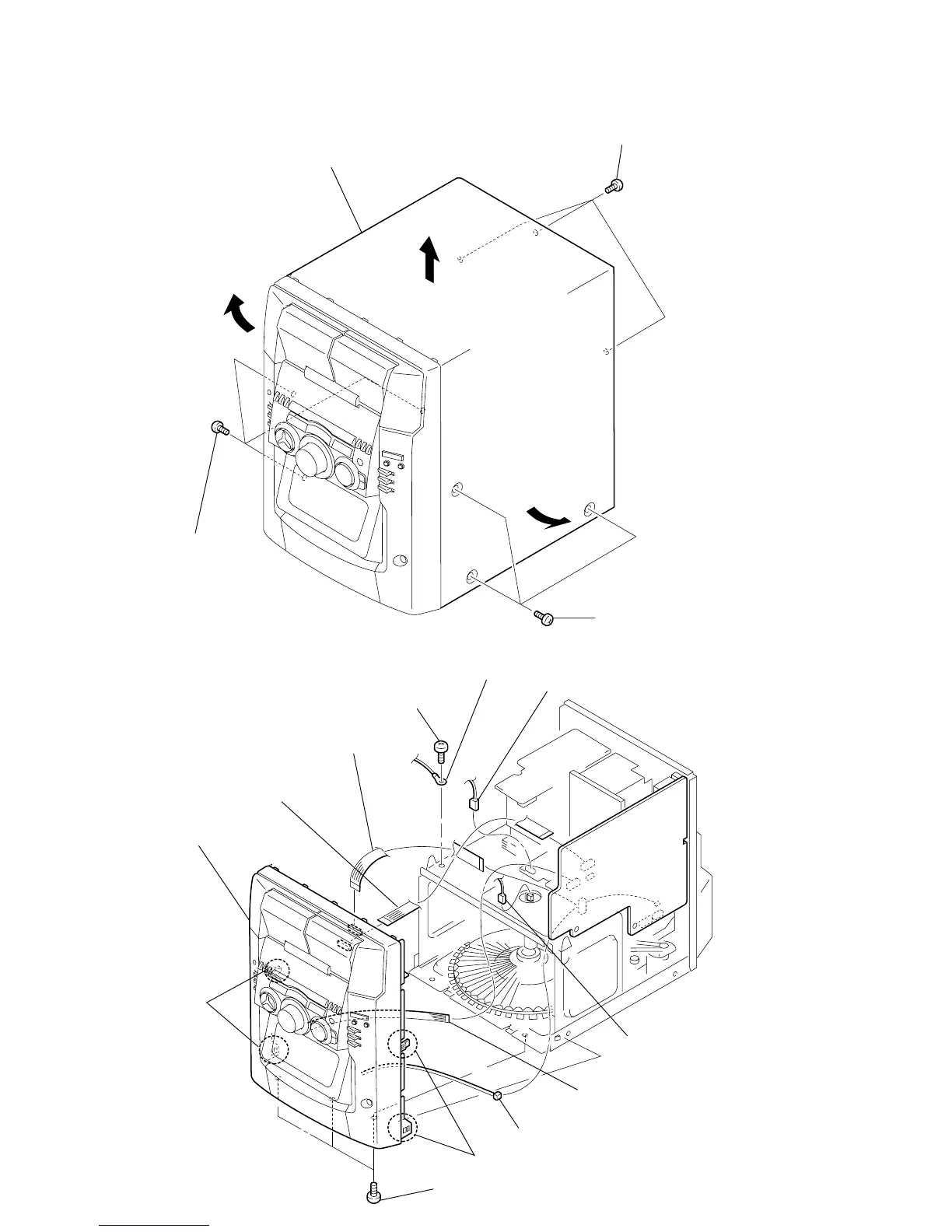

2-1. CASE
2-2. FRONT PANEL SECTION
Note : Follow the disassembly procedure in the numerical order given.
1 Three screws
(CASE3 TP2)
1 Three screws
(CASE3 TP2)
2 Three screws
(BVTP 3 × 8)
3 Case
7 Screws
(BVTT 3 × 8)
8 Lug
4 Connector(CN804)
5 Connector(CN604A
)
6 Connector(CN453)
1 Wire (flat type)
(17 core)
2 Wire (flat type)
(15 core)
0 Two claws
qa Front panel assy
0 Two claws
9 Three screws
(BVTP 3 × 8)
3 Wire (flat type) (10 core)
