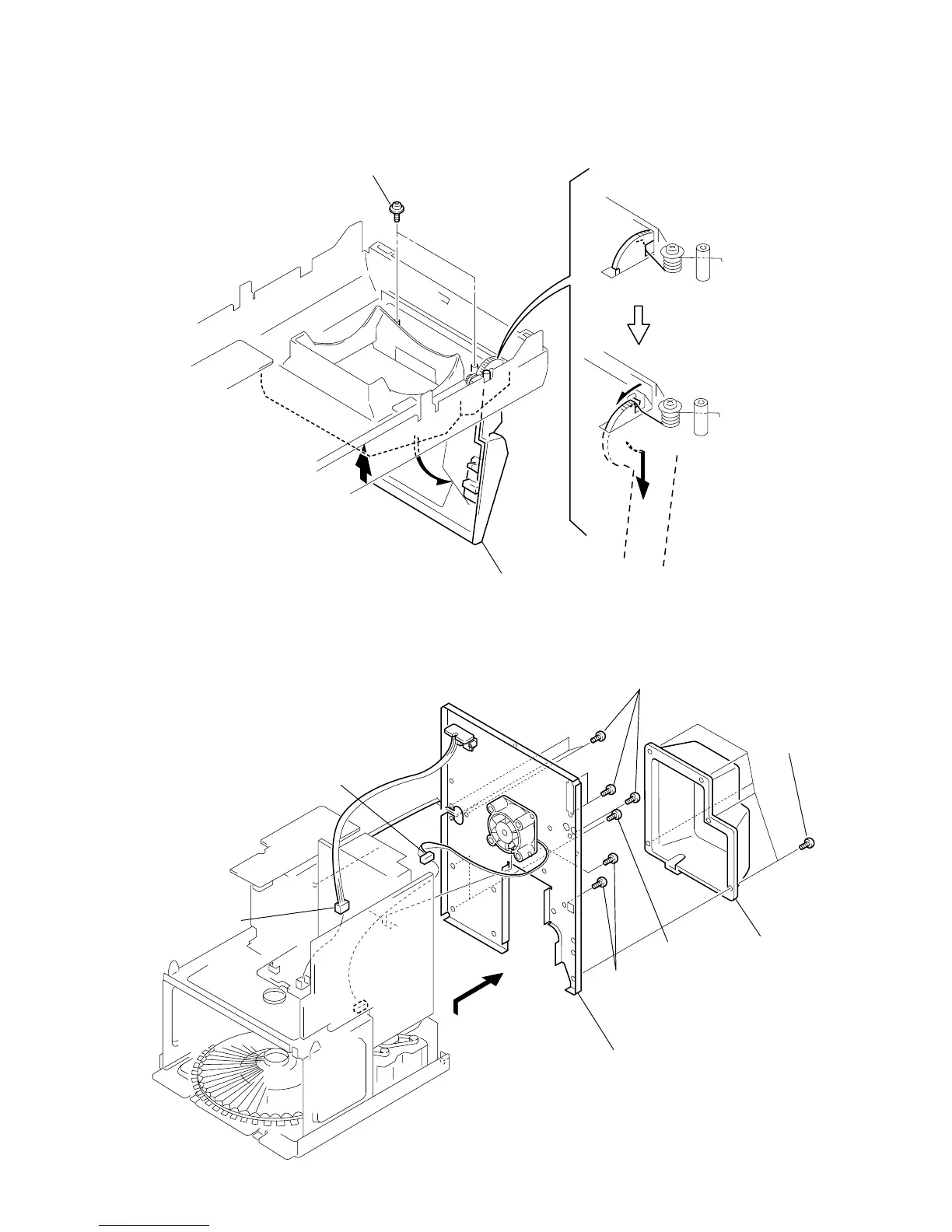

2-3. DOOR ASSY
2-4. BACK PANEL
2 Open the door ass'y
1 Two screws
(PTPWH 2.6 × 8)
A
3 Remove the door ass'
y
to direction of the
arrow A.
7 Six screws
(BVTP 3 × 8)
5 Two screws
(BVTP 3 × 8)
6 Two screws
(BVTP 3 × 8)
3 Five screws
(BVTP 3 × 8
)
4 Cover
8 Remove the back panel
to direction of the arrow.
2 Connector(CN751)
1 Connector
(CN802)
