Sony HCD-MD313 - Mechanism and Board Disassembly; CD Mechanism Deck (CDM13 C-5 BD19) Disassembly; BD (MD) Board Removal

– 10 –

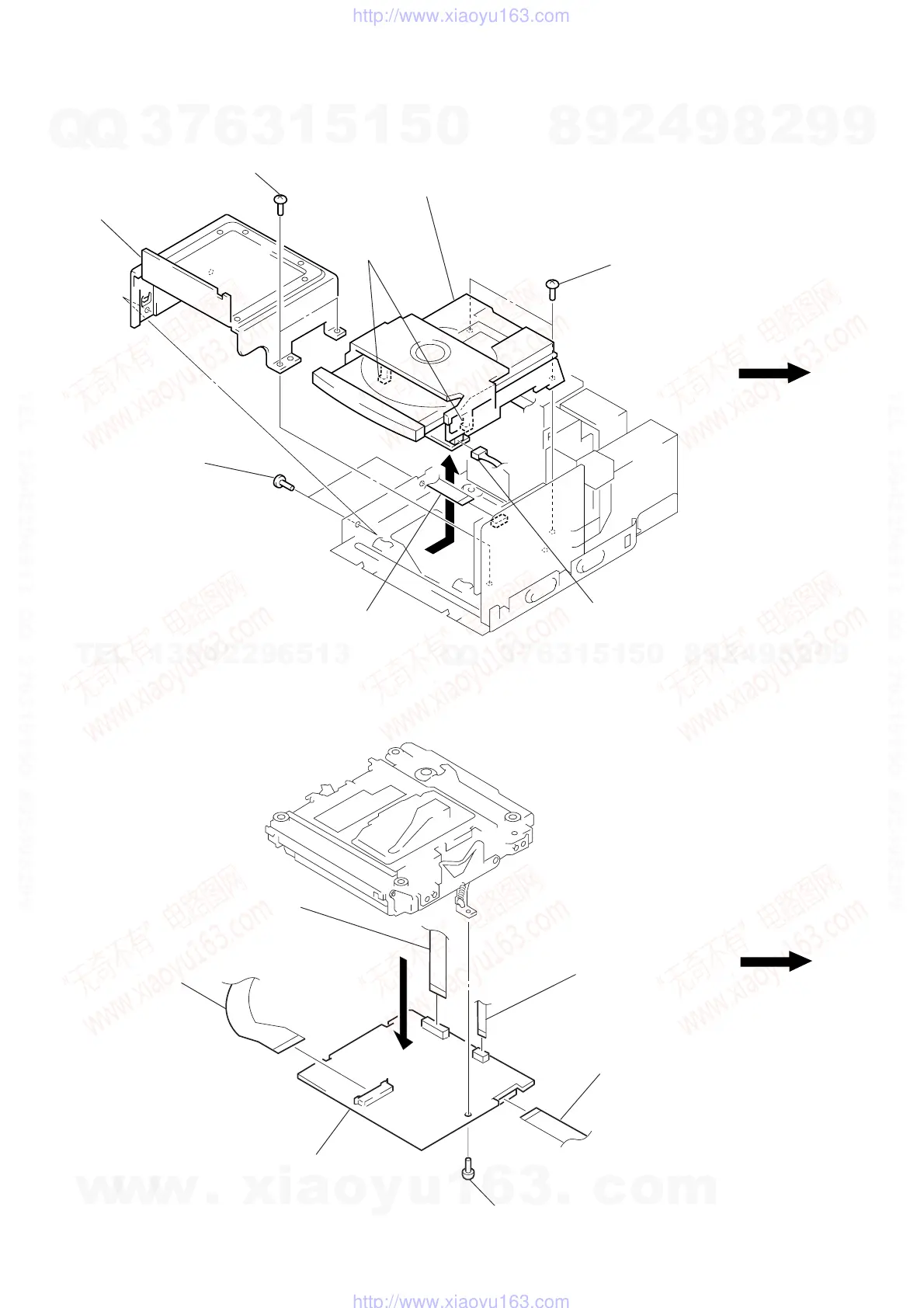

CD MECHANISM DECK (CDM13C-5BD19)
BD (MD) BOARD
4 bracket (CD)
3 two screws
(BVTP 3 × 6)
3 two screws
(BVTP 3 × 6)
1 wire (flat type) (19 core)
(CN801)
2 connector
(CN291)
5 two screws
(BVTP 3 × 8)
7 CD mechanism deck
(CDM13C-5BD19)
6 two hooks
3 wire (flat type) (14 core)
(CN106)
5 OP relay flexible board
(CN101)
6 BD (MD) board
4 screw
(BVTP 2 × 4)
1 wire (flat type) (25 core)
(CN107)
2 flexible board
(over write head)
(CN104)
