Sony HCD-MD313 - Component Disassembly; Back Panel and Jack Board Removal; MD Mechanism Deck (MDM-3 D) Disassembly

– 9 –

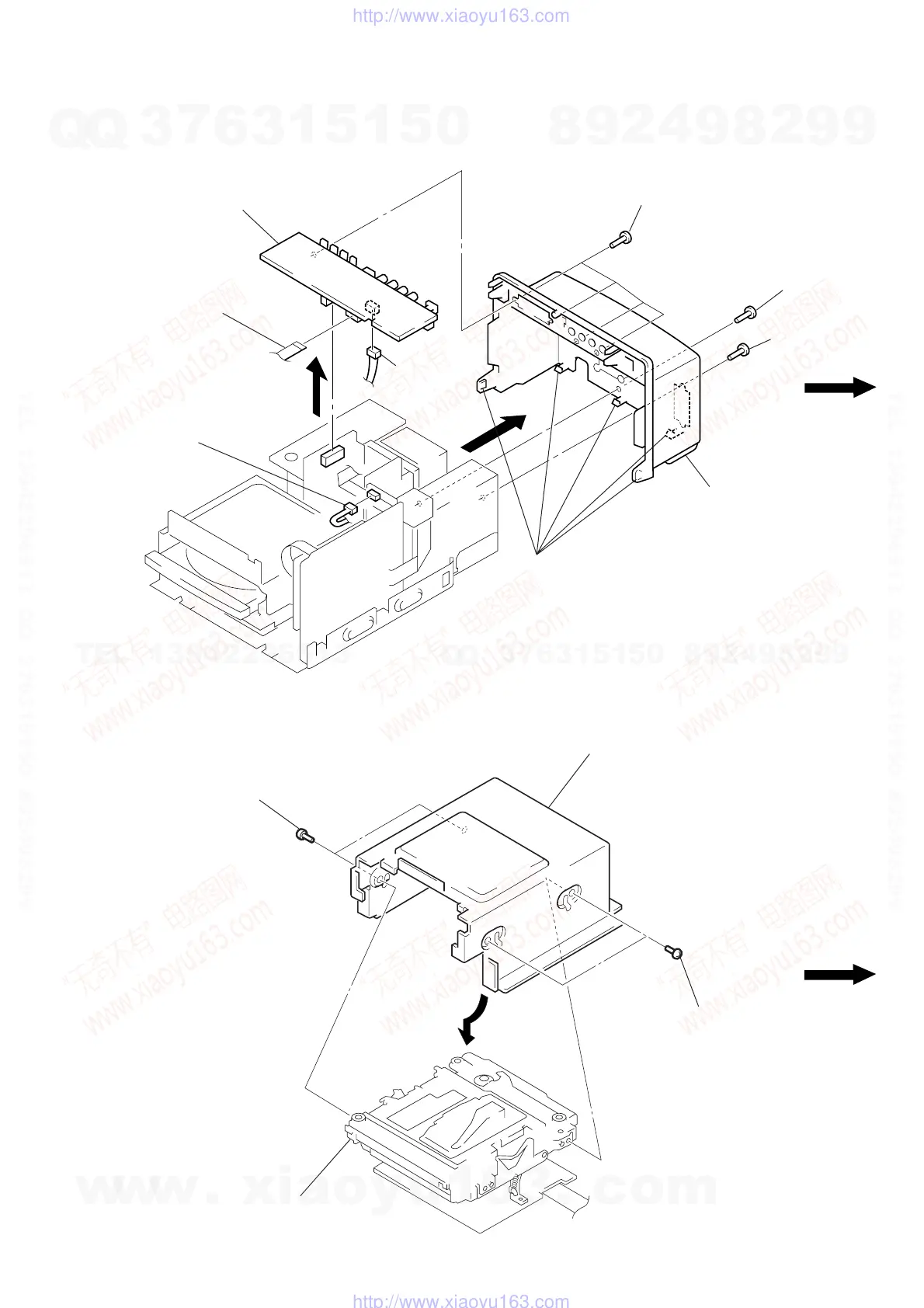

BACK PANEL, JACK BOARD
MD MECHANISM DECK (MDM-3D)
7 JACK board
6 wire (flat type) (15 core)
(CN401)
1 connector
(CN590)
8 connector
(CN402)
4 five claws
5 back panel
3 screw
(BVTP 3 × 8)
2 four screws
(BVTP 3 × 10)
1 two screws
(BVTT 2 × 3)
2 MD mechanism deck
(MDM-3D)
1 two screws
(BVTT 2 × 3)
bracket (MD)
2 screw
(BVTP 3 × 10)
