Sony HCD-MD313 - Shutter Assembly Disassembly; Shutter Assembly Component Removal

– 14 –

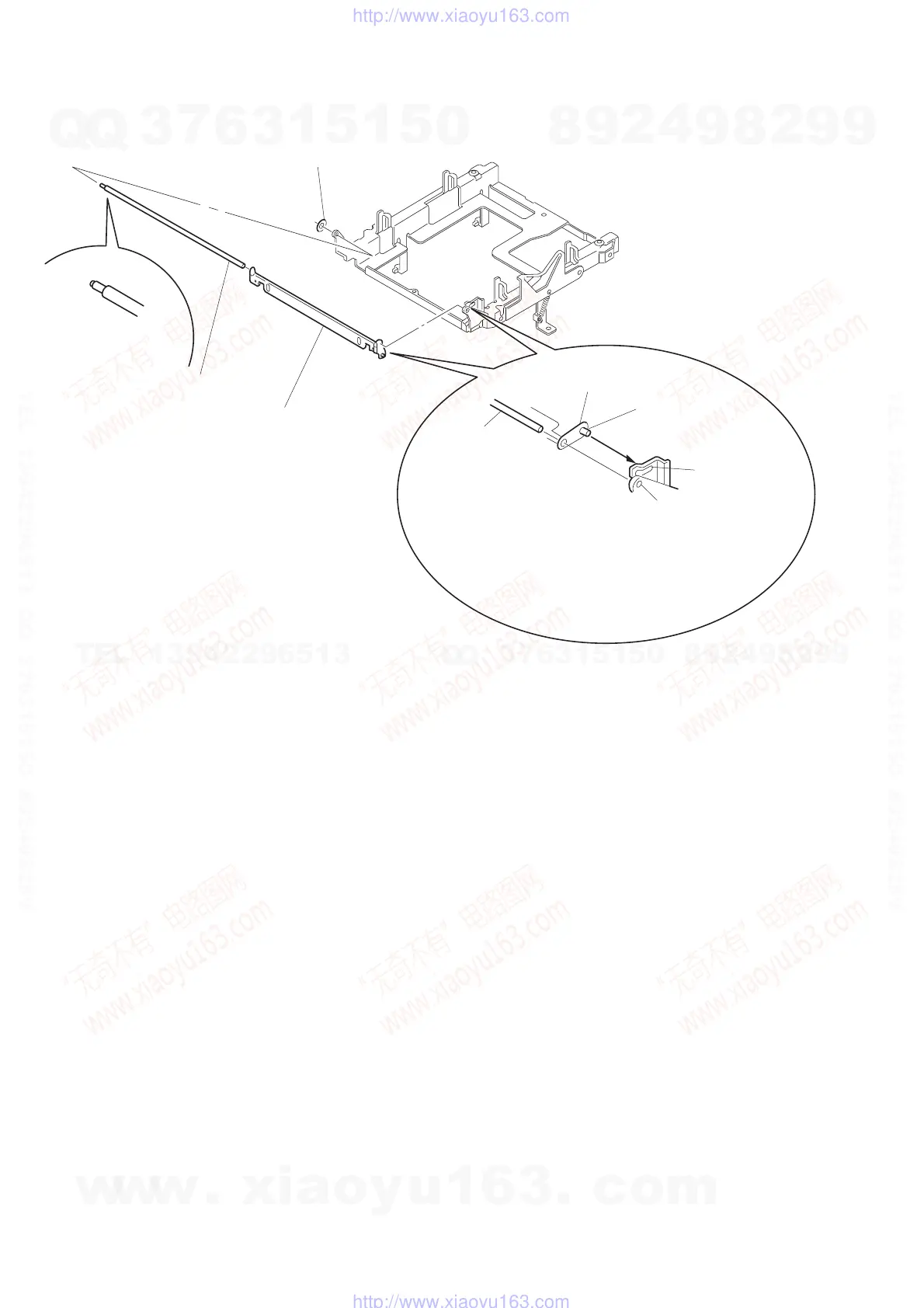

SHUTTER ASS’Y
1 stopper washer
2 shaft (shutter) A
3 shutter ass’y
shutter ass’y
shaft (shutter) B
hole B
hole A
When installing, install the shaft (shutter) A into
the hole as show in the figune before in-
stalling the shaft (shutter) B into the hole B.
shaft (shutter) A
