HCD-NE5
7
• This set can be disassembled in the order shown below.

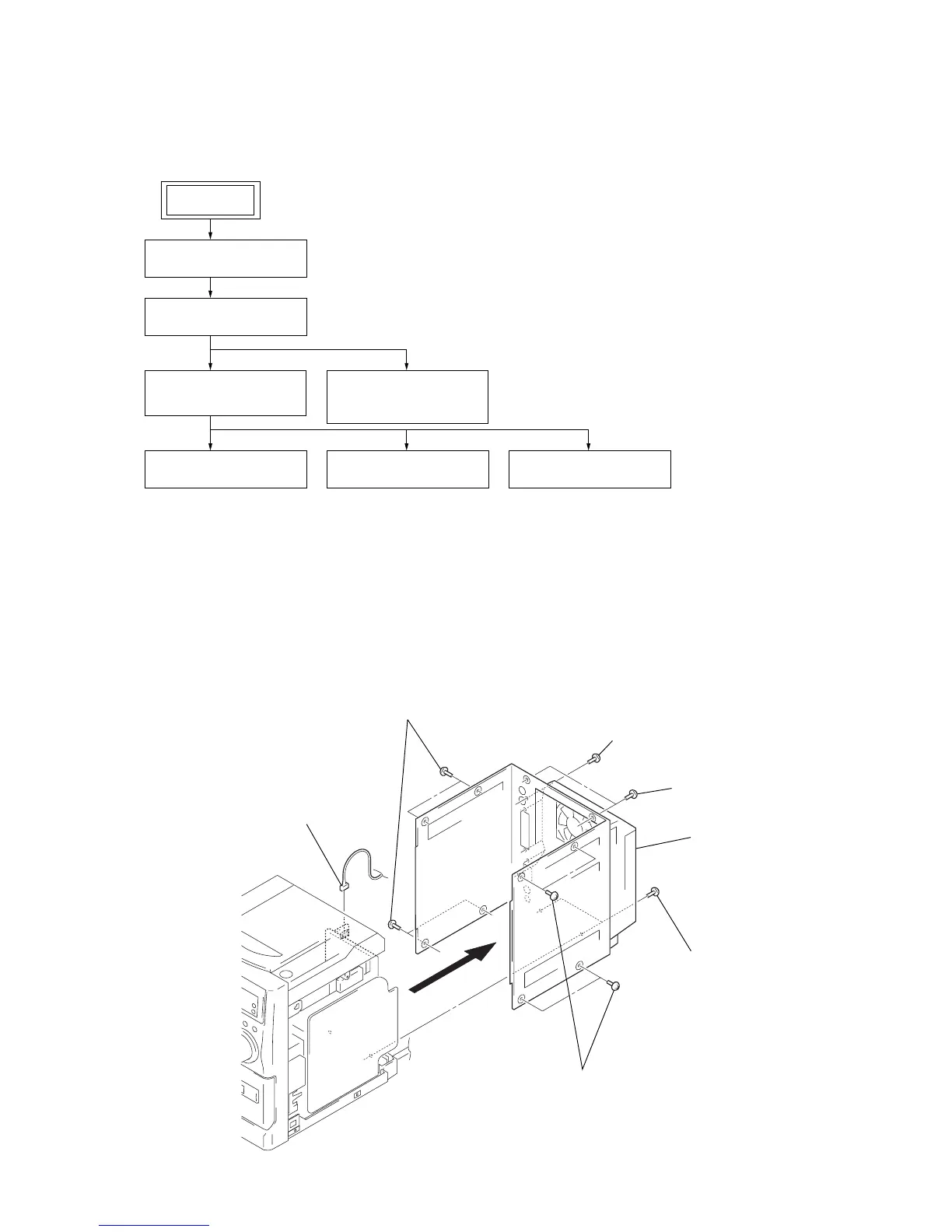

3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
3-2. REAR CABINET
(Page 7)
3-6. MECHANICAL DECK
(Page 9)
3-7. MAIN BOARD
(Page 10)
3-4. FRONT PANEL ASSY
(Page 8)
3-5. BASE UNIT
(BU-K7BD81B)
(Page 9)
3-3. TOP PANEL ASSY
(Page 8)
SET
3-8. AMP BOARD
(Page 10)
3-2. REAR CABINET
2 four screws
(BTP3
× 12)
7 connector
(CN310)
6
8
rear cabinet
5 two screws
(BVTP3
× 10)
1 four screws
(BTP3
× 12)
3 two screws
(BVTP3
× 10)
4 five screws
(BVTP3
× 10)
