HCD-RV222D/RV222DL/RV333D/RV333DL/RV555D
12

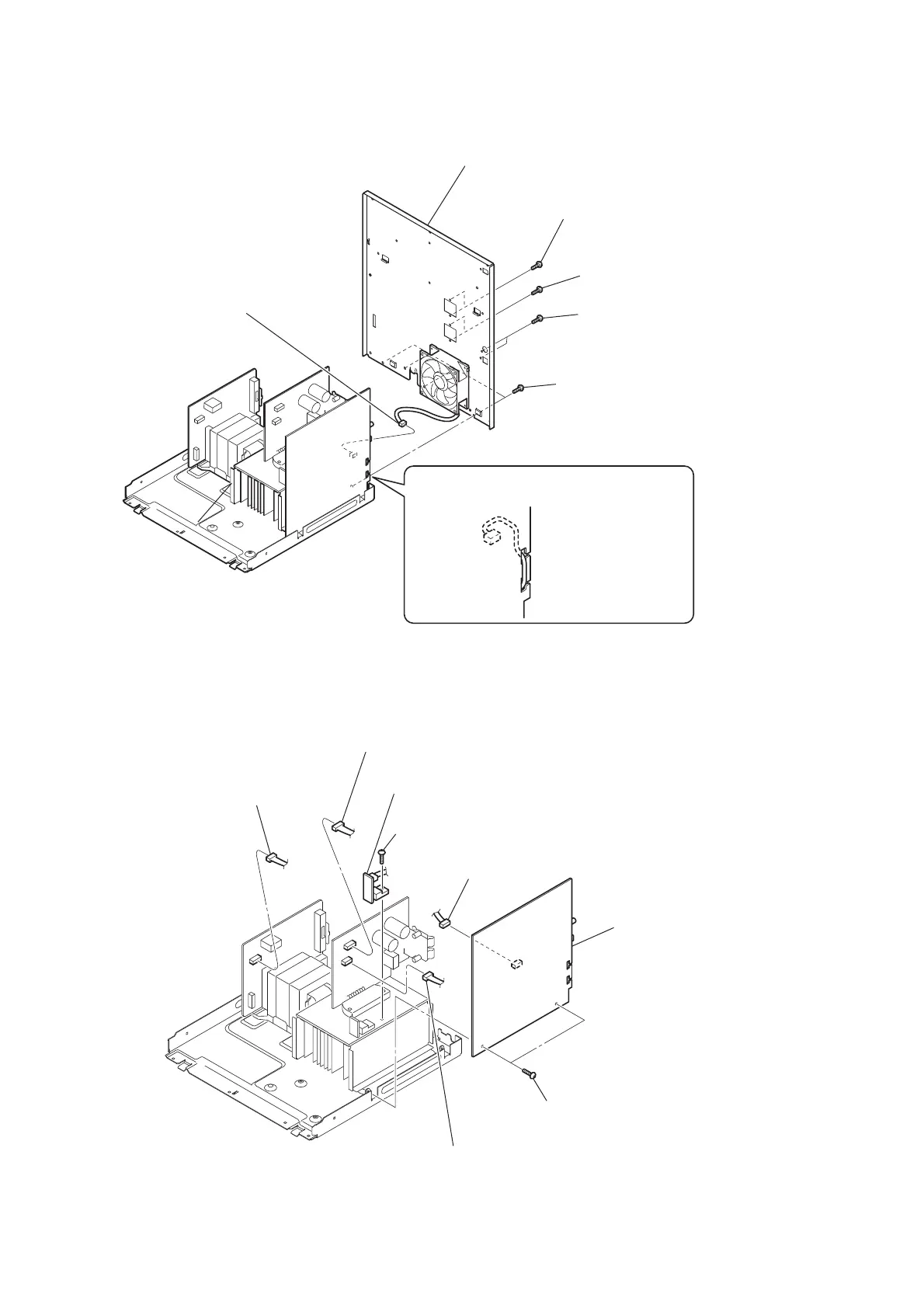

2-7. BACK PANEL SECTION
2-8. MAIN BOARD
Ver. 1.3
5 CN960 (3P)
6 back panel section
1 four screws
(+BVTP 3 u8)
2 two screws
(+BVTP 3 u8)
3 two screws
(+BVTP 3 u8)
4 two screws
(+BVTP 3 u8)
(RV333D/RV333DL/RV555D)
Arrange the wire as illustrated below in order to
prevent contact with the heat sink.
6 two screws
(+BVTP 3 u8)
4 screw
(+BVTP 3 u8)
1 CN002 (9P)
7 CN958 (3P)
8 MAIN boar
d
2 CN503 (8P) (RV222D/RV222DL/RV555D)
CN503 (9P) (RV333D/RV333DL)
3 CN501 (6P) (RV222D/RV222DL/RV555D)
CN501 (8P) (RV333D/RV333DL)
5 REG board
