Sony HCD-RX55 - SECTION 6 EXPLODED VIEWS; Cabinet Section Exploded View

SECTION 6
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
— 67 —
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
1
2
3
4
5
6
7
8
9
10
CD mechanism deck
PT302
12
not supplied
#10
#10
#10
#10
#11
#11
#3
#11
#12
#3
#11
#11
#11
#3
#14
#14
#4
#4
#3
#11
#11
#11
#11
#10
#14
#2
#3
13
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

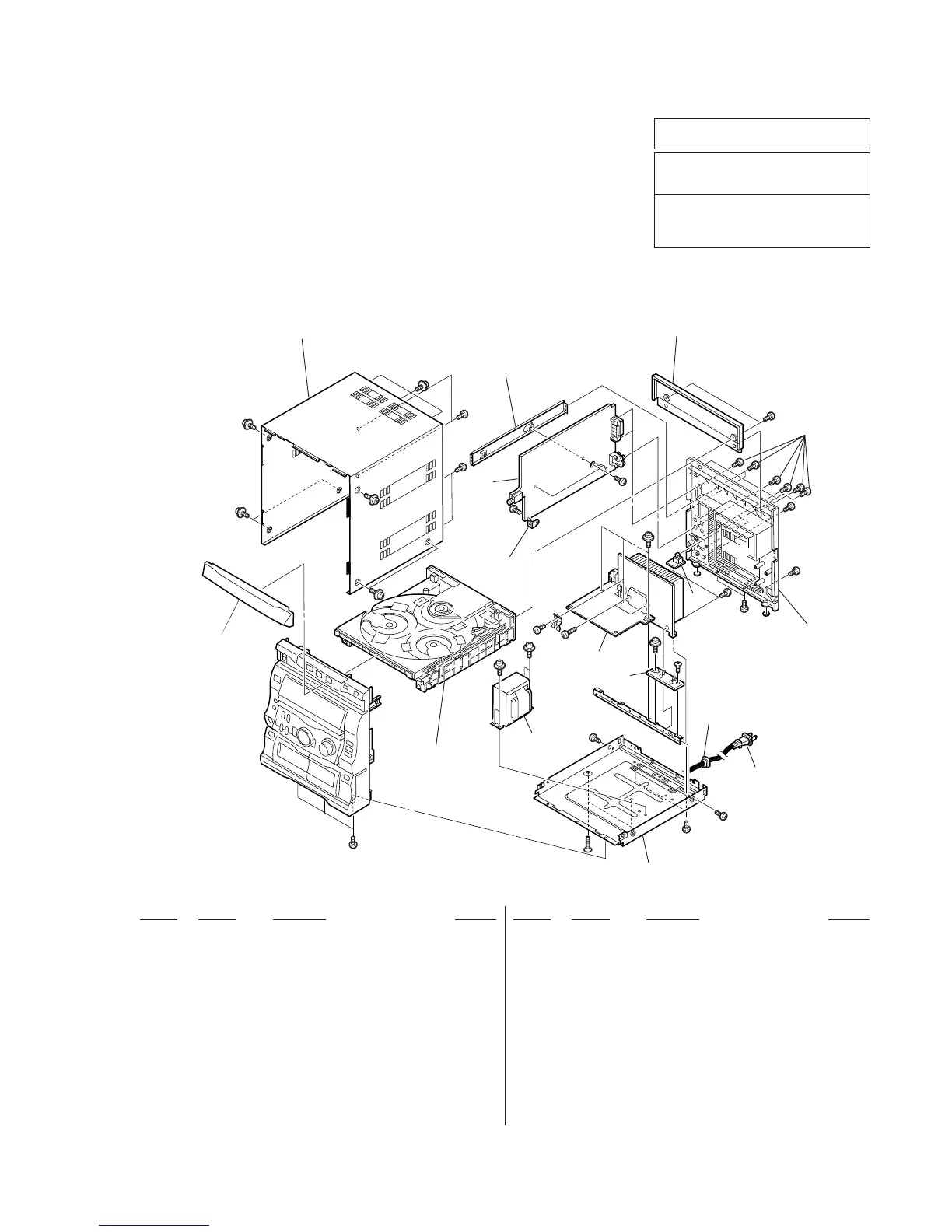

6-1. CABINET SECTION
1 4-210-584-01 WINDOW, CD
* 2 4-210-616-01 COVER (-GRX), TOP
3 4-210-579-01 HOLDER, MAIN PC BOARD
* 4 A-4405-480-A MAIN BOARD, COMPLETE (US,CND)
* 4 A-4405-482-A MAIN BOARD, COMPLETE (E,AUS,SP,MY,TW)
* 4 A-4405-483-A MAIN BOARD, COMPLETE (MX)
* 5 4-210-591-01 CABINET (A), REAR
* 6 4-210-617-01 COVER, REAR (US,CND)
* 6 4-210-618-01 COVER, REAR (E,SP,MY,TW)
* 6 4-210-619-01 COVER, REAR (AUS,MX)
* 7 A-4405-477-A AMP BOARD, COMPLETE (US,CND)
* 8 1-670-445-11 FUSE BOARD
! 9 1-551-506-99 CORD, POWER (E,MX)
! 9 1-559-583-11 CORD, POWER (US,CND)
! 9 1-696-966-11 CORD, POWER (AUS)
! 9 1-765-558-11 CORD, POWER (SP,MY,TW)
* 10 3-703-244-00 BUSHING (2104), CORD (AUS,SP,MY,TW)
10 3-703-571-11 BUSHING (S) (4516), CORD (US,CND,E,MX)
12 4-210-580-01 SPACER (SCC-20), PC BOARD
* 13 1-771-477-11 VOLSEL BOARD
! PT302 1-431-950-11 TRANSFORMER, POWER (US,CND)
! PT302 1-431-952-11 TRANSFORMER, POWER (E,AUS,SP,MY,TW)
! PT302 1-431-953-11 TRANSFORMER, POWER (MX)
• Abbreviation
CND : Canadian
AUS : Australian
MX : Mexico
AED : North European
SP : Singapore
MY : Malaysia
TW : Taiwan
AR : Argentine
G : German
