Sony HCD-RX55 - Cassette Mechanism Deck Section Exploded View

— 69 —

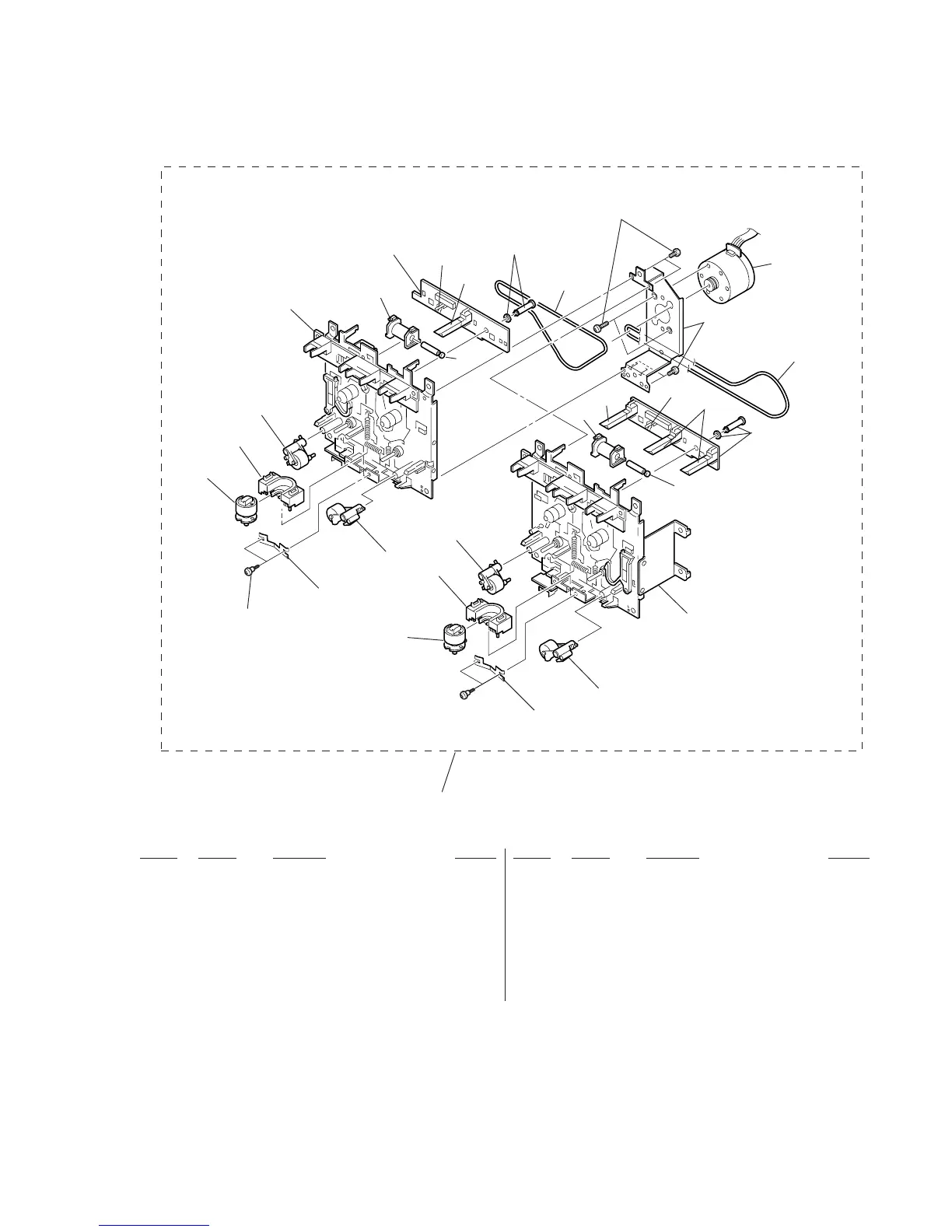

6-3. CASSETTE MECHANISM DECK SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 1-759-633-11 DECK, MECHANICAL
152 9-880-883-01 HOLDER HEAD ASSY
153 9-880-884-01 FRAME HEAD
154 9-880-885-01 SPRING AZIMUTH
155 9-880-886-01 ARM PINCH L ASSY
156 9-880-887-01 ARM PINCH R ASSY
157 9-880-889-01 COIL ASSY
158 9-880-890-01 PLUNGER
159 9-880-891-01 MODE SW
160 9-880-892-01 SWITCH LEAF
161 9-880-893-01 BELT
162 9-880-894-01 HOLDER HEAD ASSY
163 9-880-895-01 BELT
164 9-880-896-01 MOTOR ASSY
161
158
not supplied
157
160
159
151
164
not supplied
not supplied
160
154
154
156
162
153
155
not supplied
156
152
153
155
159
160
158
157
not supplied
not supplied
163
not supplied
not supplied
