Sony HCD-RX55 - CD Mechanism Deck Section 2 Exploded View

— 71 —

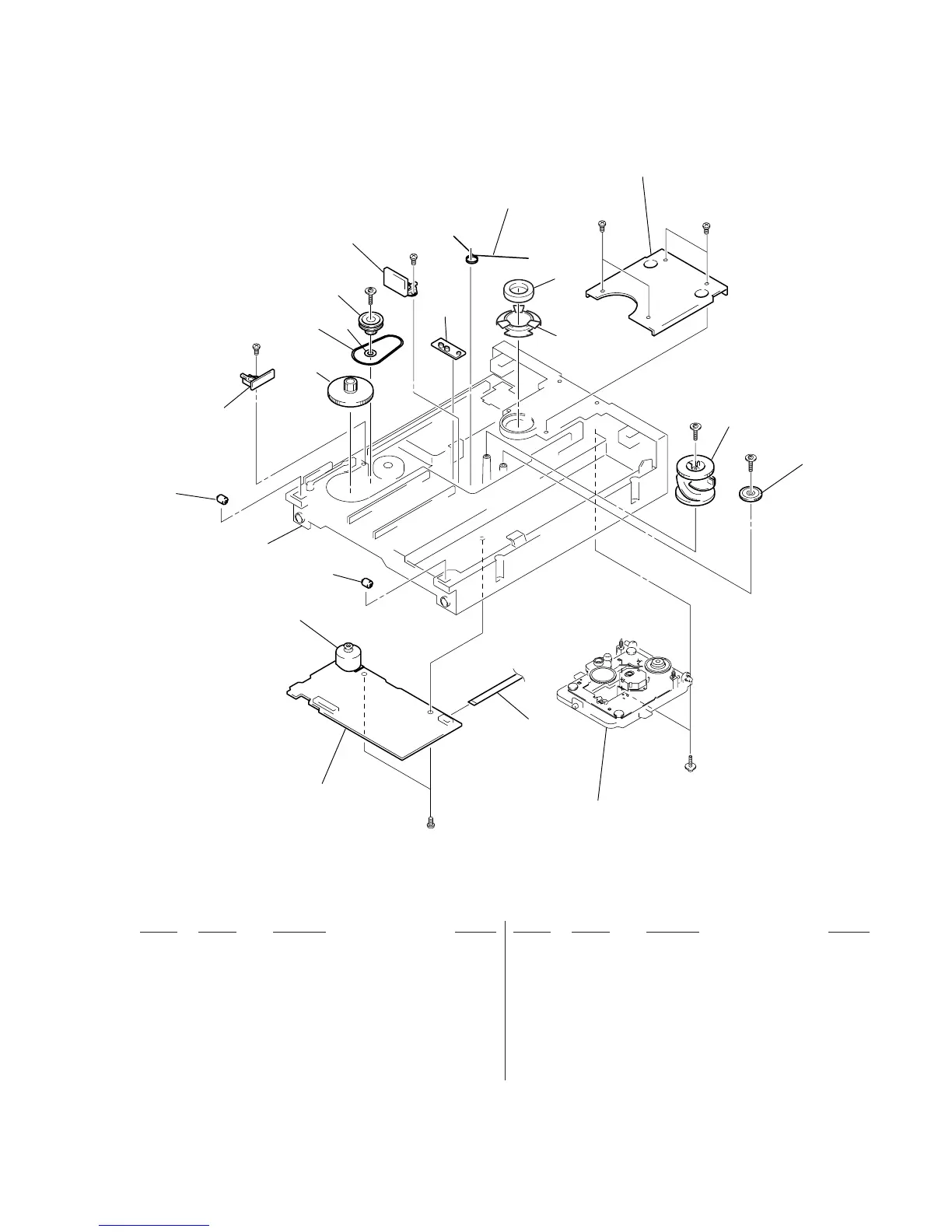

6-5. CD MECHANISM DECK SECTION 2
259
264
263
257
267
256
258
262
261
254
266
252
253
251
268
259
255
#1
#1
#1
#1
#7
not supplied
#7
#7
#10
Base unit block
#1
M104
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 1-769-856-11 WIRE (FLAT TYPE) (5 CORE)
252 4-992-190-01 UD-CAM
253 4-992-191-01 UD-GEAR
254 4-992-195-01 MAGNET
* 255 4-992-196-01 CHASSIS, MAIN
256 4-992-197-01 BELT, LOADING GEAR
257 4-992-198-01 PULLEY (B), GEAR
258 4-992-199-01 GEAR, SLIDE
259 4-992-200-01 ROLLER
261 4-992-192-01 SPRING, BRAKE CAM
262 4-992-193-01 LEVER, SW
* 263 1-670-800-11 SW (D) BOARD
* 264 1-670-799-11 SW (C) BOARD
266 4-992-194-01 CLAMP
267 4-992-201-01 WASHER, POLYETHYLENE
* 268 A-4414-924-A CD DECODER BOARD, COMPLETE
M104 X-4948-766-1 MOTOR ASSY (A) (TRAY)
