— 8 —
2
Screw
3
UD-gear
4
Screw
5
UD-Cam
8
Spring
7
Spring
6
Spring
1
Two screws
9
Base unit

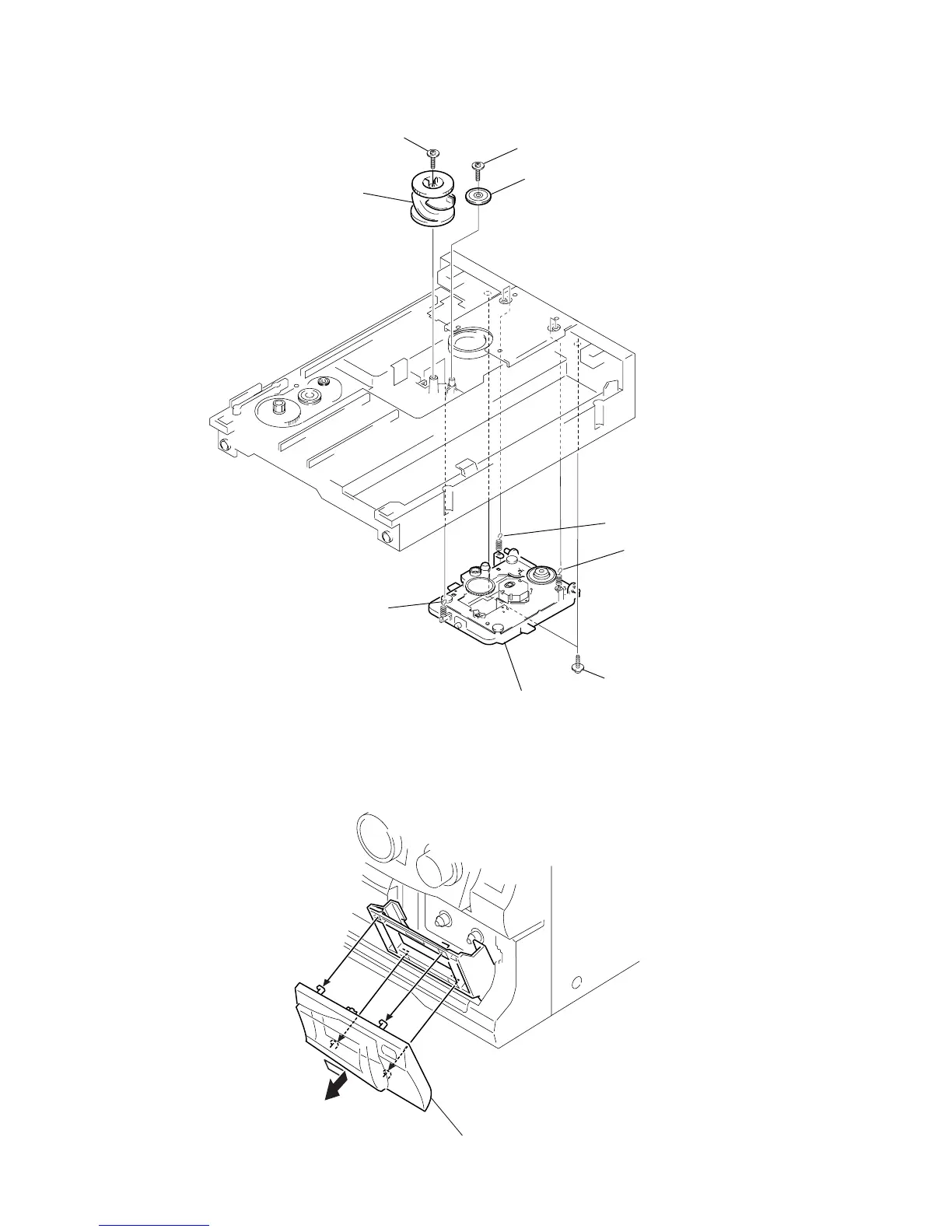

2-7. BASE UNIT
2-8. CASSETTE DOOR
Cassette door
(Note: Four claws are used.)
