HCD-GRX8/R800/RX88/RX99

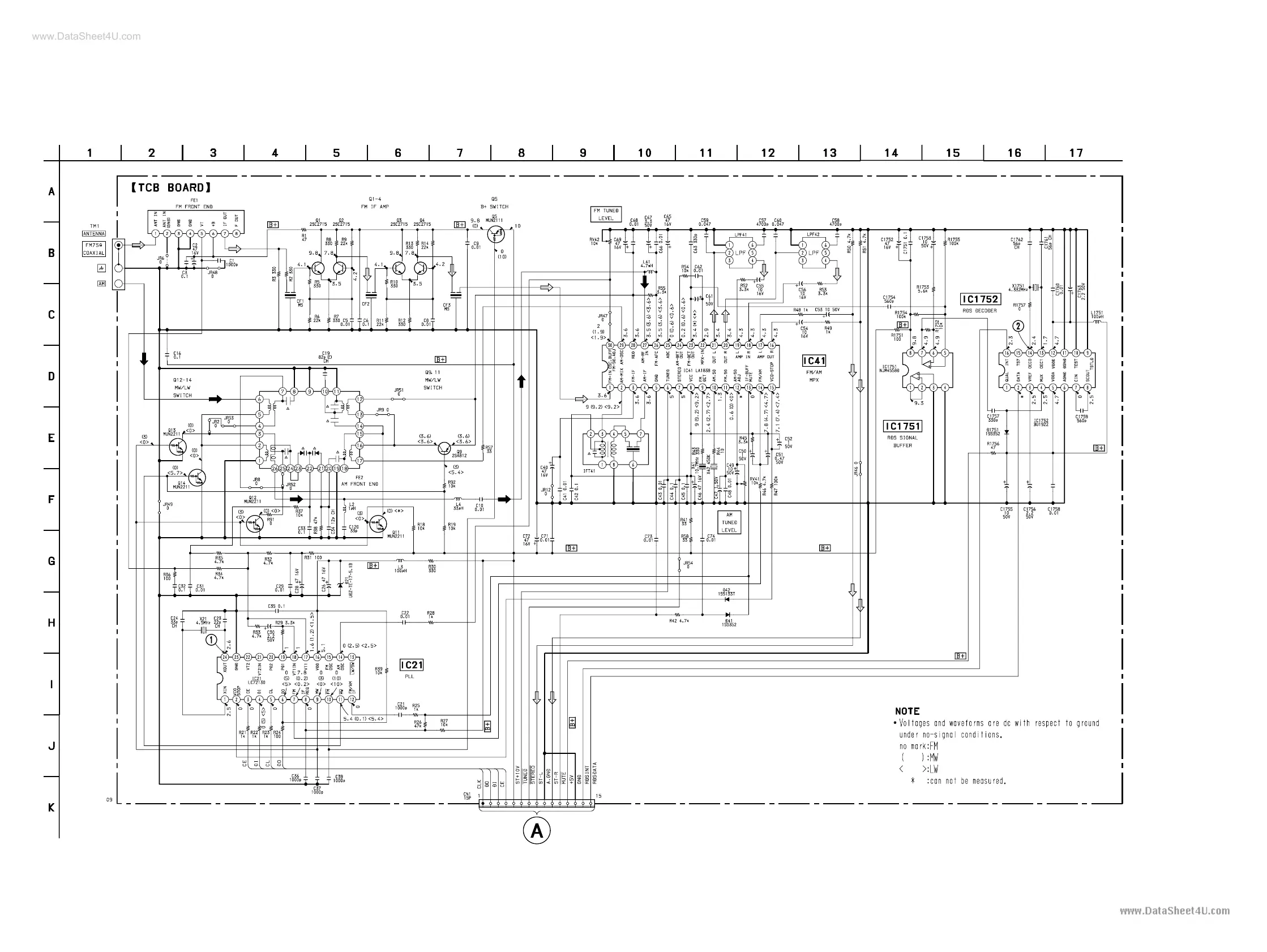

7-5. SCHEMATIC DIAGRAM – TUNER SECTION – (AEP, UK, German model)
• See page 36 for Waveforms.
• See page 83 for IC Block Diagrams.
(Page 53)
