Sony HCD-RX88 - CD Mechanism Deck Section-2 (CDM38 L-5 BD29 AL)

– 103 –

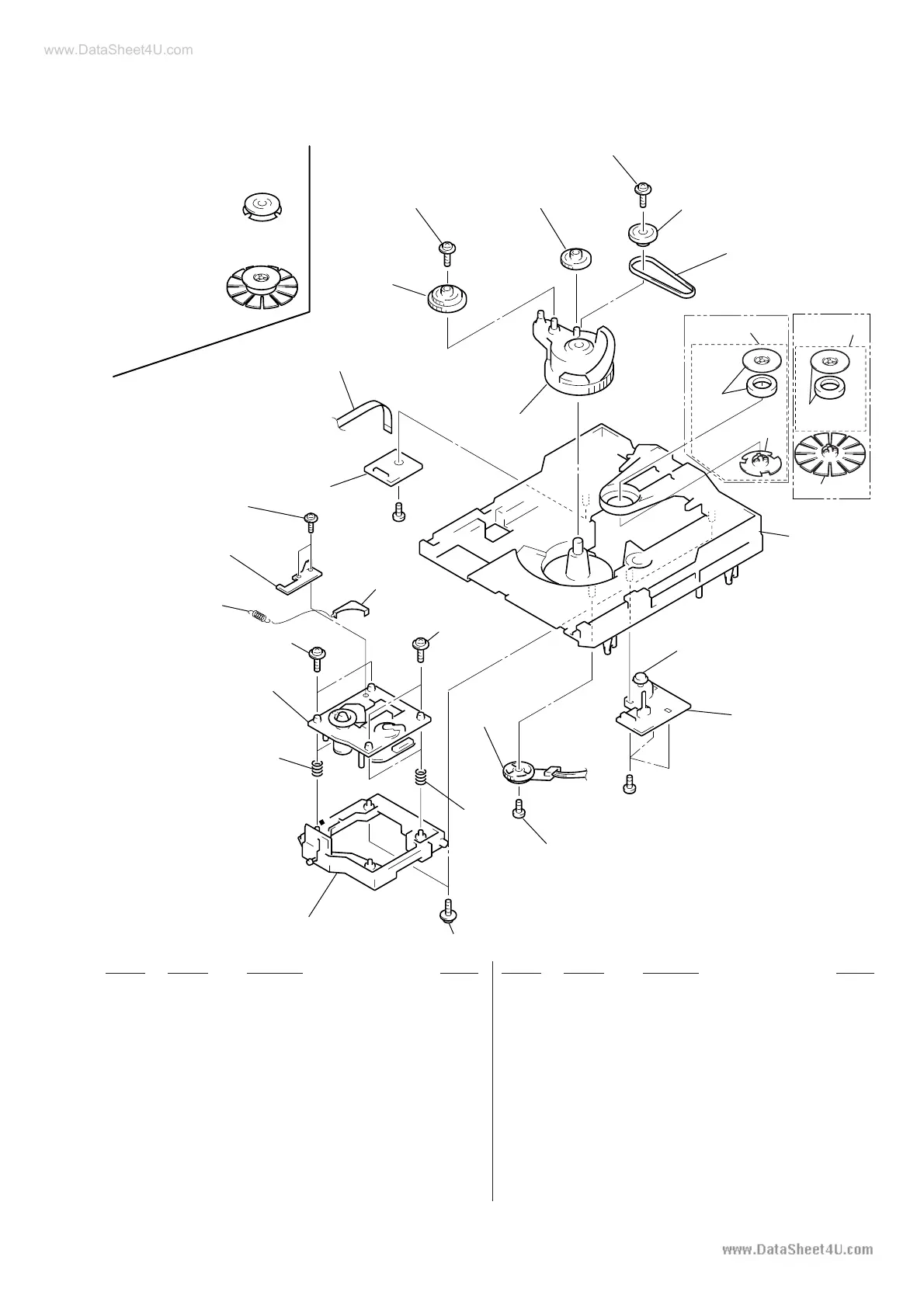

8-5. CD MECHANISM DECK SECTION-2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 4-917-583-71 BRACKET, YOKE
252 4-977-954-01 PULLEY (SL)
253 4-977-953-01 GEAR (SL-A)
254 4-977-955-01 GEAR (SL-B)
255 4-977-942-01 BELT (SL) (1.4)
256 X-4946-667-1 CAM ASSY, BU
257 1-452-879-11 MAGNET (CDM38L-5BD29AL)
257 1-452-925-21 MAGNET ASSY (CDM38LH-5BD29AL)
258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
* 259 1-658-575-11 CONNECTOR BOARD
* 260 X-4946-668-1 CHASSIS (CDM) ASSY
261 4-985-672-01 SCREW (+PTPWH M2.6X6), FLOATING
* 262 1-658-578-11 MOTOR (SLIDE) BOARD
263 4-982-447-01 SPRING (BU), COMPRESSION
264 4-951-620-41 SCREW (2.6), +BVTP
* 265 X-4946-666-1 HOLDER (BU) ASSY
266 4-989-494-01 SCREW (SLIDER), STEP
267 4-989-492-21 SLIDER (38)
268 4-989-819-02 SPRING, TENSION
269 4-989-491-21 COVER, LENS
270 4-933-142-11 PULLEY (L), PRESS (CDM38LH-5BD29AL)
M801 A-4672-004-A MOTOR ASSY (SLIDE)
S811 1-473-335-11 ENCODER, ROTARY (BU, TRAY ADDRESS DET)
CDM38L-5BD29AL
CDM38LH-5BD29AL
()
251
251
251
252
253
254
255
257
257
270
256
258
259
260
261
261
BU-5BD29AL
#2
#2
S811
M801
not
supplied
not supplied
not
supplied
262
263
264
265
263
266
269
268
267
CDM38L
-5BD29AL
CDM38LH
-5BD29AL
HOW TO DISCRIMINATE
(MAGNET Ref.No.257,270)
FOR CDM38L
-5BD29AL
FOR CDM38LH
-5BD29AL
