Sony HCD-RX88 - Base Unit Section (BU-5 BD29 AL)

– 104 –

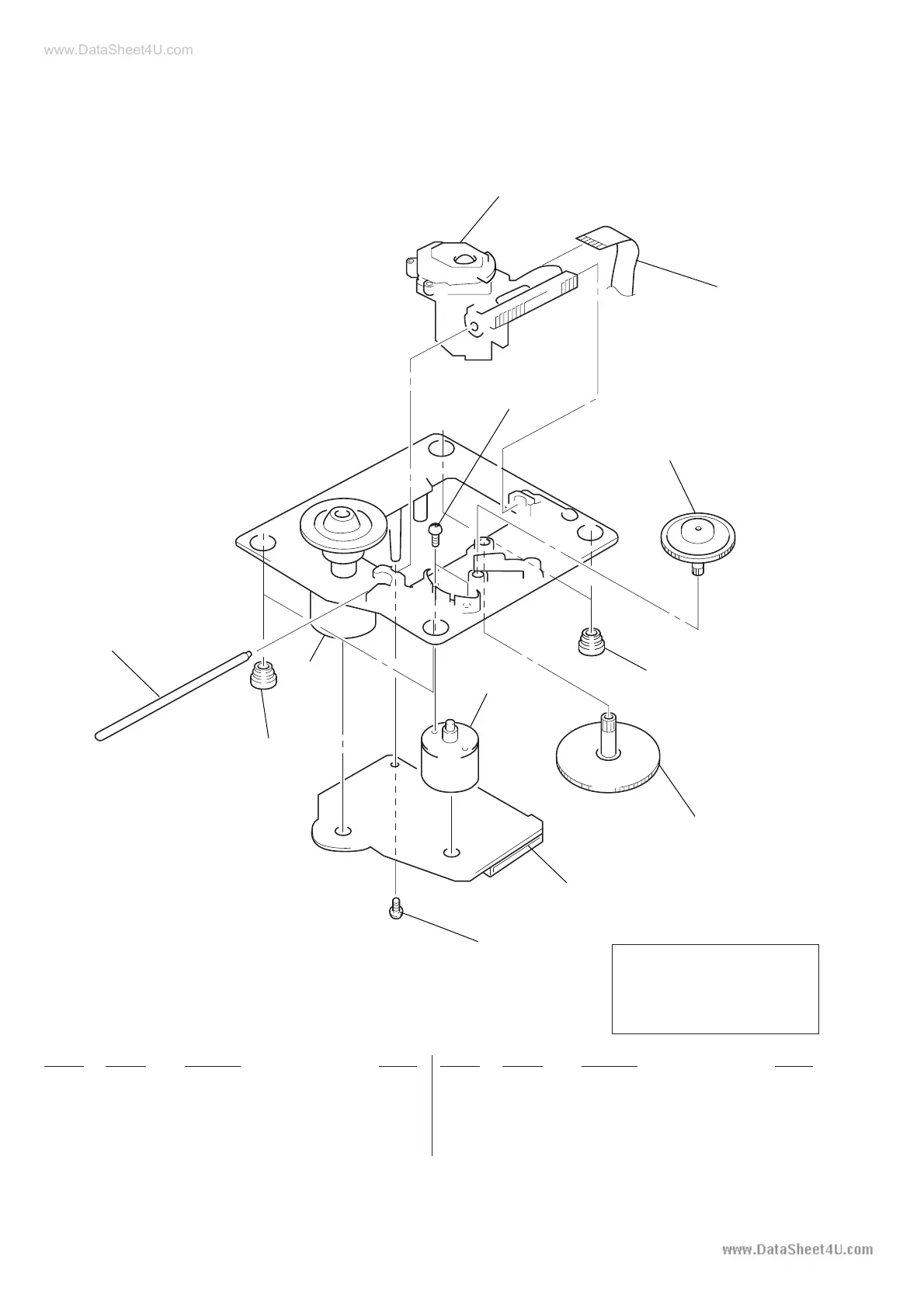

8-6. BASE UNIT SECTION (BU-5BD29AL)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
! 301 8-820-020-02 OPTICAL PICK-UP BLOCK KSS-213D/Q-NP
302 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
303 4-912-567-21 GEAR (M)
304 4-951-940-01 INSULATOR (BU)
305 4-917-565-01 SHAFT, SLED
306 4-917-564-01 GEAR (P), FLATNESS
* 307 A-4699-522-A BD BOARD, COMPLETE
308 4-951-620-01 SCREW (2.6X8), +BVTP
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.
#9
M102
M101
301
302
303
304
305
304
308
307
306
