52
HCD-SPZ90DAB
1
front panel section
CD section
not supplied
MAIN board
#1
#2
10
8
2
3
6
7
8
6
9
8

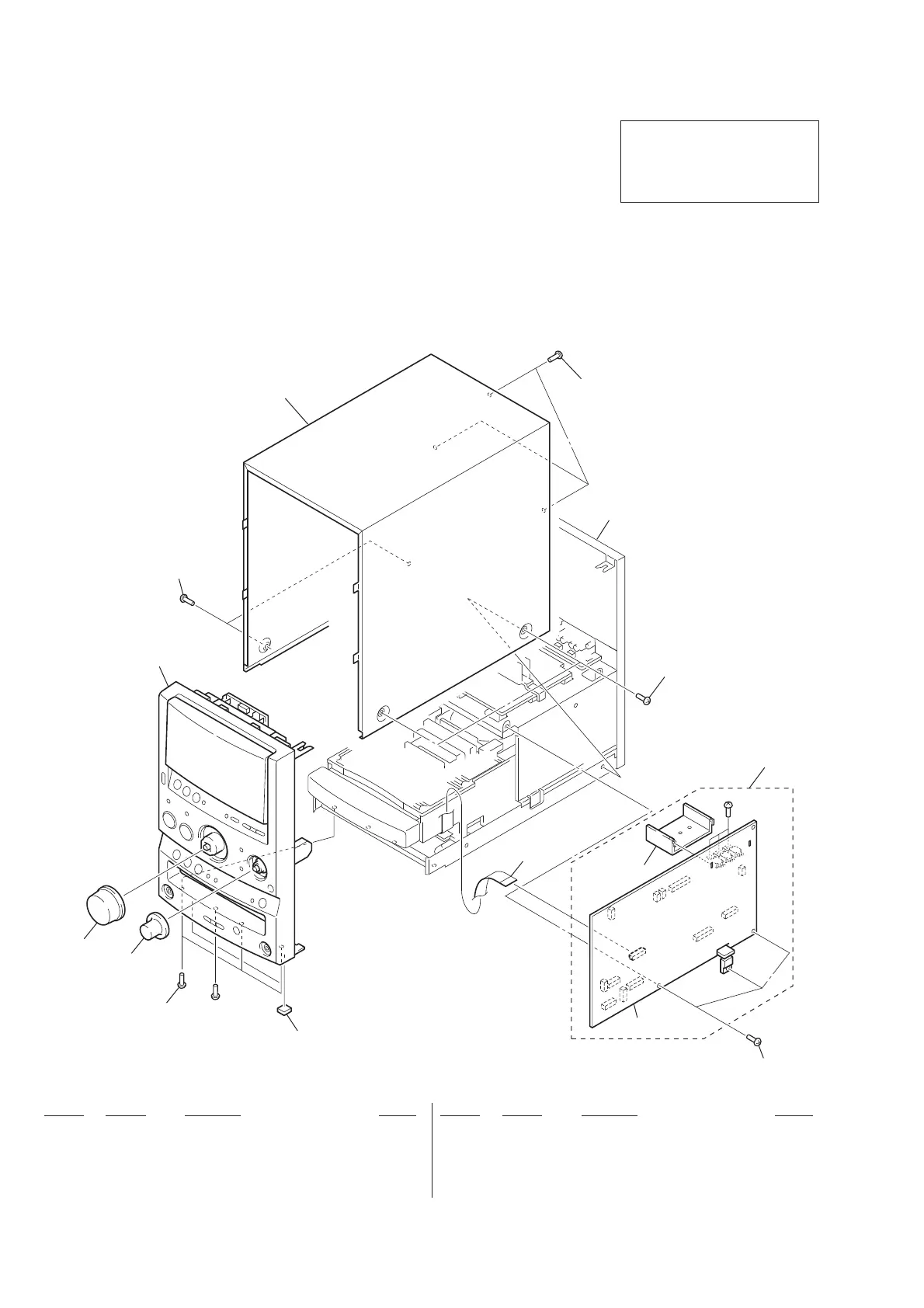

SECTION 8
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 2-681-452-01 FOOT (CUSHION)
2 2-659-060-11 KNOB (JOG)
3 2-659-059-01 KNOB (VOL)
6 3-363-099-11 SCREW (CASE 3 TP2)
7 2-659-063-02 CASE
8 3-252-829-01 SCREW (B3), (+) BV TAPPING
9 A-1186-664-A MAIN BOARD, COMPLETE
10 1-831-938-21 CABLE, FLEXIBLE FLAT (13 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
8-1. OVERALL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
To Next Page
