Sony HCD-SPZ90DAB - POWER SECTION

56
HCD-SPZ90DAB
203
205
207
208
203
204
206
214
211
210
209
203
203
203
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
not supplied
POWER board
F1
not supplied
(ANTENNA board)
212
216
202
217
not supplied
203
203
203
#1
201

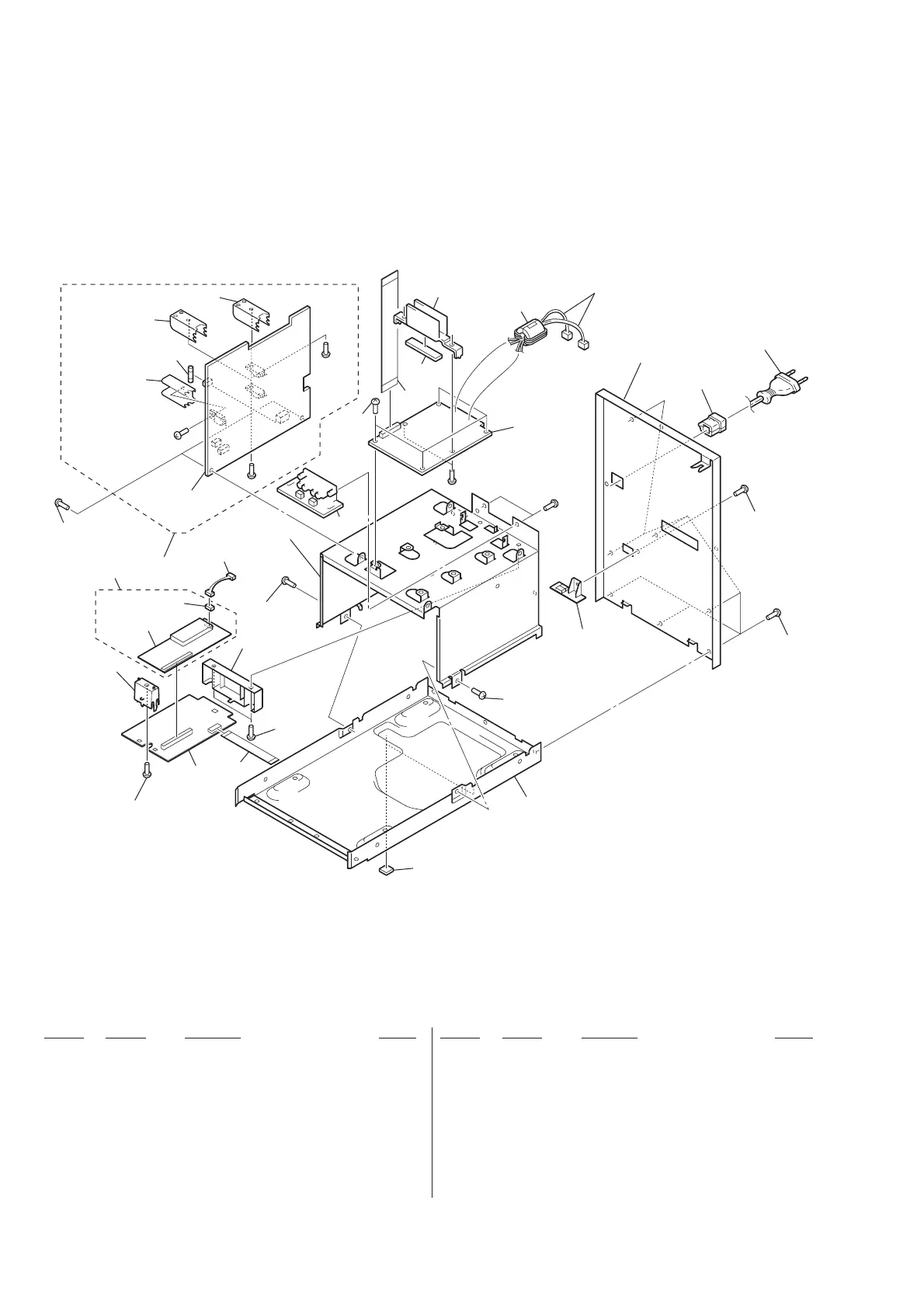

8-5. POWER SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 1-831-928-21 CABLE, FLEXIBLE FLAT (11 CORE)
202 1-778-467-11 PIN CONNECTOR (PC BOARD)
203 3-252-829-01 SCREW (B3), (+) BV TAPPING
204 A-1166-886-A SP BOARD, COMPLETE
205 A-1167-006-A POWER BOARD, COMPLETE
206 A-1167-008-A AMP BOARD, COMPLETE
207 2-514-691-01 SHEET, RADIATION
208 1-831-951-21 CABLE, FLEXIBLE FLAT (19 CORE)
0209 1-769-744-81 CORD, POWER
210 3-703-244-00 BUSHING (2104), CORD
211 2-679-960-01 PANEL, BACK
212 4-233-372-02 FOOT (FELT)
214 1-400-932-11 FILTER, CLAMP
216 A-1194-710-A DAB MODULE ASSY
217 A-1186-698-A DAB BOARD, COMPLETE
0 F1 1-576-232-51 FUSE (H.B.C) (5A/250V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
