Sony HCD-SPZ90DAB - MAIN BOARD; BASE UNIT (BU-K6 BD83 S-WOD ASSY); BELT (DLM3 A)

HCD-SPZ90DAB
8

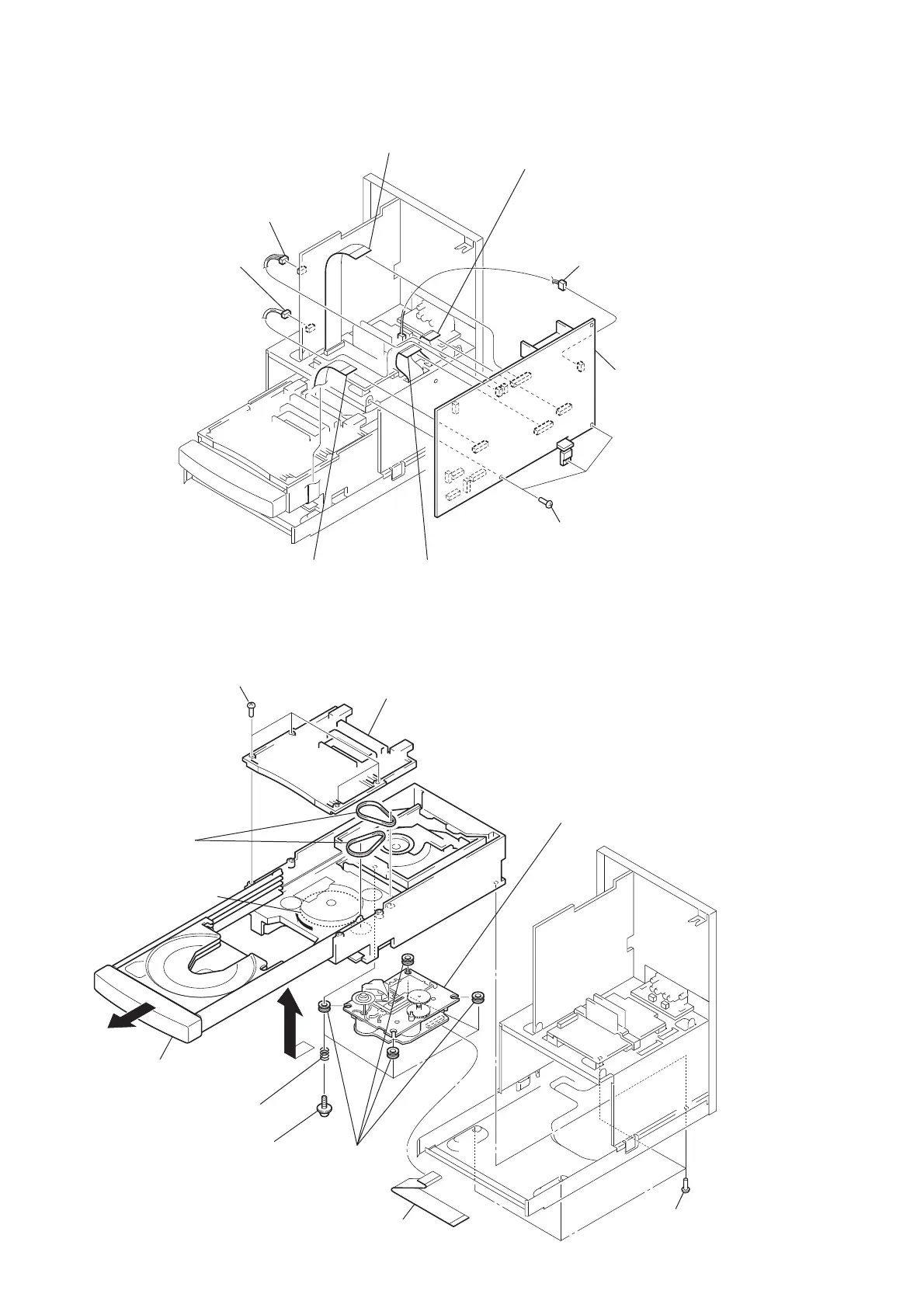

3-5. MAIN BOARD
3-6. BASE UNIT (BU-K6BD83S-WOD ASSY)/
BELT (DLM3A)
8 three screws
(B3)
5 connector
(CN1203)
3 flexible flat cable (19 core)
(CN1302)
6 flexible flat cable (13 core)
(CN1308)
4 flexible flat cable (11 core)
(CN1310)
2 connector
(CN32)
1 connector
(CN604)
9 MAIN boar
d
7 flexible flat cable (23 core)
(CN1309)
8 four screws
9 plate cam
qa Slide the tray.
1 four screws
(BVTP3
× 8
)
0 Rotate the gear.
qs two belts
(DLM3A)
4 four coil springs
(insulator)
2
7 base unit
(BU-K6BD83S-WOD assy)
Note: Even if base unit is not removed,
two belts can remove.
3 four floating screws
(PTPWHM 2.6)
5 four insulators
6 flexible flat cable
