Sony HCD-VM330AV - Back Panel, DC Fan (M391); MAIN AMP Board, POWER Board, VOL SEL Board

HCD-VM330AV
10

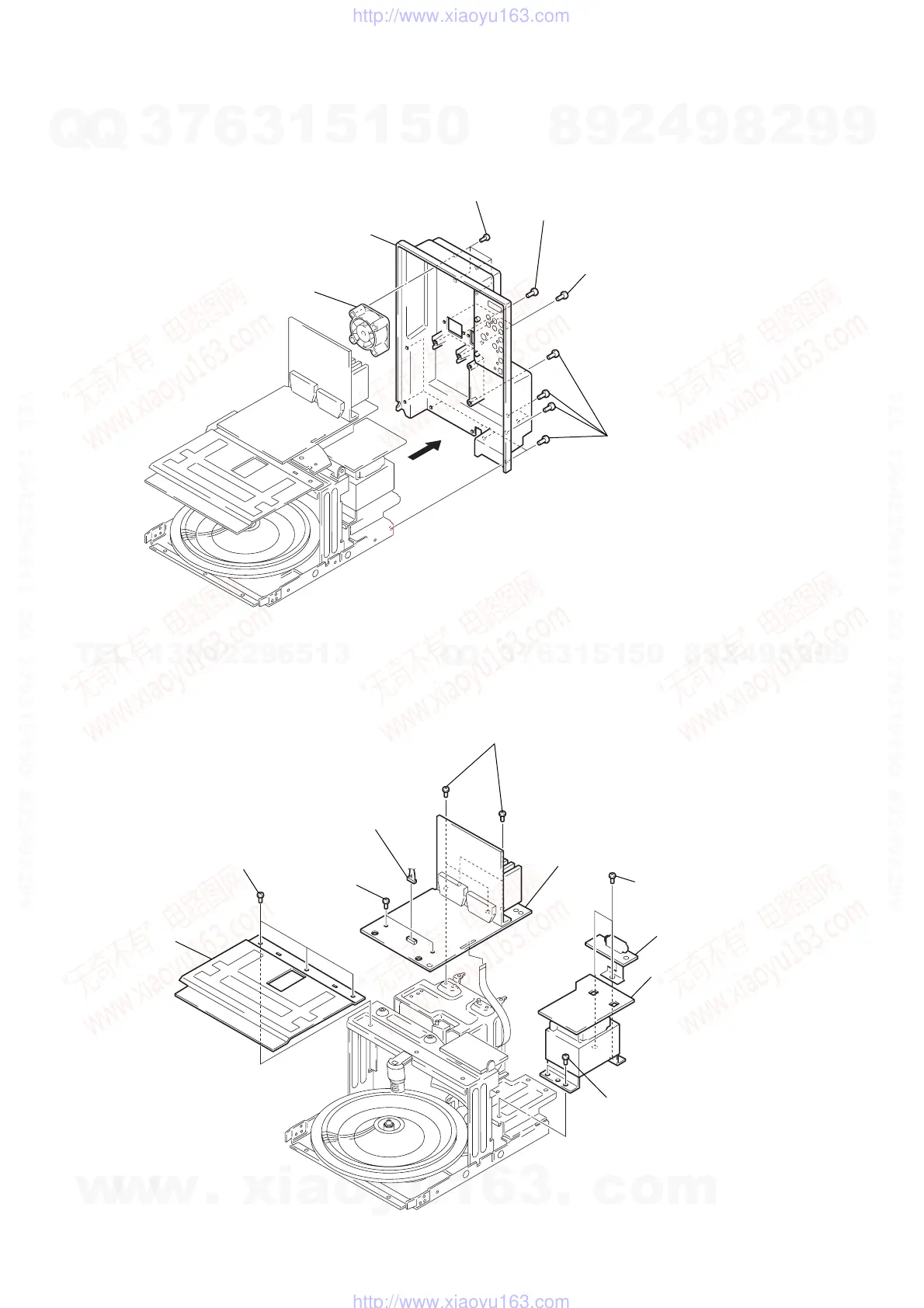

3-7. MAIN AMP BOARD, POWER BOARD, VOL SEL BOARD
3-6. BACK PANEL, DC FAN (M391)
5 back panel
1 two screws
(BVTP3
× 10)
1 two screws
(BVTP3
× 10)
1 thirteen screw
s
(BVTP3 × 10)
3 four screws
(BVTP3
× 10)
4 DC fan (M391)
2
5 center bracket
4 three screws
(BVTP3
× 8)
2 two screws
(BVTP3
× 8)
1 connector
(CN502)
3 MAIN AMP board
8 POWER board
7 VOL SEL board
6 two screws
(BVTP4
× 8)
6 two screws
(BVTP4
× 8)
2 four screws
(BVTP3
× 8)
