HCD-VM330AV
3737

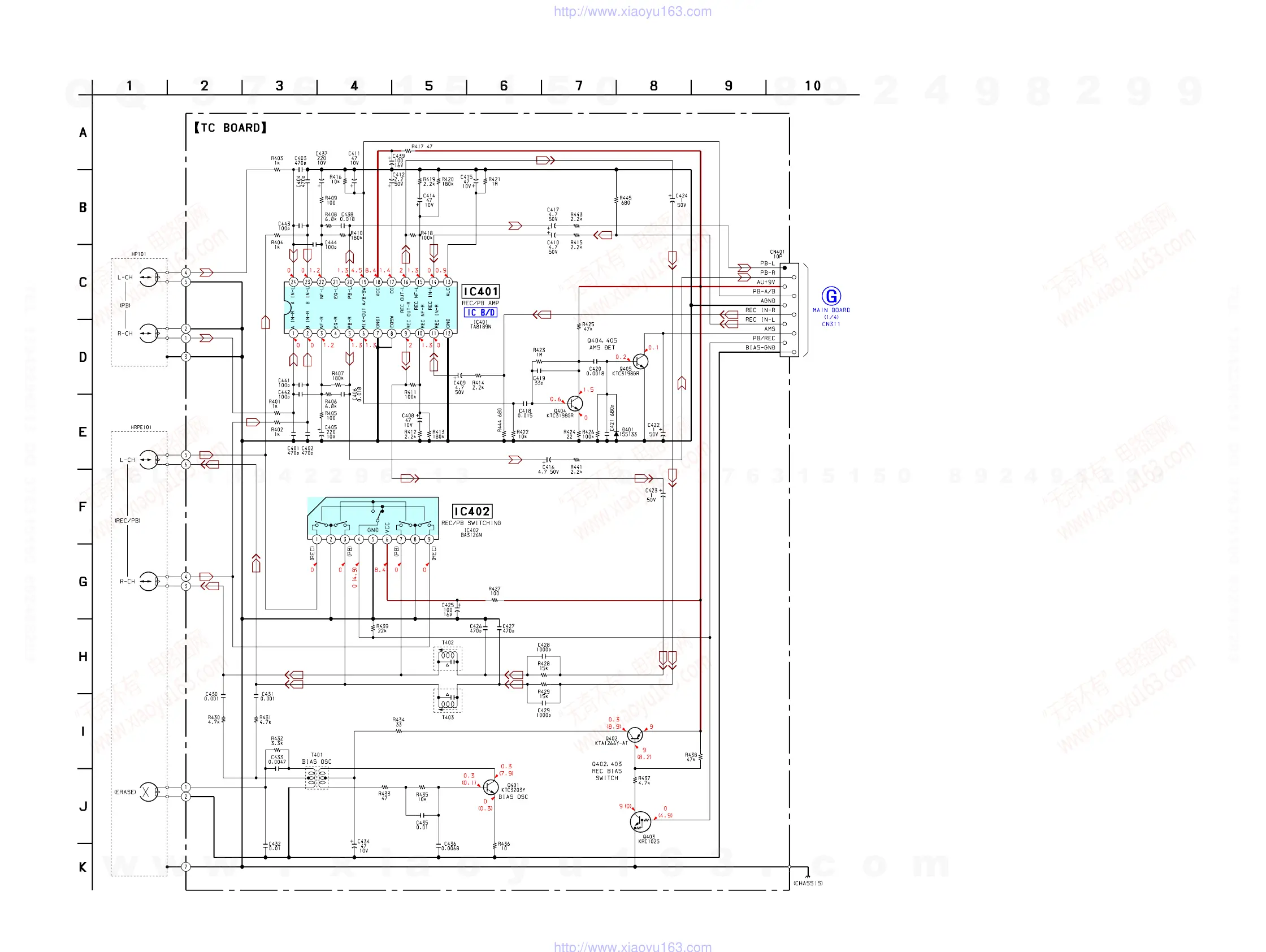

7-17. SCHEMATIC DIAGRAM – TC Section –• See page 52 for IC Block Diagram.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : TAPE PLAY
( ) : REC
