5
HCD-VM330AV
SECTION 2
GENERAL
This section is extracted from
instruction manual.
4

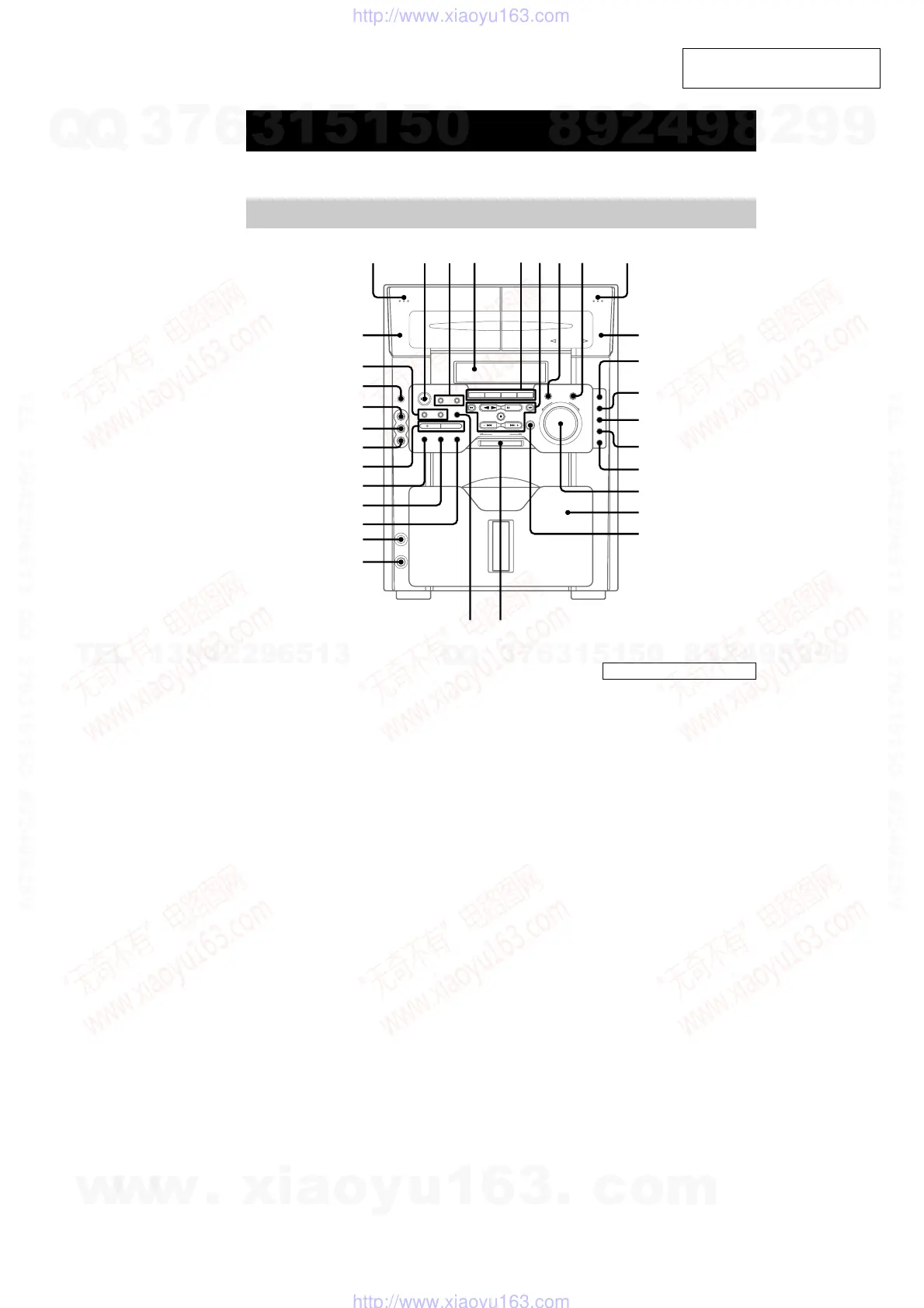

Parts Identification
5.1CH/VIDEO (MD) 5 (34)
AUDIO IN L jack wk (35)
AUDIO IN R jack wj (35)
CD 5 (13, 16, 27)
CD SYNCHRO wh (27, 28)
CLEAR w; (17, 18, 40)
Deck A es (26)
Deck B 0 (26)
DIRECTION ea (26)
DISC ACCESS ql (12, 13, 16,
17)
Display window 4
DISPLAY wd (11, 19, 25, 40)
ENTER qk (11, 17, 18, 25, 28, 29)
FRONT qd (31)
GAME e; (32, 35)
KEYBOARD INPUT jack ws
(33)
LINK qg (31)
MENU ea (18, 24)
PHONES jack wa
PLAY MODE wf (17, 28)
PRESET EQ 7 (30)
PRO LOGIC qs (10, 31)
PUSH OPEN (Front cover) qj
(12)
REAR qf (31)
REC PAUSE/START wh (27, 28)
REPEAT wg (14)
STEREO/MONO wg (25)
SURROUND qa (31)
SURROUND MODE 8 (31)
TAPE A/B 5 (26)
TIMER SELECT 3 (29, 33)
TIMER SET 3 (11, 29, 32)
TUNER/BAND 5 (24)
VIDEO IN jack wl (35)
VOLUME control qh
BUTTON DESCRIPTIONS
Z (deck A) 1
=/1 (power) 2
m (rewind) 6
n N (play) 6
X PAUSE 6
M (fast forward) 6
x (stop) 6
— . (go back) 6
> + (go forward) 6
Z (deck B) 9
The items are arranged in alphabetical order.
Refer to the pages indicated in parentheses ( ) for details.
