– 8 –
SECTION 3
DISASSEMBLY

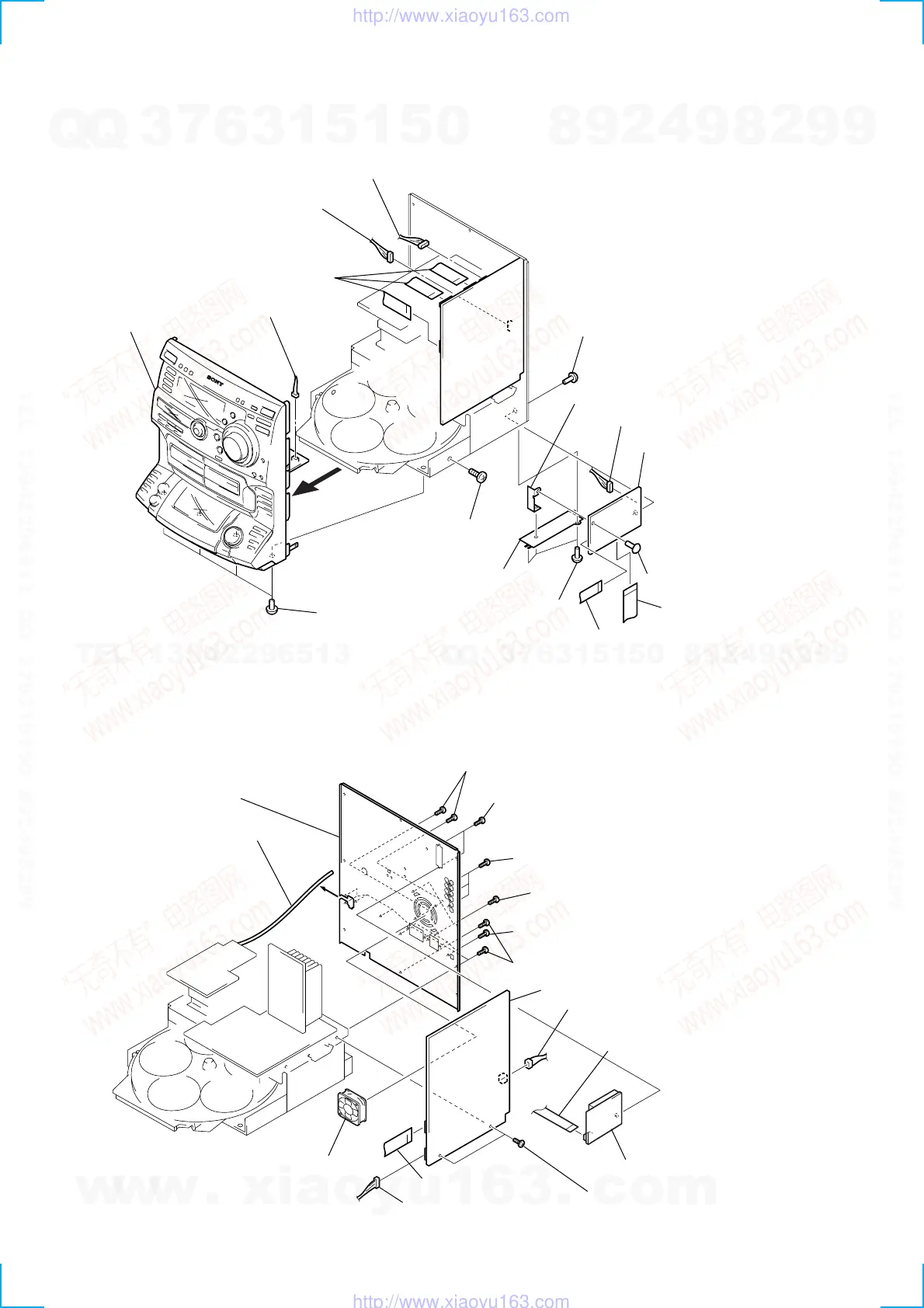

Note: Follow the disassembly procedure in the numerical order given.
3-1. FRONT PANEL
3-2. MAIN BOARD
1
Three flat type wires
(CN303,CN304,CN431)
2
Connector (CN702)
3
Connector (CN452)
4
Connector (CN802)
7
Front panel
5
Screw (BVTP 3x8)
0
Screw (BVTP 3x8)
Video board
Connector (CN301)
!∞
Bracket (VCD)
!™
Flat type wire (CN501
)
Bracket (CHASSIS)
Flat type wire (CN503)
9
Three screws
(BVTP 3x8)
8
Screw (BVTP 3x8)
6
Four screw (BVTP 3x8)
4
Connector (CN412)
5
Flat type wire (CN411)
1
Flat type wire (CN1
)
3
Tuner unit
2
Two screws (BVTP 3x8)
7
Seven screws (BVTP 3x8)
Fan motor
!™
Power cord
Back panel
8
Five screws (BVTP 3x8)
6
Connector (CN903)
!∞
Main board
Two screws (BVTP 3x8
)
0
Two screws (BVTP 3x8)
(HCD-VR70)
0
Two screws (BVTP 3x8)
(HCD-VR50)
9
Three screws (BVTP 3x8)
