Sony HCD-VX55 - Printed Wiring Board Main Section

HCD-VX55/VX55J
3030

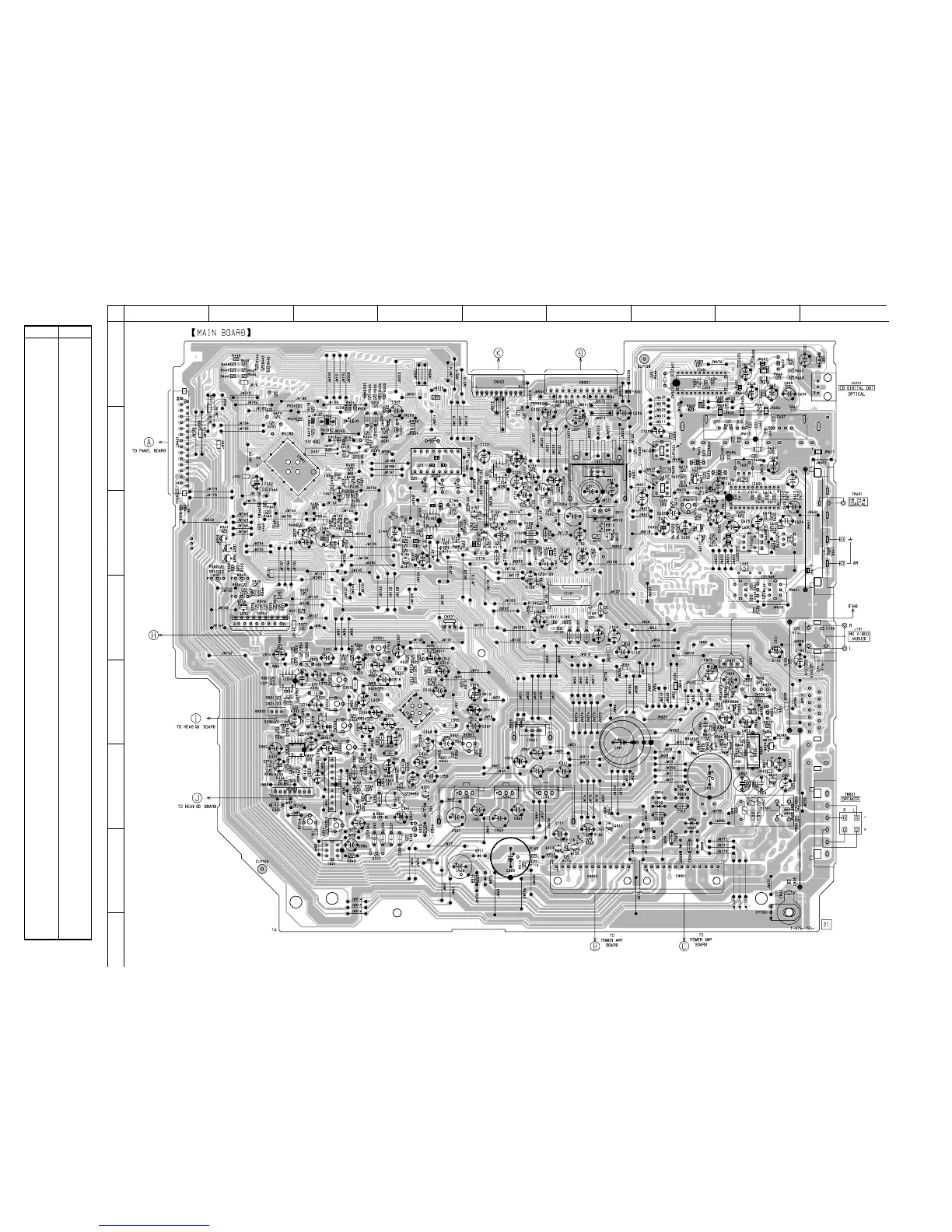

7-5. PRINTED WIRING BOARD MAIN SECTION
• See page page 23 for Circuit Boards Location.
Ref. No. Location
D501 B-3
D502 B-4
D503 A-4
D504 B-3
D505 A-3
D506 A-4
D508 C-1
D509 B-3
D510 B-3
D511 C-1
D601 B-7
D641 C-9
D651 B-7
D681 C-7
D801 F-8
D822 E-8
D861 F-6
D891 F-8
D892 F-8
D901 F-7
D902 F-7
D903 F-7
D904 F-7
D906 G-7
D907 G-7
D908 G-7
D909 G-7
D910 G-5
D911 G-5
D952 E-5
D953 E-5
D957
IC101 D-6
IC102 C-4
IC103 B-4
IC104 B-5
IC301 E-4
IC302 F-3
IC303 E-2
IC304 F-3
IC401 B-3
IC501 B-4
IC601 C-8
IC651 A-7
IC911 B-6
IC951 E-5
IC961 F-6
Q101 C-5
Q102 C-4
Q103 G-6
Q141 C-4
Q151 C-5
Q152 C-5
Q153 G-6
Q301 G-4
Q302 G-3
Q303 G-4
Q304 F-3
Q305 F-4
Q391 D-2
Q392 D-2
Q393 D-2
Q394 C-2
Q395 D-2
Q396 D-2
Q397 C-2
Q501 B-4
Q503 C-3
Q504 C-3
Q505 C-3
Q601 B-7
Q602 A-8
Q611 C-7
Q612 C-7
Q821 F-8
Q822 F-8
Q823 E-8
Q824 E-8
Q825 E-8
Q828 E-8
Q829 E-8
Q861 F-6
Q862 F-8
Q863 E-7
Q891 E-8
Q892 E-8
Q911 C-6
Q912 C-6
• Semiconductor
Location
R915
X651
R205
R431
R434
C416
C182
C181
C187
C188
C189
C119 C126
C185C186
C120
C114
IC103
R103
R182
R601
JR609
C602
JR601
FE601 : JE MODEL
FE602 : EXCEPT MODEL
JR618
JR617
JE
JE
EXCEPT
JE
EXCEPT
JE
12
A
B
C
D
E
F
G
H
3456789
(Page 40)
(Page 42)
(Page 36)
TO LEAF SW BOARD
(Page 38)
(Page 38)
(Page 38)
(Page 34)
(Page 34)
TO VIDEO BOARDTO DRIVER BOARD
