Sony HCD-VX55 - 8-2. PANEL SECTION

55

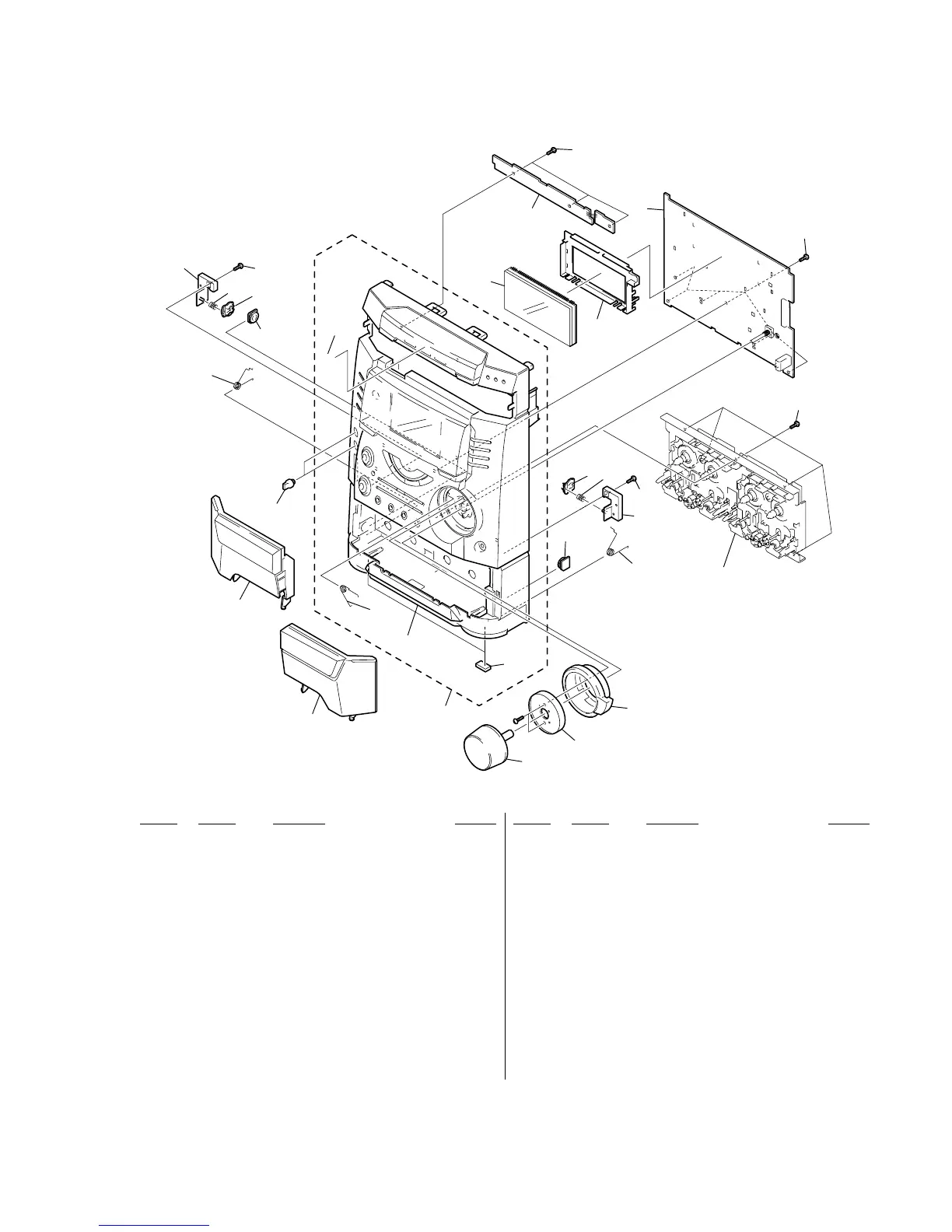

8-2. PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
S
51
52
53
56
69
58
57
70
71
59
59
63
64
65
66
54
55
* 67
67
67
67
61
60
60
62
* For service only
(Be sure to refer to "Service note" on page 4.)
Tape mechanism deck
FL601
68
67
not supplied
not supplied
#7
51 X-4952-418-1 TC HOLDER (L) ASSY (SILVER)
(EXCEPT VX55E)
51 X-4952-792-1 TC HOLDER (L) ASSY (BLACK)(VX55:E)
52 X-4952-419-1 TC HOLDER (R) ASSY (SILVER)
(EXCEPT VX55E)
52 X-4952-791-1 TC HOLDER (R) ASSY (BLACK)(VX55:E)
53 4-225-032-01 VOL KNOB
54 A-4428-450-A CD SWITCH BOARD, COMPLETE
55 4-962-708-71 EMBLEM (4-A), SONY
56 4-225-033-01 FR KNOB
57 X-4952-669-1 FRONT PANEL ASSY (SILVER)(EXCEPT VX55E)
57 X-4952-675-1 FRONT PANEL ASSY (BLACK)(VX55:E)
58 4-224-562-01 BRACKET (HEART CAM L)
59 4-224-803-01 SPRING (PUSH),COMPRESSION COIL
60 4-224-104-11 DAMPER
61 4-224-560-01 CAM(L), HEART
62 4-224-559-01 CAM(R), HEART
63 4-224-561-01 BRACKET (HEART CAM R)
64 4-225-053-01 SPRING R
65 4-224-584-11 HOLDER (FL)
66 A-4428-457-A PANEL BOARD, COMPLETE
(VX55:E,IA,EA,TW,HK,SP,MY/VX55J:JE)
66 A-4428-980-A PANEL BOARD, COMPLETE (VX55:TH)
66 A-4473-160-A PANEL BOARD, COMPLETE (VX55J:EA)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-224-578-01 KNOB(MIC)
69 4-225-052-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
71 4-228-501-01 SPRING FR
FL601 1-517-928-11 INDICATOR TUBE, FLUORESCENT
