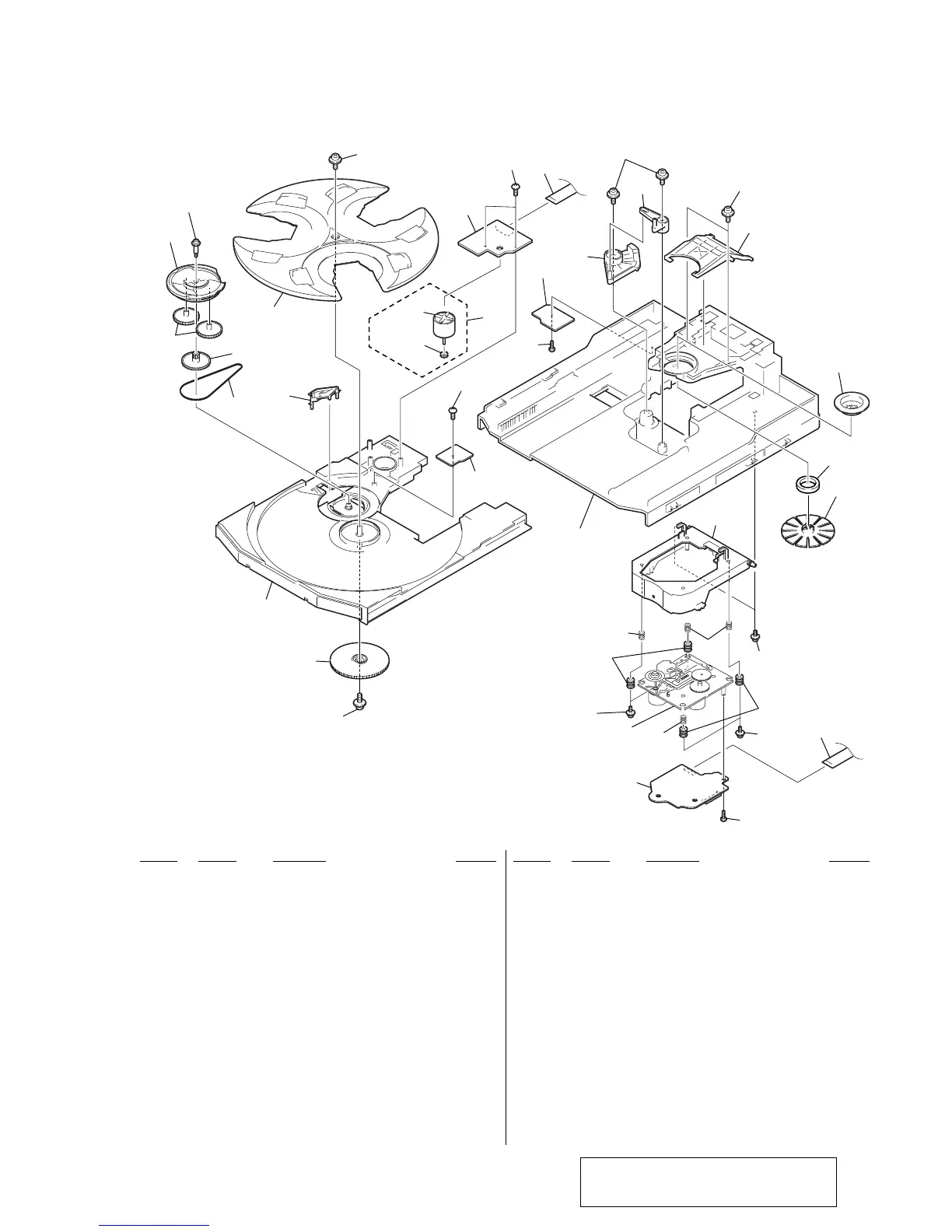

8-6. CD MECHANISM DECK SECTION (CDM58-K2BD37)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not supplied
not supplied
251
252
253
254
255
256
274
275
276
269
278
272
257
259
258
258
258
260
283
261
262
263
251
264
271
265
266
268
270
270
270
271
271
267
279
258
281
280
271
not
supplied
282
251 4-933-134-11 SCREW (+PTPWH M2.6X8)
252 4-221-679-01 CAM(RELAY)
253 4-221-675-01 TABLE
254 4-221-686-01 LEVER (CHANGE)
255 4-221-676-01 TRAY
256 4-933-134-51 SCREW (+PTPWH 2.6X8)
257 1-675-910-11 MOTOR BOARD
258 4-951-620-01 SCREW (2.6X8), +BVTP
259 1-791-983-12 WIRE (FLAT TYPE) (8 CORE)
260 1-675-911-11 ADDRESS SENSOR BOARD
261 1-675-912-11 DRIVER BOARD
262 X-4952-608-1 CAM(U/D) ASSY
263 4-221-681-01 LEVER (EX)
264 4-221-682-01 LEVER (LIFTER)
265 4-221-688-01 PULLEY (B), CHUCKING
266 1-471-035-11 MAGNET ASSY
267 X-4952-019-1 PULLEY (A) ASSY, CHUCKING
268 X-4951-889-1 HOLDER (BU) ASSY
269 4-222-095-01 BELT
270 4-227-045-01 SPRING (INSULATOR), COIL
271 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
272 1-541-632-11 MOTOR, DC
274 4-221-678-01 CAM(CONTROL)
275 4-221-683-01 GEAR (U)
276 4-221-685-01 PULLEY (S)
278 A-4672-826-A MOTOR ASSY
279 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
280 A-4725-003-A BD BOARD, COMPLETE
0 281 8-820-116-01 OPICAL PICK-UP BLOCK (KSM-213DAP)
282 4-222-097-01 SCREW, STEP
283 4-221-674-03 CHASSIS
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Ver 1.3 2002.09
