Sony HCD-VX55 - Tape Mechanism Section (TCM-230 PWR11) (1;2)

57

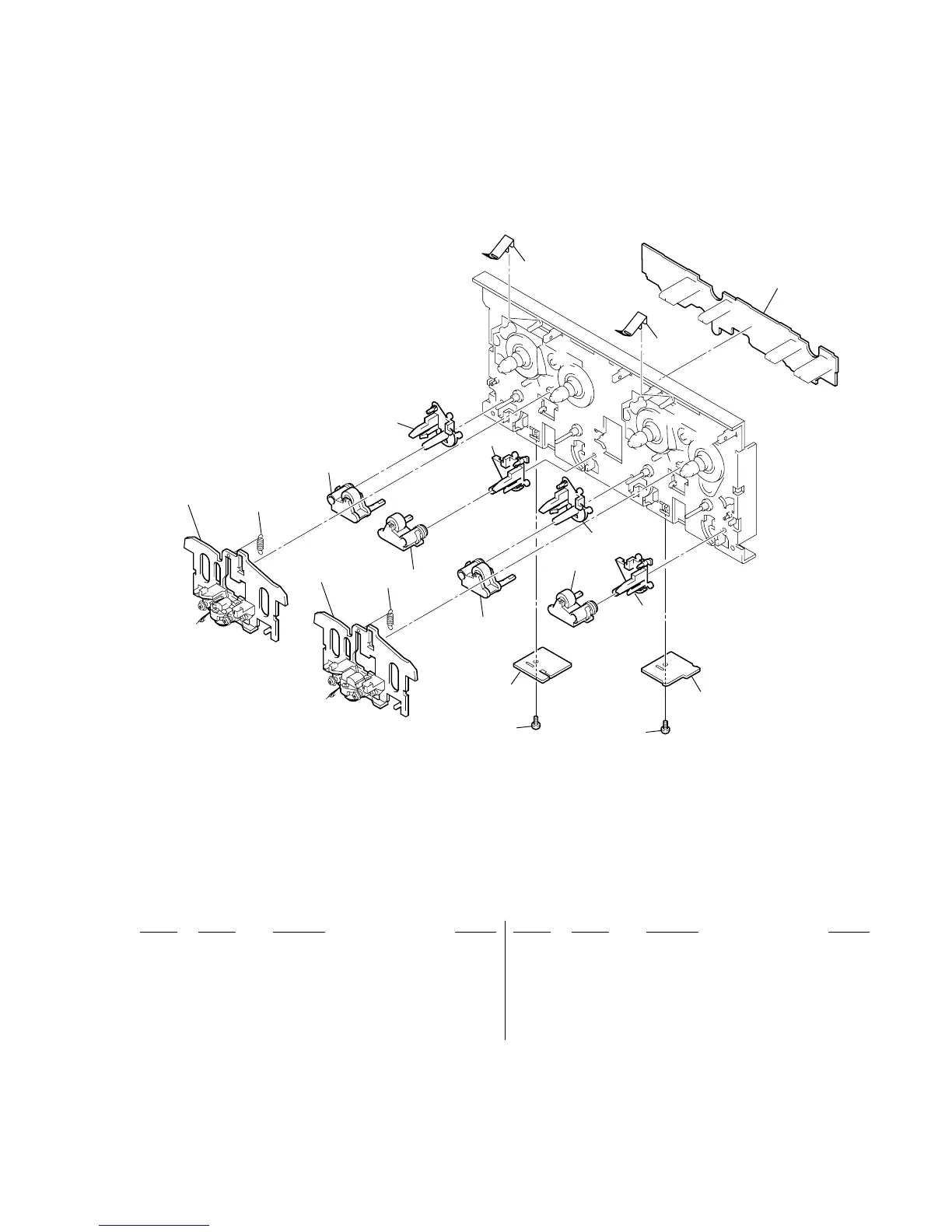

8-4. TAPE MECHANISM DECK SECTION (TCM-230PWR11) (1/2)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
158
157
157
159
151
151
152
152
153
153
155
155
154
156
156
154
HRPE101
HP101
Note: Two different types of tape mechanism are used depending on models.
They maintain compatibility as an entire mechanism even though
there are some different parts are used.
160
151 3-016-574-01 SPRING (HEAD), TENSION
152 X-3374-156-4 PINCH LEVER (REV) ASSY
153 X-3374-155-4 PINCH LEVER (FWD) ASSY
154 3-017-366-01 BASE (PINCH LEVER REV)
155 3-017-365-01 BASE (PINCH LEVER FWD)
156 3-016-567-02 SPRING (CASSETTE), LEAF
157 4-227-872-01 SCREW (+PTT 2X4), GROUND POINT
158 1-676-220-11 HEAD (A) BOARD
159 1-676-221-11 HEAD (B) BOARD
160 A-2007-838-A LEAF SW BOARD, COMPLETE
HP101 A-2004-765-A BASE (A) ASSY, HEAD
HRPE101 A-2004-766-A BASE (B) ASSY, HEAD
