SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
54
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model
IA : Indonesia model
HK : Hong Kong model
JE : Tourist model

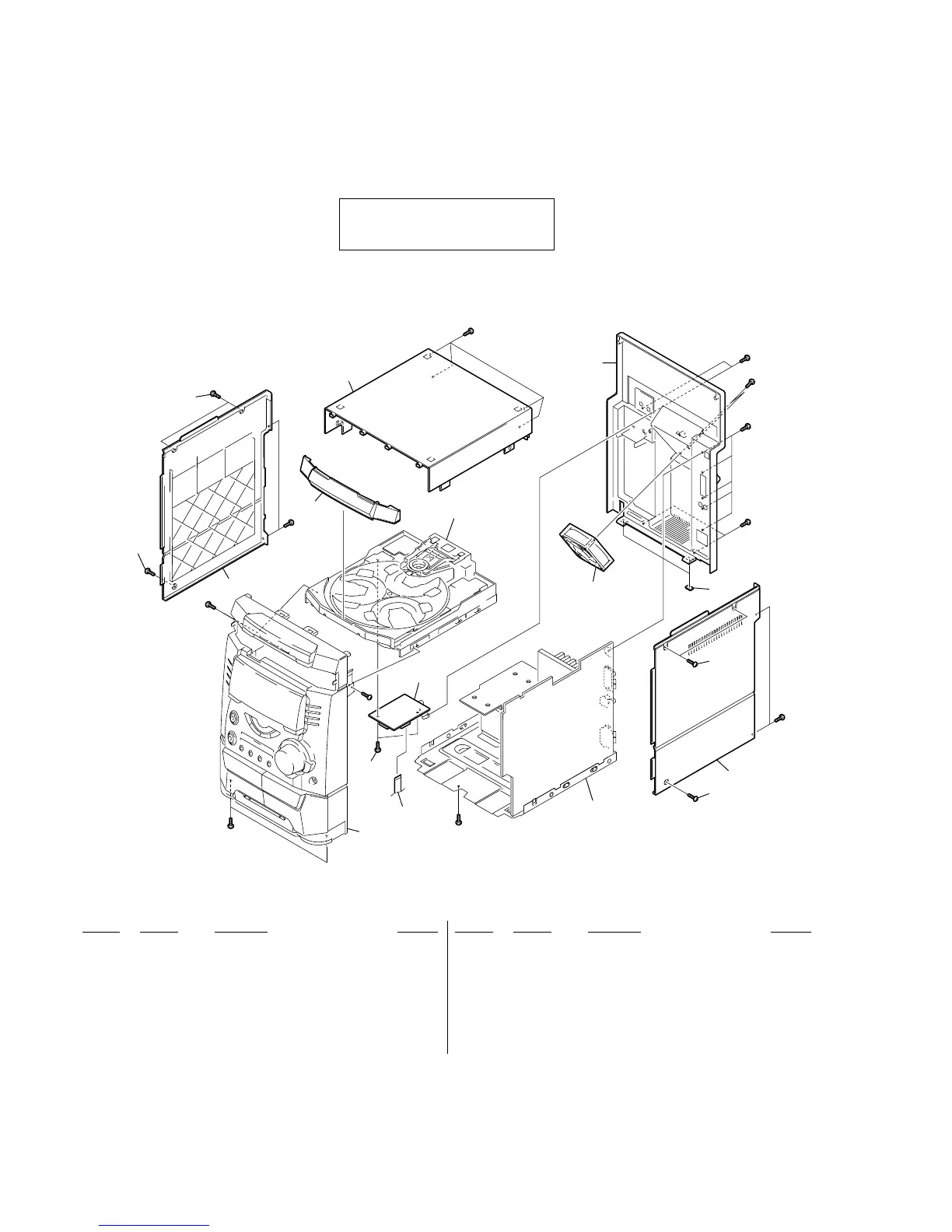

8-1. MAIN SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
CD mechanism deck
#2
#3
#3
#3
#3
#3
#3
#3
#3
#5
#5
4
3
5
1
1
2
2
6
Panel section
Main board section
M961
9
8
7
10
11
1 3-363-099-01 SCREW(CASE 3 TP2)
2 3-363-099-41 SCREW(CASE 3 TP2)
3 4-225-038-21 SIDE PANEL L
4 4-225-017-41 LOADING PANEL (VX55:EXCEPT E)
4 4-228-259-21 LOADING PANEL (VX55J)
4 4-225-018-61 LOADING PANEL (VX55:E)
5 4-225-039-21 SIDE PANEL R
6 4-224-550-41 UPPER CASE (TOP)
7 A-4724-973-A VIDEO BOARD, COMPLETE
8 4-228-592-21 BACK PANEL
9 4-225-252-01 CUSHION (FOOT)
10 1-792-246-11 WIRE(FLAT TYPE) (23 CORE)
11 4-951-620-01 SCREW (2.6X8), +BVTP
M961 1-763-072-11 FAN, D.C.
