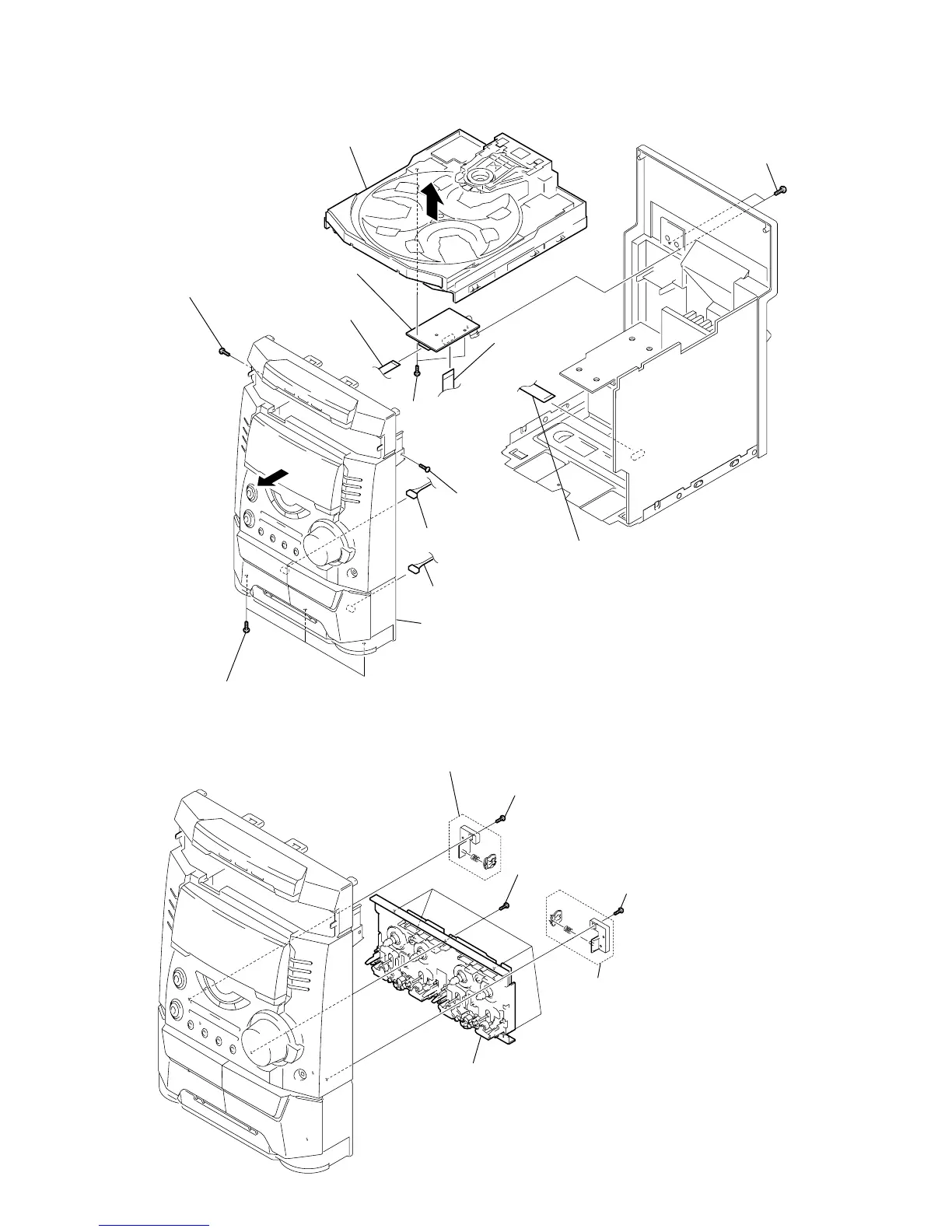

Sony HCD-VX55 - FRONT PANEL SECTION

8
7
qa
CD mechanism deck (CDM58)
Front panel section
3 Connector (CN2)
2 Connector (CN1)
1 Flat type wire
(CN304)
9 Flat type wire
(CN501)
8 Flat type wire
(CN502)
6 Three screws (+BVTT 3 × 6)
5 Screw
(+BVTP 3
× 10)
qs Tw o screws
(+BVTP 2.6
× 8)
4 Screw (+BVTP 3 × 10)
q; Two screws
(+BVTP 3
× 10)
qd Video Board
6 Tape mechanism deck
5 Five screws (+BVTP 2.6 × 8)
1 Screw (+BVTP 2.6 × 8)
2 Bracket assy (Heart cam R)
4 Bracket assy (Heart cam L)
3 Screw (+BVTP 2.6 × 8)
3-3. FRONT PANEL SECTION
3-4. TAPE MECHANISM DECK
