Sony HCD-VX8 - Printed Wiring Board - Panel Section

HCD-VX8/VX8J

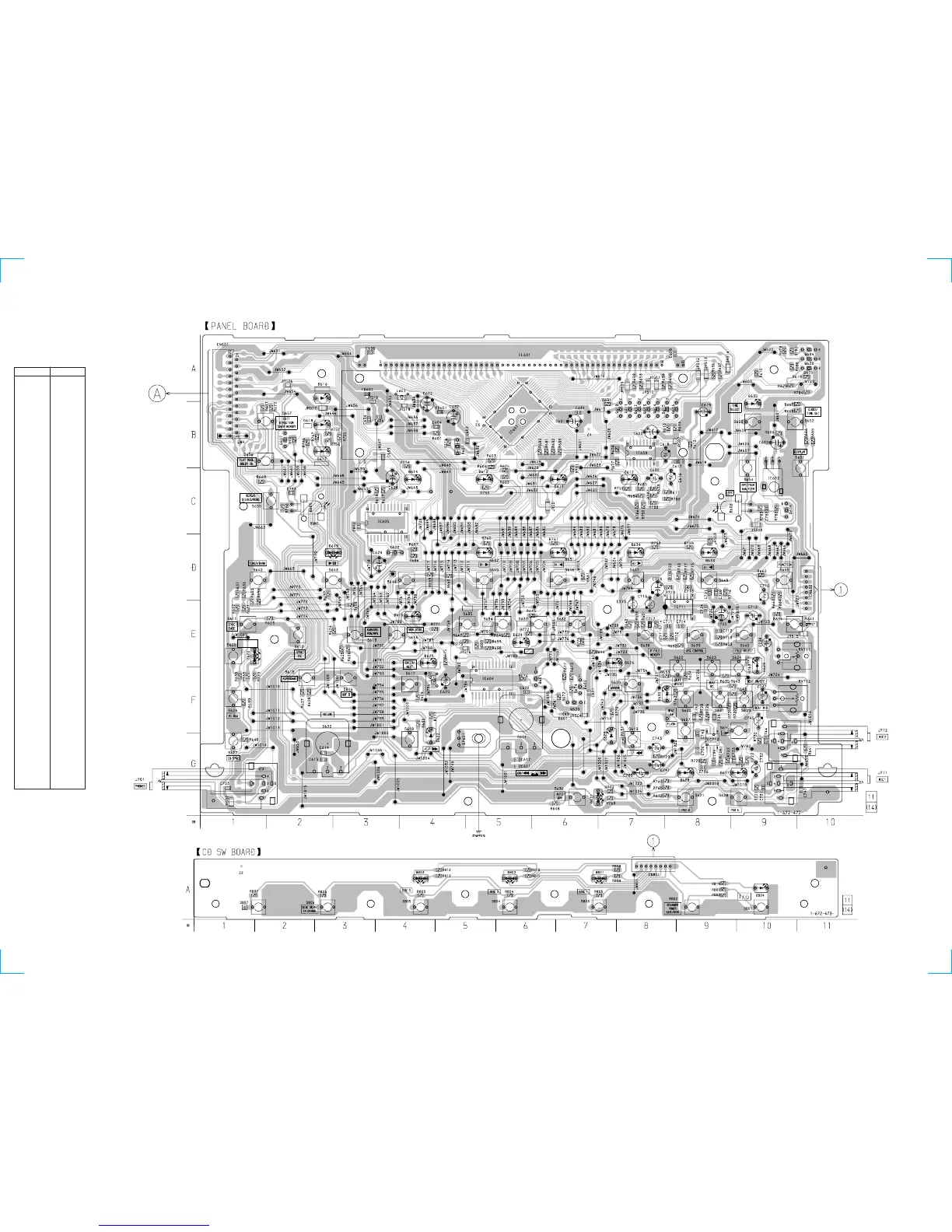

8-18. PRINTED WIRING BOARD – PANEL SECTION –
• See page 18 for Circuit Boards Location.
D601 F-6
D608 C-9
D609 C-2
D611 C-6
D612 C-7
D613 C-5
D614 C-4
D615 E-4
D616 A-2
D617 B-2
D618 B-2
D619 D-3
D620 E-1
D621 G-7
D622 G-4
D623 G-7
D624 E-5
D625 E-4
D626 E-7
D627 G-9
D628 G-8
D629 F-9
D630 F-8
D631 D-6
D632 D-5
D633 D-8
D634 D-7
D635 A-9
D701 E-9
IC601 B-5
IC602 C-9
IC603 B-7
IC604 F-5
IC605 C-4
IC711 E-8
IC712 G-8
Q601 F-6
Q602 F-6
Q603 F-6
Q604 A-10
Q605 A-10
Q607 B-2
Q608 C-9
Q610 B-7
Q611 B-7
Q612 B-7
Q613 B-7
Q614 B-7
Q615 B-8
Q616 B-8
Q620 A-10
Ref. No. Location
• Semiconductor
Location
– 61 –
– 62 –
(Page 49)
REC
PAUSE/START
JOG
VIDEO CD
PBC OFF
PBC
NEXT
PREY
RETURN SELECT
