Sony HCD-VX8 - Chassis Section

– 91 –

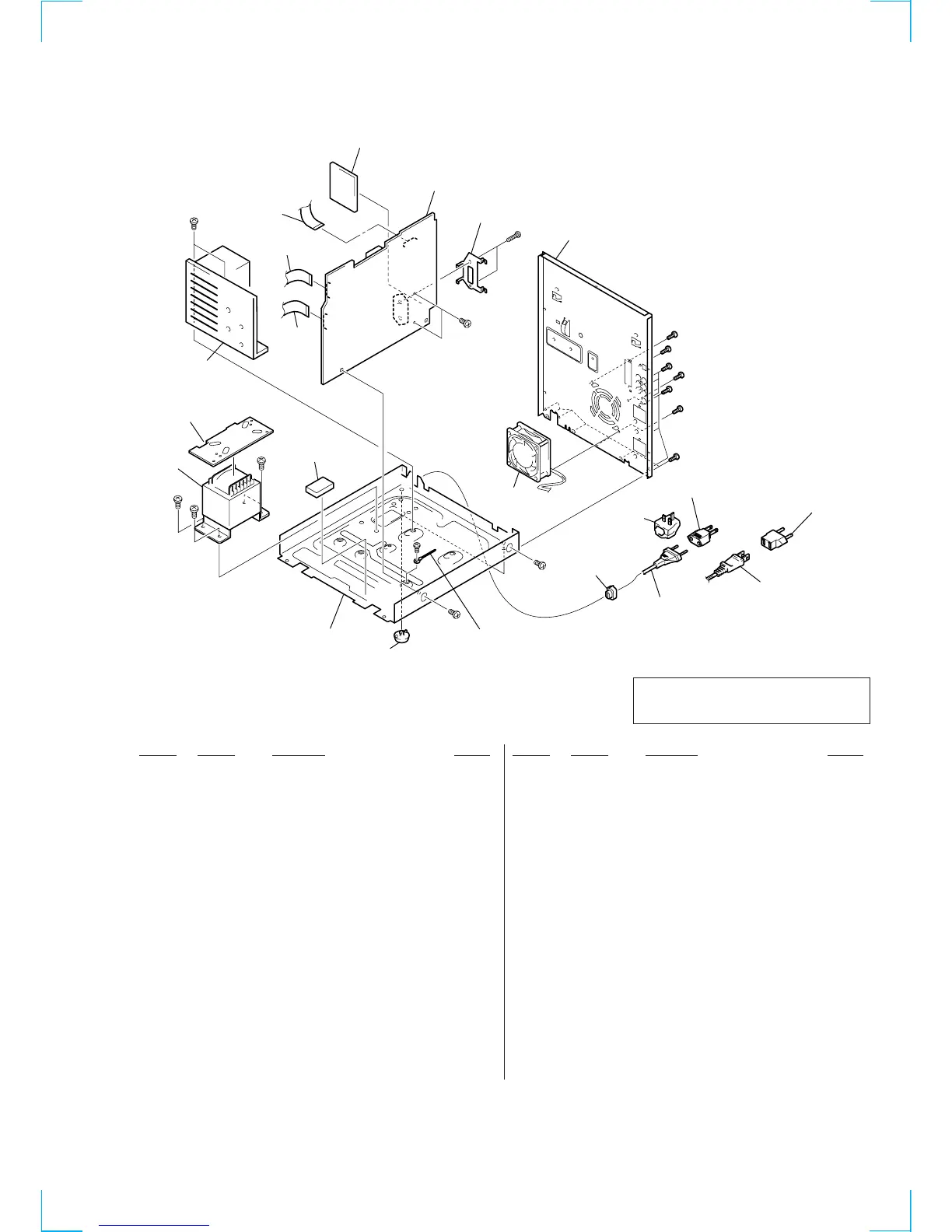

9-2. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-965-822-01 FOOT
* 52 1-672-474-11 TRANS BOARD
53 A-4419-149-A MAIN BOARD, COMPLETE (EXCEPT TH, EA)
53 A-4419-725-A MAIN BOARD, COMPLETE (EA)
53 A-4426-131-A MAIN BOARD, COMPLETE (TH)
54 A-4419-159-A SURROUND BOARD, COMPLETE
55 1-769-977-11 WIRE (FLAT TYPE)(13 CORE) (TH)
55 1-773-009-11 WIRE (FLAT TYPE)(15 CORE) (150mm)
(EXCEPT TH)
56 1-773-024-11 WIRE (FLAT TYPE)(15 CORE) (320mm)
* 57 3-703-244-00 BUSHING (2104), CORD (EXCEPT E,IA,TH)
57 3-703-571-11 BUSHING (S) (4516), CORD (E,TH)
57 4-966-266-01 BUSHING (S) (FBS002), CORD (IA)
58 1-569-007-11 ADAPTOR, CONVERSION 2P (E,IA)
58 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,SP,MY,TW)
58 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
52
53
54
55
56
60
57
62
63
61
#2
#2
T951
not supplied
not supplied
not supplied
#2
#3
#3
#3
#2
51
58
(EA,SP,MY,TW)
58 (HK)
58 (E,IA)
59 (E,IA,TH)
59 (EA,HK,SP,MY,TW)
#2
#2
#2
#4
#2
#1
#2
#2
#2
M901
! 59 1-575-651-11 CORD, POWER (EA,SP,HK,MY,TW)
! 59 1-575-653-11 CORD, POWER (E,IA,TH)
60 1-773-042-11 WIRE (FLAT TYPE)(17 CORE)
61 4-215-641-01 PANEL, BACK (VX8:EA)
61 4-215-641-11 PANEL, BACK (VX8:SP,MY)
61 4-215-641-21 PANEL, BACK (VX8:TW)
61 4-215-641-31 PANEL, BACK (VX8:E)
61 4-215-641-41 PANEL, BACK (VX8:IA)
61 4-215-641-51 PANEL, BACK (VX8:HK)
61 4-215-641-61 PANEL, BACK (VX8J:E)
61 4-215-641-71 PANEL, BACK (VX8J:EA)
61 4-215-641-81 PANEL, BACK (VX8:TH)
62 3-701-822-01 HOLDER, WIRE
63 4-985-642-01 CUSHION
M901 1-763-072-11 FAN, D.C.
! T951 1-433-556-11 TRANSFORMER, POWER
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
