Sony HCD-VX8 - CD Mechanism Deck Section Exploded Views

– 93 –

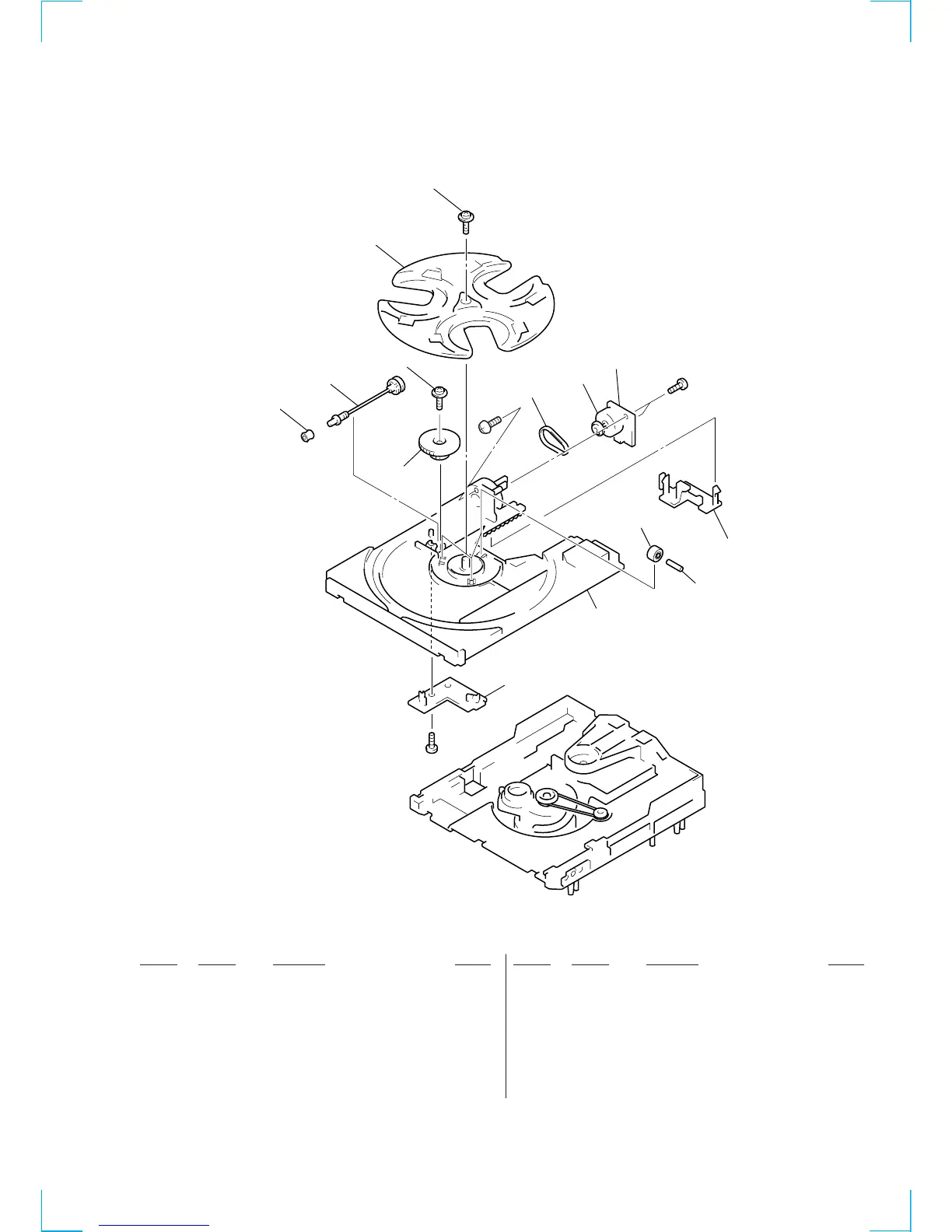

9-4. CD MECHANISM DECK SECTION-1 (CDM38L-5BD34L)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
207 4-988-162-01 ROLLER
208 4-977-941-01 BEARING (WORM)
* 209 1-658-576-11 SENSOR BOARD
210 4-934-376-01 SHAFT (ROLLER)
211 4-981-187-01 COLLAR (WORM)
212 4-977-944-01 TRAY (SLIDE)
M701 A-4672-004-A MOTOR ASSY (TURN)
201 4-981-789-21 BRACKET (2), YOKE
202 4-977-945-63 TRAY (TURN)
203 X-4946-665-1 SHAFT ASSY, WORM
204 4-977-943-01 BELT (TURN) (1.2)
205 4-977-956-01 WHEEL, WORM
* 206 1-658-577-11 MOTOR (TURN) BOARD
