Sony HCD-VX8 - Cassette Lid and Tape Mechanism Disassembly

– 8 –

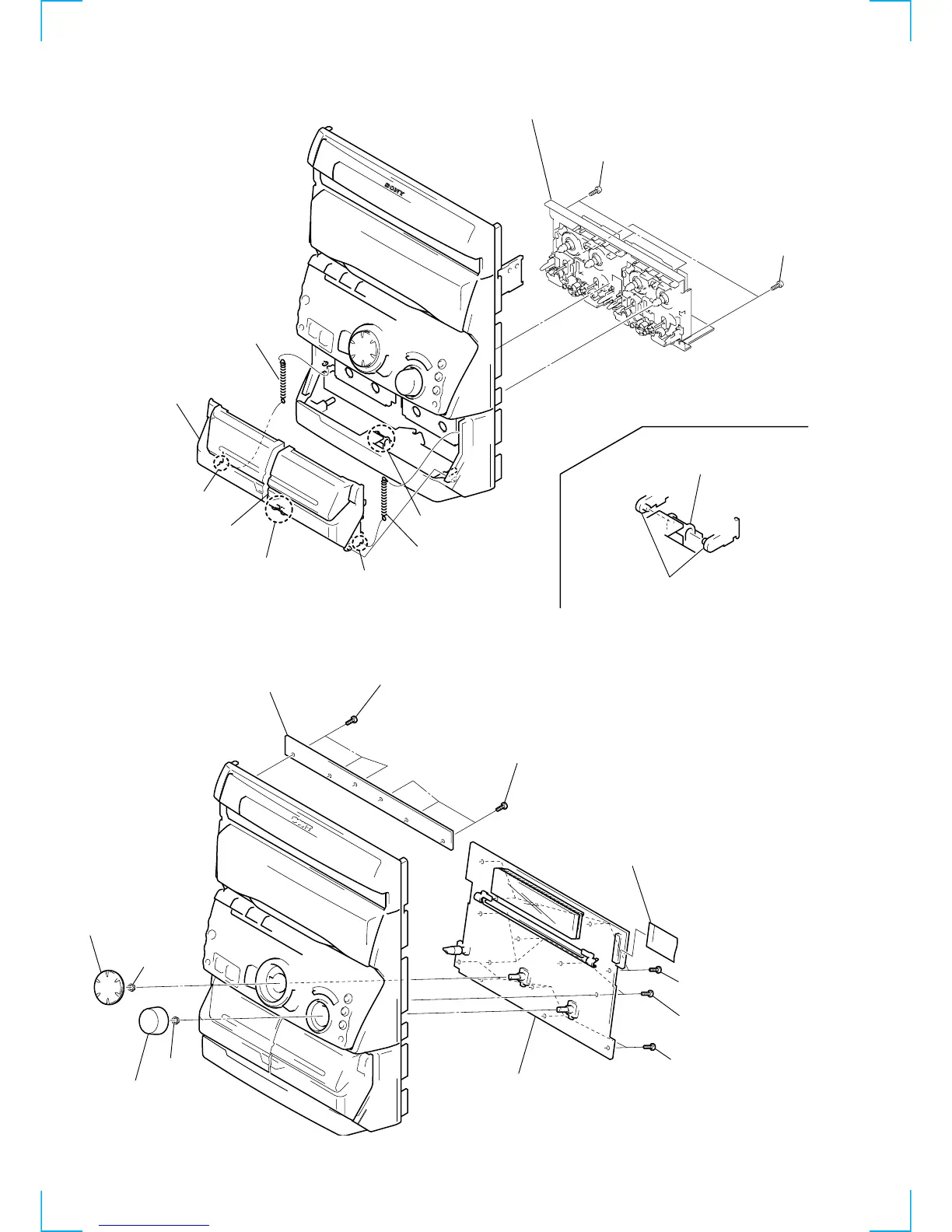

3-3. CASSETTE LID AND TAPE MECHANISM
3-4. CD SW BOARD AND PANEL BOARD
1 Release
3 Cassette holder (R)
assembly
4 Cassette holder (L)
assembly
Portion
B
Portion B
7 Two screws
(BVTP2.6x8)
8 Three screws
(BVTP2.6x8)
9 Tape mechanism
2 Release
(Refer to order No. 1 )
Portion A
Portion A
Note for installation
5 Tension spring
6 Tension spring
4 Knob (Jog)
5 Knob (Vol)
9 Four screws
(BVTP2.6x8)
3 CD SW board
0 Five screws
(BVTP2.6x8)
!¡ Five screws
(BVTP2.6x8)
!™ Panel board
2 Three screws
(BVTP2.6x8)
8 Flat type wire
(CN601)
1 Three screws
(BVTP2.6x8)
7 Nut
6 Nut
