Sony HCD-VX8 - SECTION 9 EXPLODED VIEWS; Case Section Exploded View

– 90 –
SECTION 9
EXPLODED VIEWS

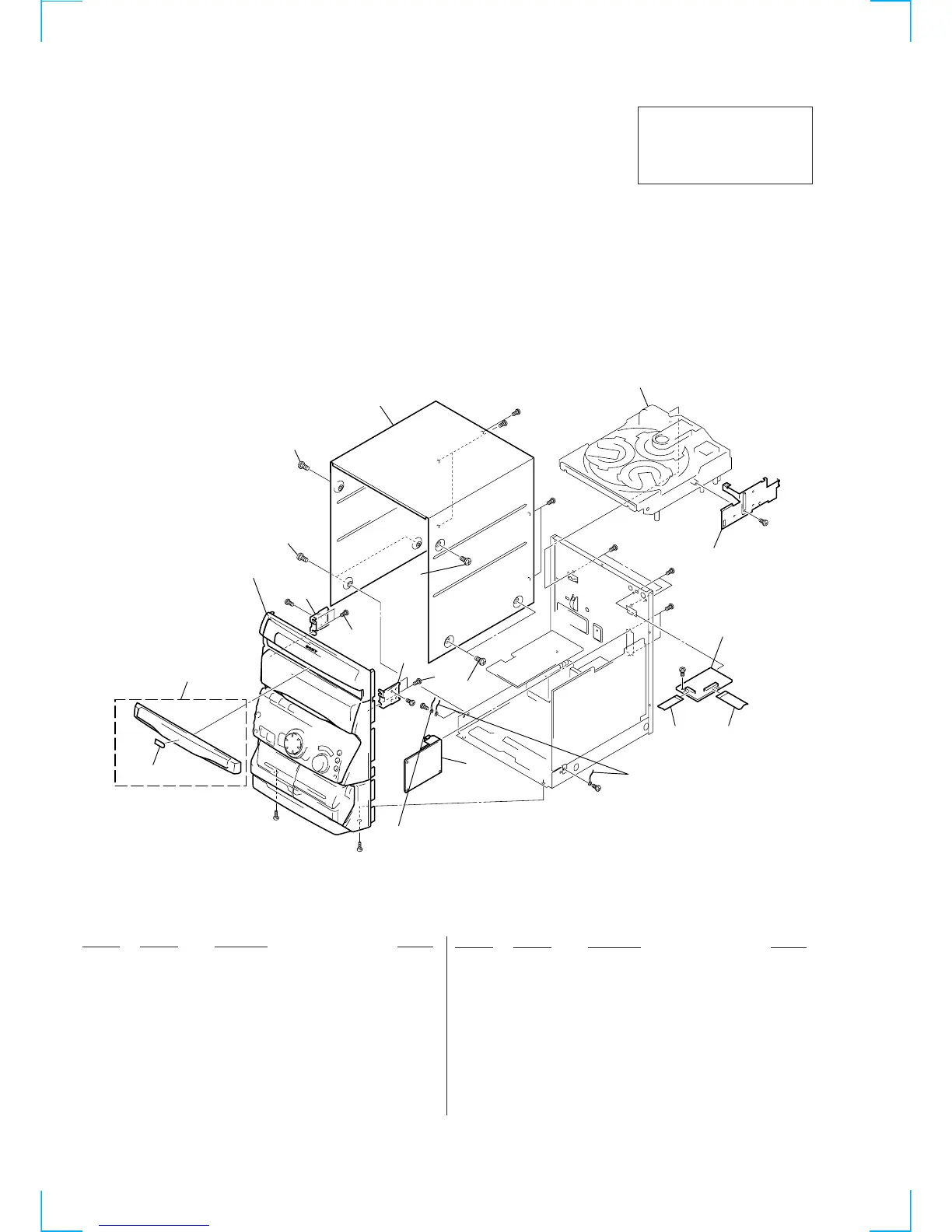

9-1. CASE SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
Â
Cabinets color
• Abbreviation
EA : Saudi Arabia model
HK : Hong Kong model
SP : Singapore model
MY : Malaysia model
TW : Taiwan model
IA : Indonesia model
TH : Thai model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 1 4-996-716-01 HOLDER (CDM)
2 3-363-099-41 SCREW (CASE 3 TP2)(GRAY)
2 3-363-099-71 SCREW (CASE 3 TP2)(SILVER)
3 3-363-099-01 SCREW (CASE 3 TP2)(GRAY)
3 3-363-099-11 SCREW (CASE 3 TP2)(SILVER)
* 4 4-221-149-21 CASE (SILVER)
* 4 4-221-149-61 CASE (GRAY)
5 1-233-545-11 TUNER UNIT (TH)
5 1-233-546-13 ENCAPSULATED COMPONENT (EXCEPT TH)
4
2
2
3
1
7
8
6
6
1
3
5
#1
#2
#2
#2
#2
#2
#13
#13
#1
CDM38L-5BD34L
Front panel
#1
#1
#1
#1
#1
Including Panel board
(Ref No. 118)
Including Trans board
(Ref No. 52)
not supplied
11
9
10
6 4-951-620-01 SCREW (2.6x8), +BVTP
7 X-4950-965-1 PANEL ASSY, LOADING (VX8)(GRAY)
7 X-4951-028-1 PANEL ASSY, LOADING (VX8)(SILVER)
7 X-4951-629-1 PANEL ASSY, LOADING (VX8J)
8 4-991-781-01 EMBLEM (VCD)
9 1-790-927-11 WIRE (FLAT TYPE) (13 CORE)
10 1-775-212-11 WIRE (FLAT TYPE) (23 CORE)
11 A-4724-727-A VIDEO BOARD, COMPLETE
