HCD-XG80/XG700
• This set can be disassembled in the order shown below.

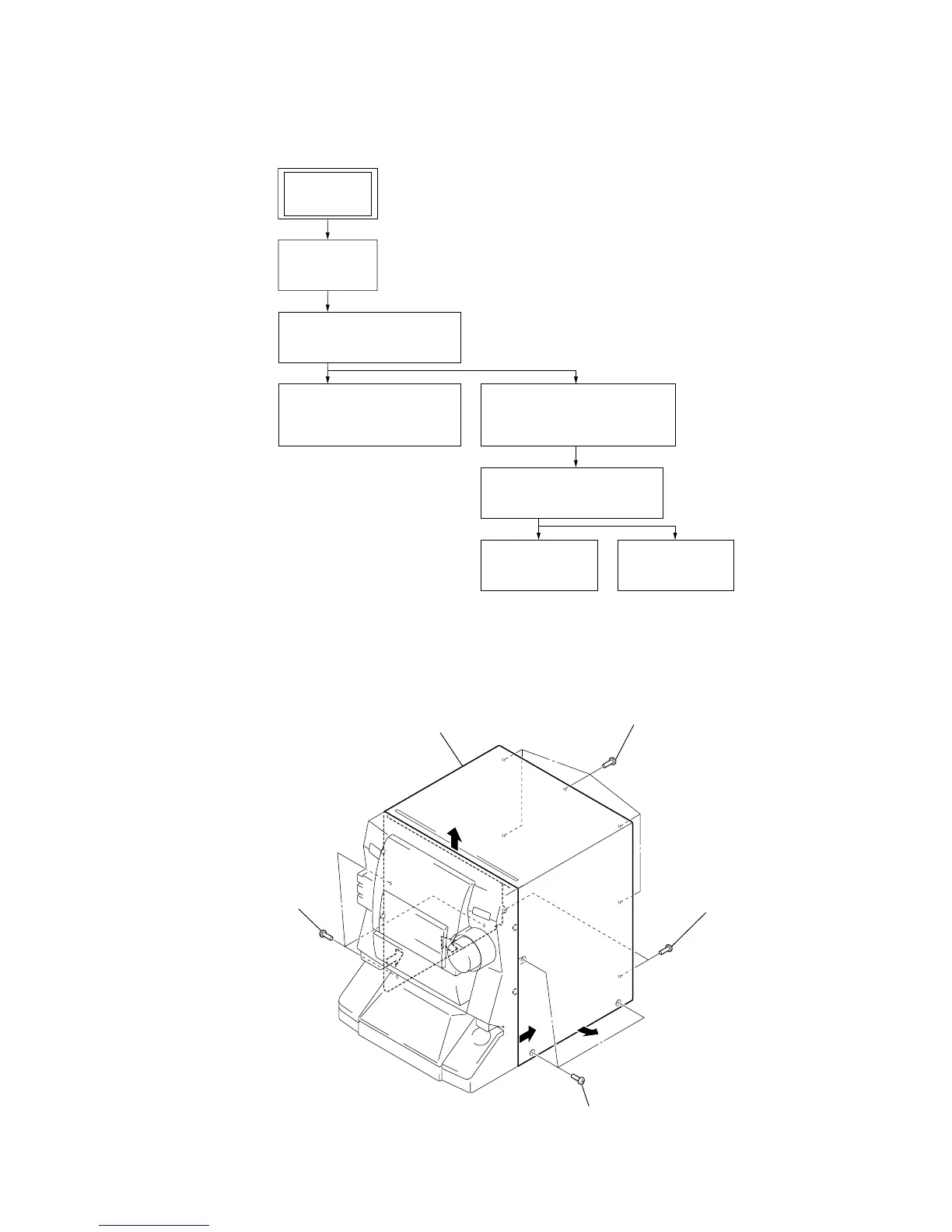

3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
1 three screws
(CASE3 TP2)
1 three screws
(CASE3 TP2)
2 five screws
(BVTT3
× 6)
3 two screws
(BVTP3
× 8
)
4
4
5
5
6 case
3-2. CASE
(Page 7)
3-3. FRONT PANEL SECTION
(Page 8)
3-4. COVER (TC),
TAPE MECHANISM DECK
(TCM-230PWR42)
(Page 8)
3-6. CD MECHANISM DECK
(CDM37M-5BD32L)
(Page 10)
3-7. BASE UNIT
(BU-5BD32L)
(Page 11)
3-8. DISC TABLE
(Page 11)
3-5. MAIN BOARD,
FAN, D.C. (M901)
(Page 9)
SET
