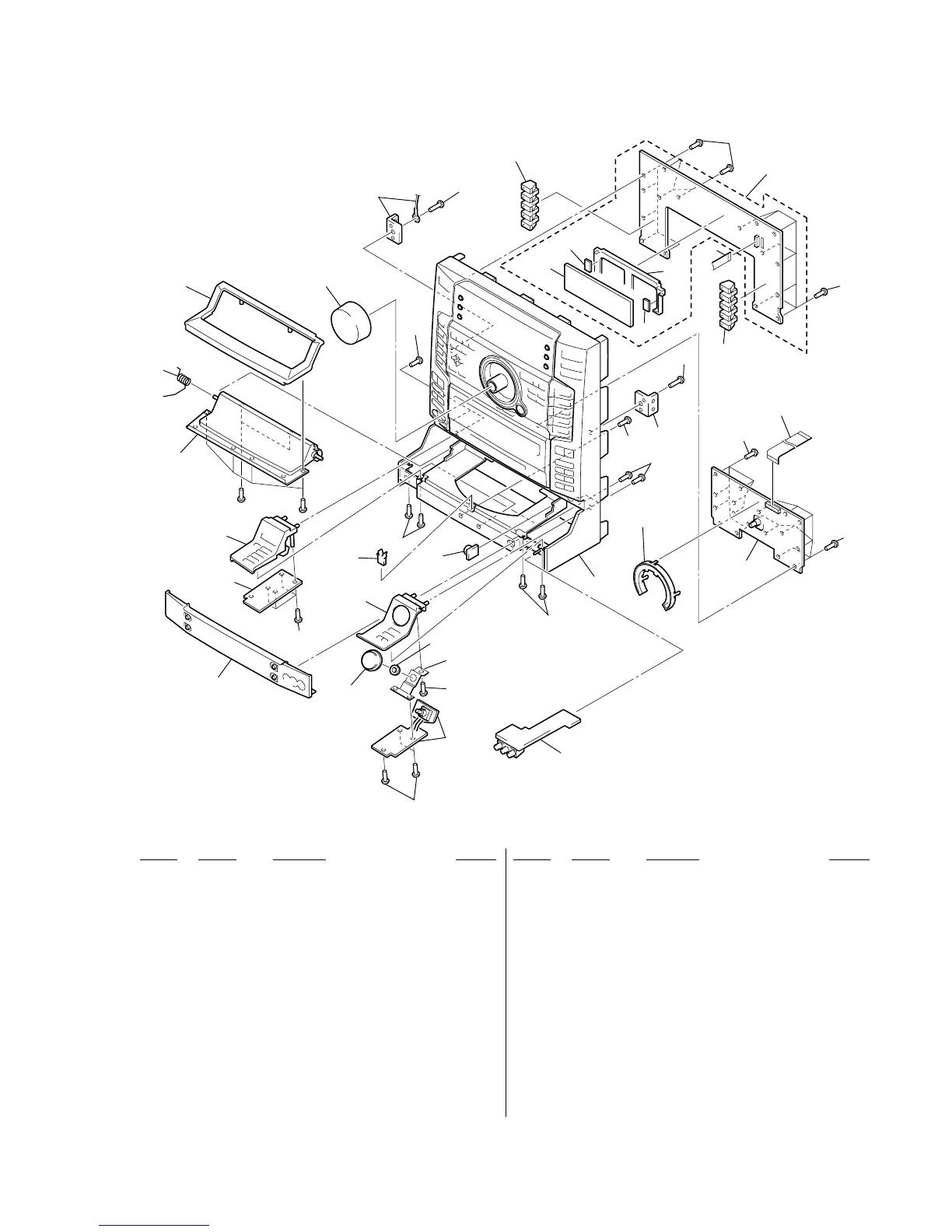

7-3. FRONT PANEL SECTION-2
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
109
109
114
109
109
109
109
109
109
109
109
109
109
107
118
102
103
105
106
104
108
109
117
122
121
120
119
101
109
112
114
115
116
123
113
111
110
110
not supplied
not
supplied
not supplied
supplied with S763
#7
#7
FL601
101 4-237-649-01 BUMPER (PANEL) (XGR6)
101 4-237-649-11 BUMPER (PANEL) (XGR60)
102 1-683-452-11 CD-L BOARD
103 X-4954-371-1 SUB PANEL (CD-L) ASSY
104 4-237-638-01 LID(CD)
105 4-237-630-01 WINDOW (CD)
106 4-237-658-01 SPRING (CD)
107 4-040-472-01 LATCH, D.C.
108 4-237-634-01 KNOB (VOLUME)
109 4-951-620-01 SCREW (2.6X8), +BVTP
110 4-949-935-81 CUSHION (FL)
111 4-225-511-01 HOLDER FL TUBE
112 A-4727-623-A PANEL FL BOARD, COMPLETE
113 1-773-118-11 WIRE (FLAT TYPE) (19 CORE)
114 4-237-639-01 HOLDER (LED 1)
115 1-773-178-11 WIRE (FLAT TYPE) (23 CORE)
116 A-4727-624-A PANEL VR BOARD, COMPLETE
117 X-4954-360-1 FRONT PANEL ASSY (XGR6)
117 X-4954-378-1 FRONT PANEL ASSY (XGR60)
118 4-224-104-01 DAMPER
119 X-4954-372-1 SUB PANEL (CD-R) ASSY
120 4-237-636-01 KNOB (CD)
121 1-683-453-11 CD-R BOARD
122 1-683-454-11 FRONT INPUT BOARD
123 4-237-640-01 HOLDER (LED 2)
FL601 1-518-794-11 INDICATOR TUBE, FLUORESCENT
#7 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
