Sony HCD-XGR60 - Mechanism and Chassis Assemblies

56
HCD-XGR6/XGR60

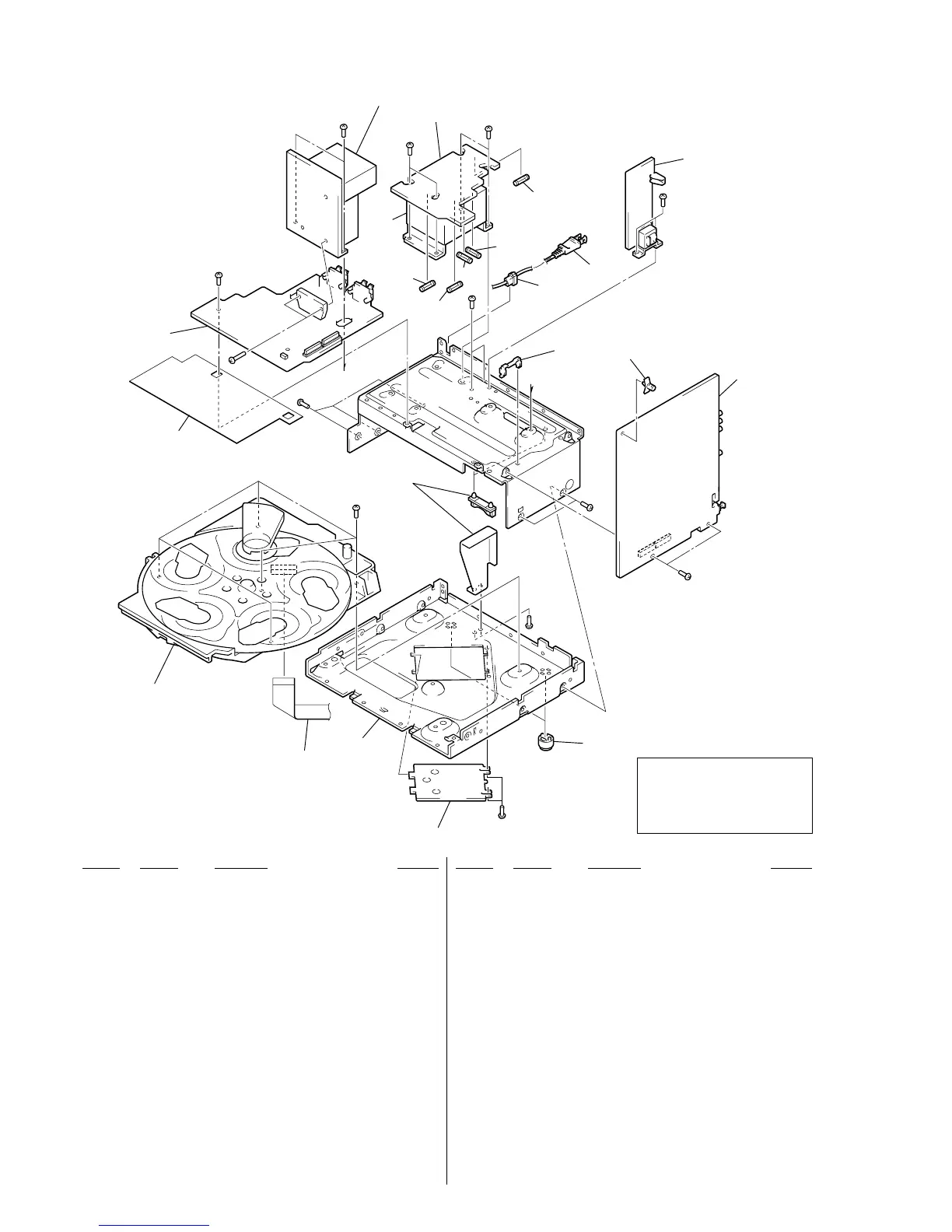

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
154
153
159
155
156
158
160
152
151
161
#2
#4
#1
#2
not supplied
not supplied
not supplied
not supplied
not supplied
CDM37B-30BD60C
#5
#1
#1
#1
#1
#1
#1
#1
#5
F951
F961
F962
F964
F963
T951
b
b
151 1-823-750-11 WIRE (FLAT TYPE) (21 CORE)
152 4-235-701-01 DUST COVER
153 A-4727-618-A PA BOARD, COMPLETE (XGR60)
153 A-4727-641-A PA BOARD, COMPLETE (XGR6)
154 1-683-444-11 TRANS BOARD
155 3-703-244-00 BUSHING (FBS001), CORD
(XGR6,XGR60:AR,E51)
155 4-966-266-01 BUSHING (S) (FBS002), CORD (XGR60:E,MX)
0 156 1-575-653-11 CORD, POWER (XGR60:MX)
0 156 1-777-071-81 CORD, POWER (XGR60:E51)
0 156 1-783-820-11 CORD, POWER (XGR6)
0 156 1-783-941-12 CORD, POWER (XGR60:AR)
0 156 1-791-901-11 CORD, POWER (XGR60:E)
158 1-683-445-11 SUB TRANS BOARD
* 159 4-988-533-01 HOLDER, PWB
160 A-4440-764-A MAIN BOARD, COMPLETE (XGR60:AR,E,E51)
160 A-4676-330-A MAIN BOARD, COMPLETE (XGR60:MX)
160 A-4727-645-A MAIN BOARD, COMPLETE (XGR6)
161 X-494-122-81 FOOT (F22125H-M)
0 F951 1-532-506-31 FUSE (6.3A 250V) (XGR60:AR,E,E51)
0 F961 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (8.0A 250V)
(XGR60)
0 F962 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (8.0A 250V)
(XGR60)
0 F963 1-532-506-31 FUSE (6.3A 250V) (XGR60)
0 F963 1-533-310-11 FUSE, GLASS CYLINDRICAL(DIA.5)
(6.3A 125V) (XGR6)
0 F964 1-532-506-31 FUSE (6.3A 250V) (XGR60)
0 F964 1-533-310-11 FUSE, GLASS CYLINDRICAL(DIA.5)
(6.3A 125V)(XGR6)
0 T951 1-433-606-11 TRANSFORMER, POWER (XGR60)
0 T951 1-435-797-11 TRANSFORMER, POWER (XGR6)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-881-09 SCREW +BVTT 4X8 (S)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
