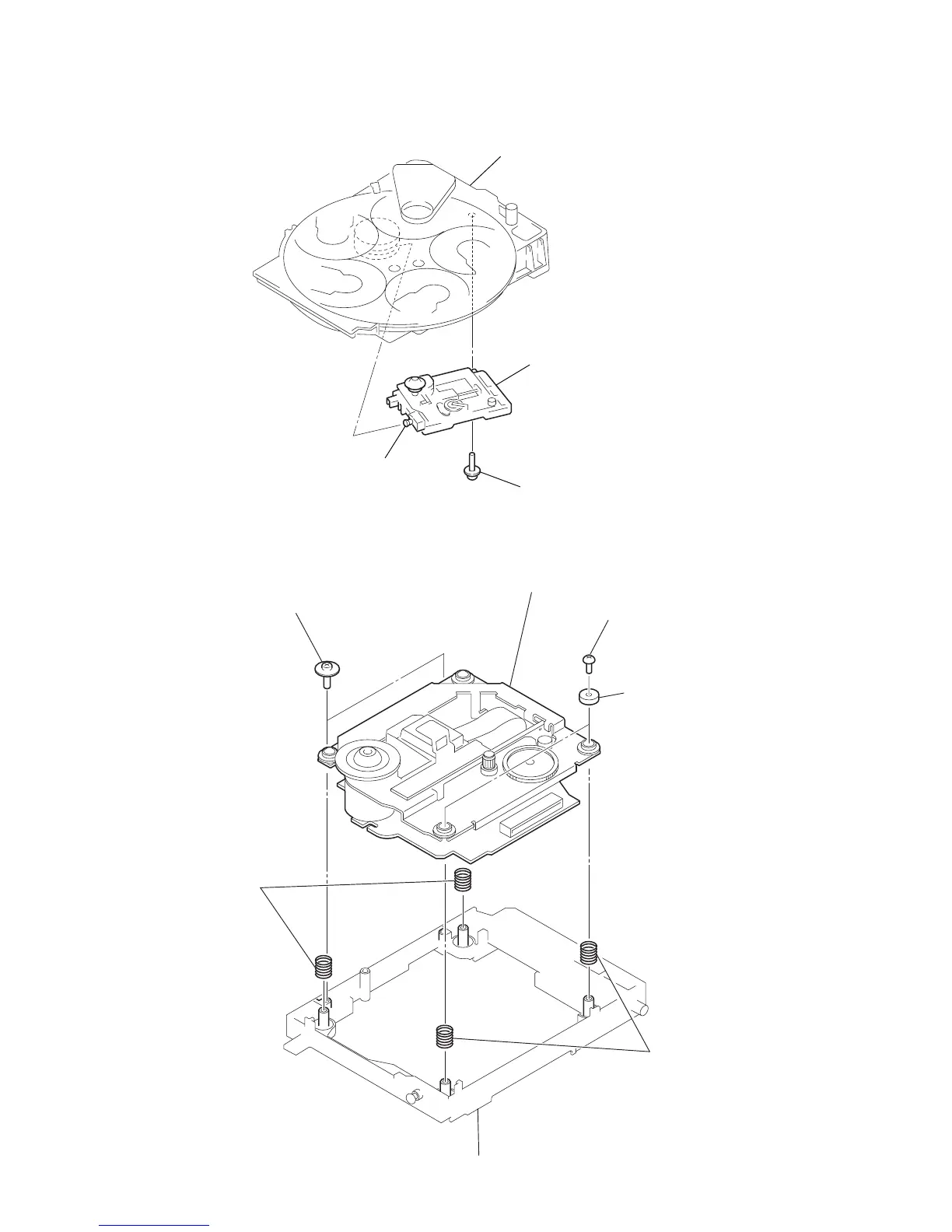

2-13. BASE UNIT-2 (BU-30BD60C)
3 Base unit
(BU-30BD60C)
CD mechanism deck
(CDM37B-30BD60C)
1 BU fitting screw
2 Boss
2-12. BASE UNIT-1 (BU-30BD60C)
1 Two floating screws (DIA.12)
6 Base unit (BU-30BD60C)
2 Two screws
(BVTP 2.6 X 8)
3 Two stoppers
(BU)
5 Two coil
springs
(insulator
)
4 Two coil springs
(insulator)
Holder (BU30) assy
