Sony HCD-XGR88 - Chassis Section

59
HCD-XGR88

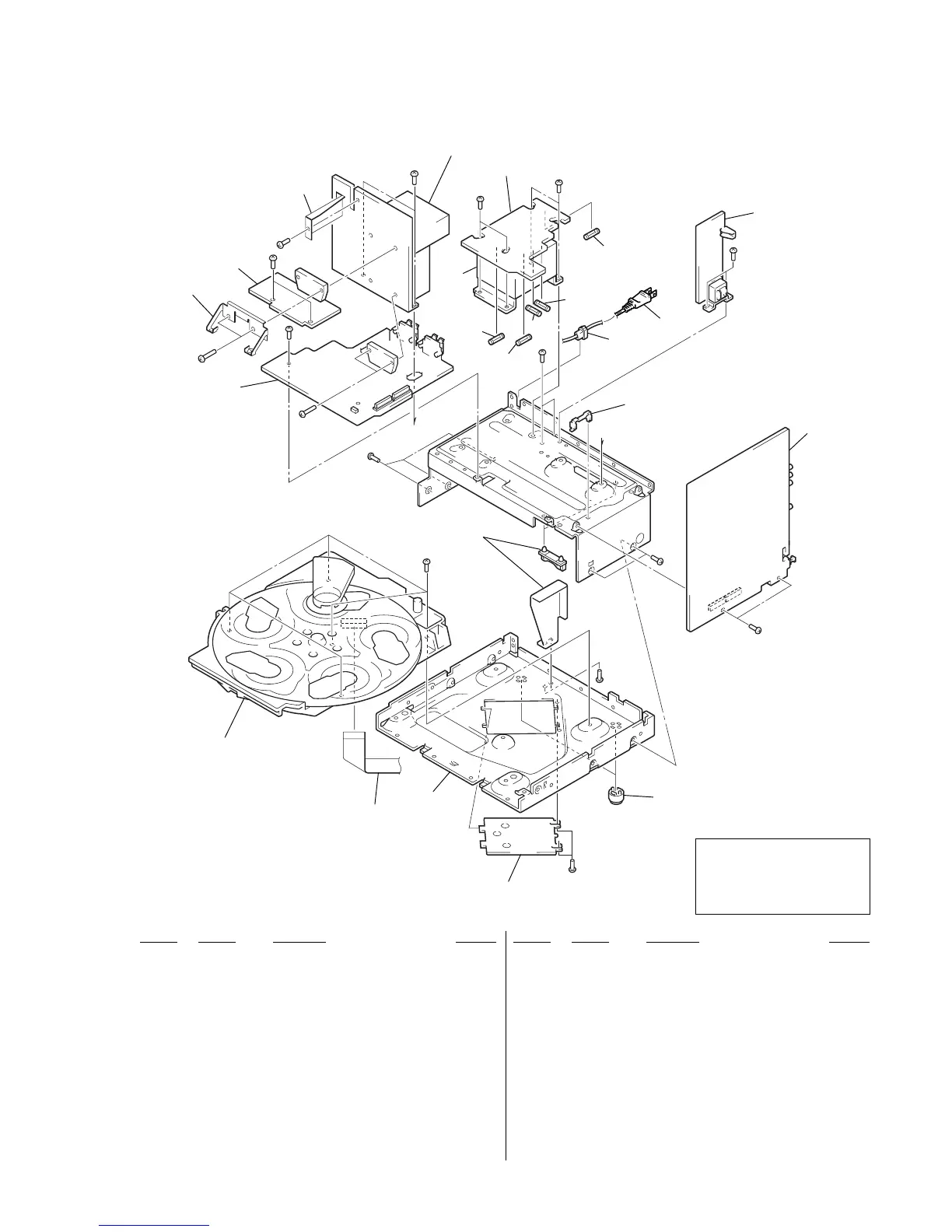

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
F961
F962
F964
F963
154
157
153
159
155
156
158
160
151
161
#2
#4
#4
#1
#2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
CDM37B-30BD60C
#5
#1
#1
#1
#1
#1
#1
#1
#1
#1
#5
F951
T951
b
b
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
151 1-823-750-11 WIRE (FLAT TYPE) (21 CORE)
153 A-4732-056-A PA BOARD COMPLETE
154 1-687-270-11 TRANS BOARD
* 155 3-703-244-00 BUSHING (2104), CORD (E51)
155 3-703-571-11 BUSHING (S) (4516), CORD (E2)
0 156 1-823-767-12 CORD, POWER (E51)
0 156 1-823-824-12 CORD, POWER (E2)
157 A-4732-054-A SUB AMP BOARD COMPLETE
158 1-687-271-11 SUB TRANS BOARD
* 159 4-988-533-01 HOLDER, PWB
160 A-4732-059-A MAIN BOARD COMPLETE
161 X-4941-228-1 FOOT (F22125H-M)
0 F951 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0 F961 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0 F962 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0 F963 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0 F964 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0 T951 1-439-703-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-881-09 SCREW +BVTT 4X8 (S)
