HCD-XGV6/XGV8/XGV10AV

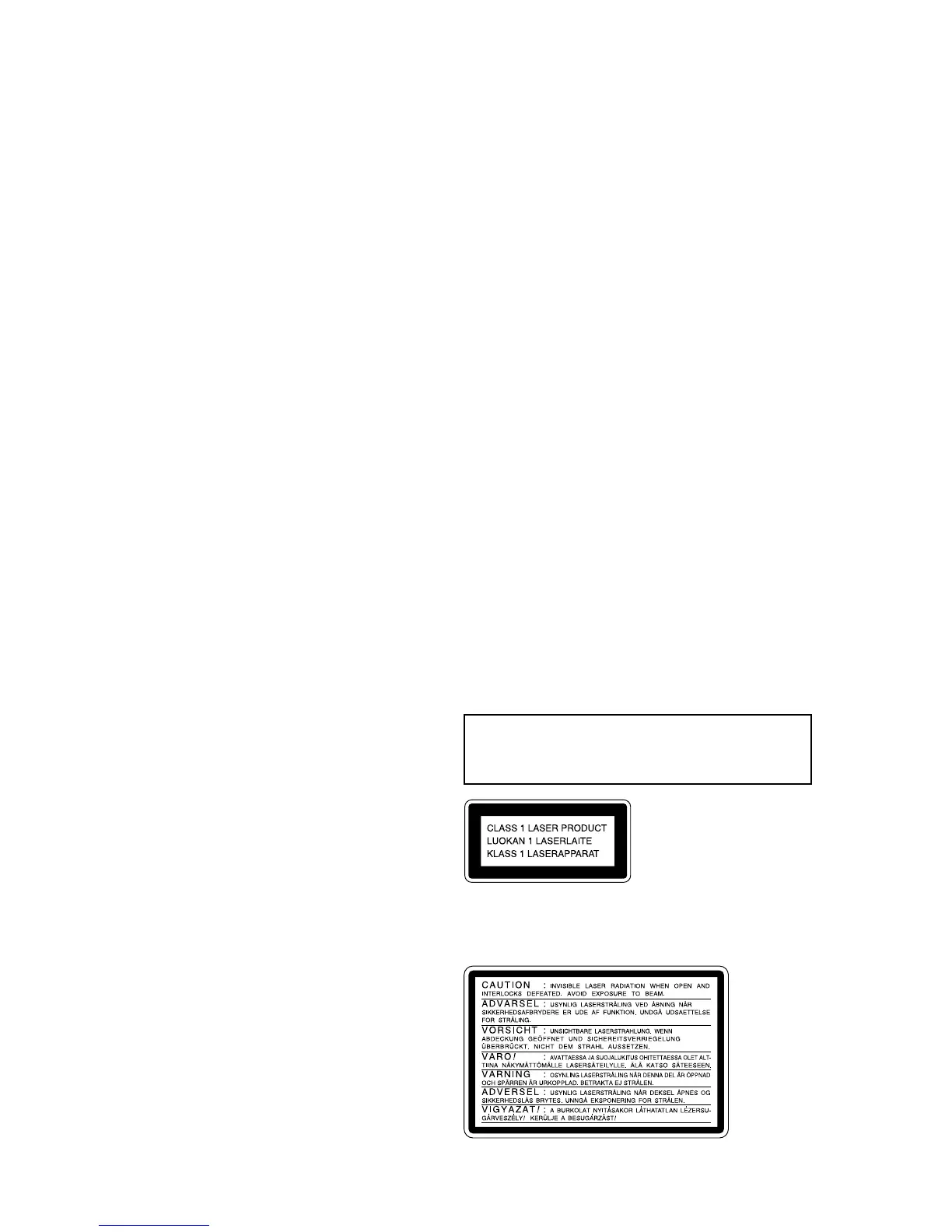

This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of soldering iron around 270˚C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
Outputs
PHONES:
(stereo phone jack) accepts headphones of 8 ohms or more
MD (VIDEO) OUT:
(phono jacks) voltage 250 mV
impedance 1 kilohms
LBT-XGV10AV
WOOFER OUT (phono jack): voltage 1 V, impedance 1 kilohm
FRONT SPEAKER: accepts impedance of 6 to 16 ohms
CENTER SPEAKER: accepts impedance of 8 to 16 ohms
REAR SPEAKER: accepts impedance of 8 to 16 ohms
LBT-XGV8
FRONT SPEAKER: accepts impedance of 6 to 16 ohms
(SUPER WOOFER)
accepts impedance of 6 to 16 ohms
(TWEETER & WOOFER)
LBT-XGV6
FRONT SPEAKER: accepts impedance of 6 to 16 ohms
Video section
Inputs
GAME INPUT (phono jack): 1 V p-p, 75 ohms
Outputs
VIDEO OUT (phono jack): 1 V p-p, 75 ohms
VIDEO CD/CD player section
System Compact disc and digital audio system
Laser Semiconductor laser
(λ=795nm), Emission
duration: continuous
Frequency response 2 Hz – 20 kHz (±0.5 dB)
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
Video color system format NTSC, PAL
Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 – 13,000 Hz (±3 dB),
using Sony TYPE I cassette
Wow and flutter ±0.15% W.Peak (IEC)
0.1% W.RMS (NAB)
±0.2% W.Peak (DIN)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 – 108.0 MHz
(50 kHz step)
Antenna FM lead antenna
Antenna terminals 75 ohms unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Middle Eastern model: 531 – 1,602 kHz
(with the interval set at 9 kHz)
Other models: 531 – 1,602 kHz
(with the interval set at 9 kHz)
530 – 1,710 kHz
(with the interval set at 10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
General
Power requirements
Saudi Arabian model: 120 – 127 V, 220 V or 230 – 240 V AC,
50/60 Hz
Adjustable with voltage selector
Thai model: 220 V AC, 50/60 Hz
Other models: 120 V, 220 V or 230 –240 V AC,
50/60 Hz
Adjustable with voltage selector
Power consumption
LBT-XGV10AV 230 watts
LBT-XGV8 320 watts
LBT-XGV6 180 watts
Dimensions (w/h/d) Approx. 355 x 425 x 451 mm
Mass:
LBT-XGV10AV Approx. 15.4 kg
LBT-XGV8 Approx. 16.4 kg
LBT-XGV6 Approx. 14.7 kg
Supplied accessories: AM loop antenna (1)
FM lead antenna (1)
Speaker cords (XGV6, XGV8 (4),
XGV10AV (5))
Speaker pads (XGV6, XGV8 (8),
XGV10AV (12))
Remote commander (1)
Batteries (2)
Video connecting cable (1)
Design and specifications are subject to change witho fi notice.
