Sony HT-DDW890 - 3 A: Connecting the Audio Components

19
GB
Getting Started
3a: Connecting the audio components
The following illustration shows how to
connect a Super Audio CD player, CD player
or CD recorder.
After connecting your audio component,
proceed to “3b: Connecting the video
components” (page 20) or “4: Connecting the
antennas” (page 28).

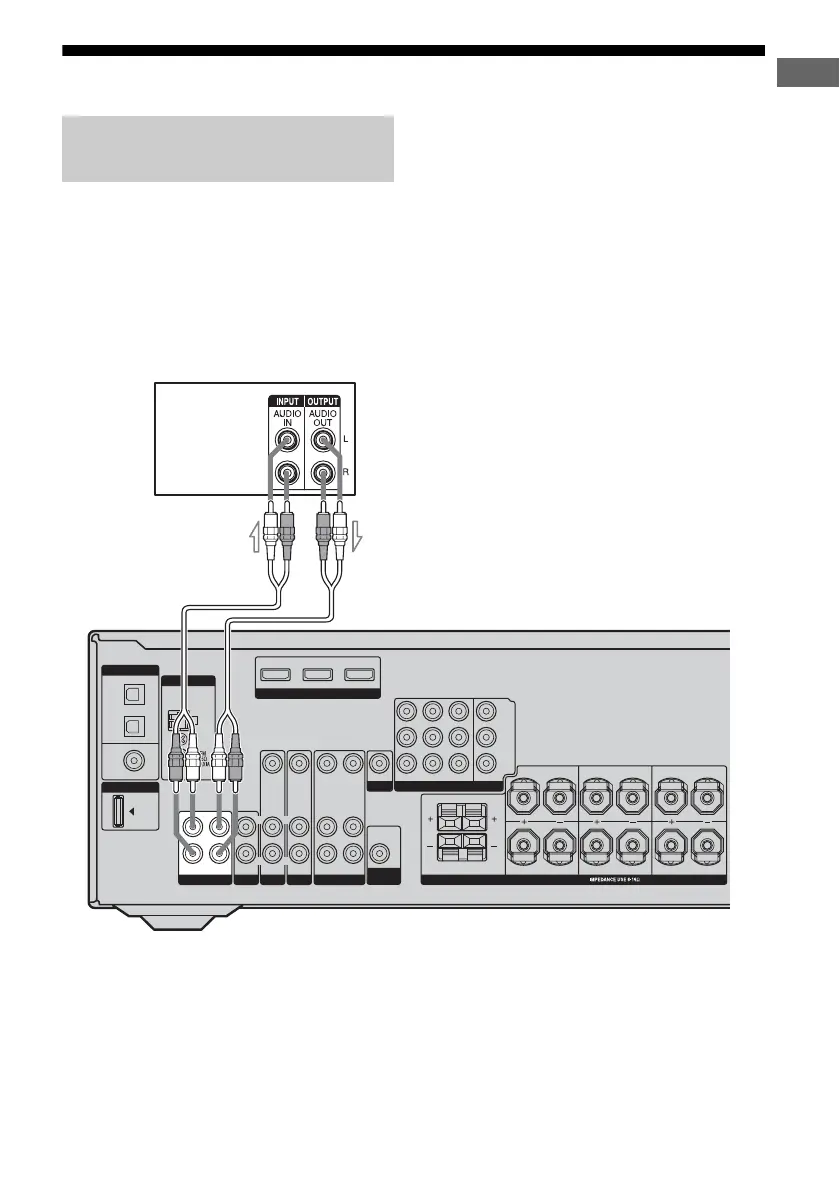

Connecting a Super Audio CD/CD
player or CD recorder
DIGITAL
DMPORT
OPTICAL
SAT
IN
DVD
IN
COAXIAL
ANTENNA
VIDEO 2/
BD IN
AM
TV
IN
HDMI
DVD IN VIDEO 2/BD IN OUT
SAT
AUDIO IN
VIDEO IN
DVD
AUDIO IN
VIDEO IN
VIDEO 1
AUDIO OUT
VIDEO OUT
VIDEO OUT
SAT IN
AUDIO IN
AUDIO OUT
VIDEO IN
L
R
L
R
L
R
SUB
WOOFER
MONITOR COMPONENT VIDEO
DVD IN VIDEO 1 IN
Y
P
B /C B
P R /C R
MONITOR OUT
SPEAKERS
FRONT B
FRONT A
L
L
R
R
SURROUND
L
R
CENTER
SURROUND BACK
SA-CD/CD/CD-R
L
R
OUT IN
Super Audio
CD player/
CD player/
CD recorder
A Audio cord (not supplied)
A
