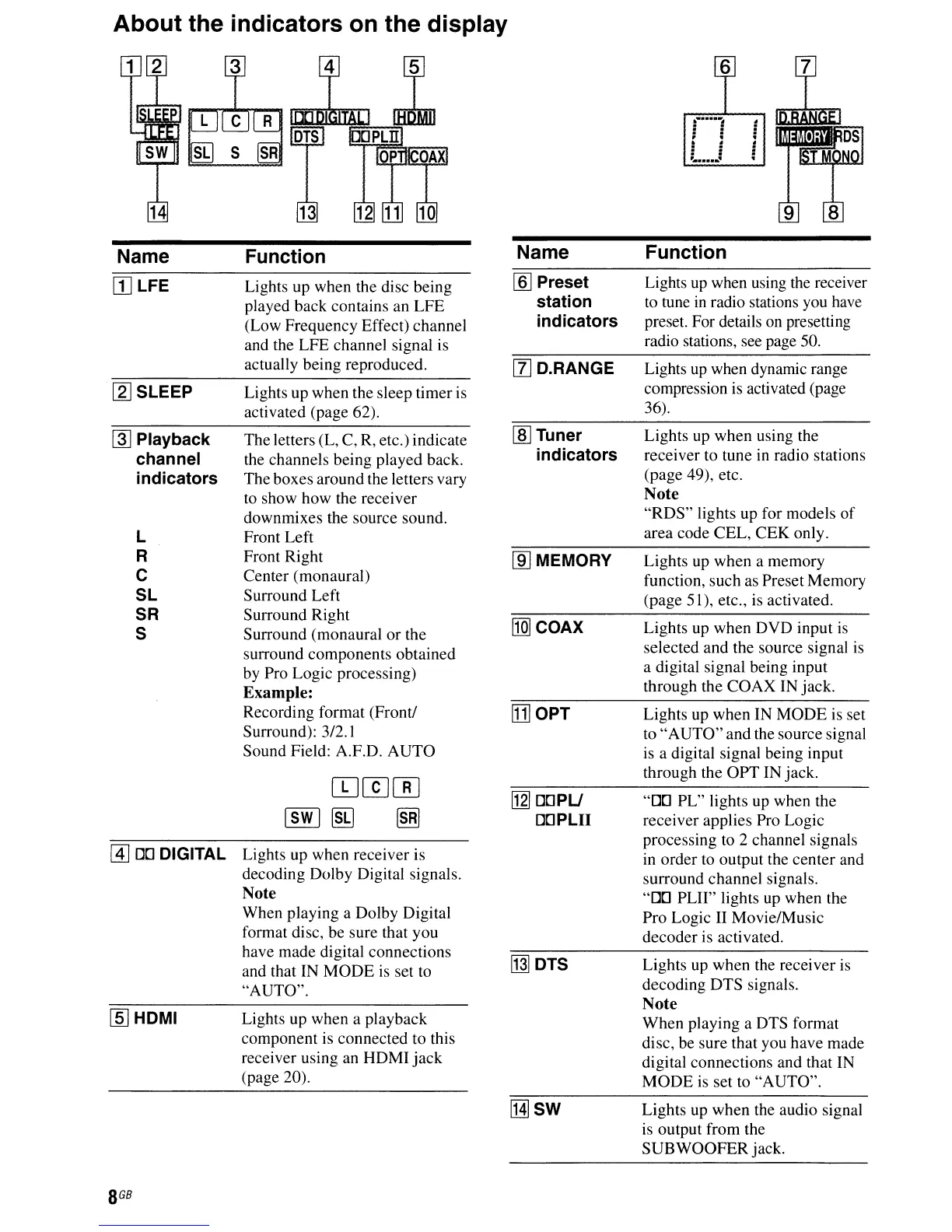

About the indicators on the display
FunctionName
FunctionName
;~
~
[[Q
s
~
[]LFE
[g] SLEEP
~
Playback
channel
indicators
L
R
C
SL
SR
S
@]
DO
DIGITAL
ffi] HDMI
Lights up when the disc being
played back contains an
LFE
(Low Frequency Effect) channel
and the
LFE
channel signal is
actually being reproduced.
Lights up when the sleep timer is
activated (page 62).
The
letters (L, C, R, etc.) indicate
the channels being played back.
The boxes around the letters vary
to show
how
the receiver
downmixes the source sound.
Front
Left
Front Right
Center (monaural)
Surround
Left
Surround Right
Surround (monaural
or
the
surround components obtained
by Pro
Logic
processing)
Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D.
AUTO
Lights up when receiver is
decoding
Dolby
Digital signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that IN
MODE
is set to
"AUTO".
Lights up when a playback
component is connected to this
receiver using an
HDMI
jack
(page 20).
[§]
Preset
station
indicators
[l] D.RANGE
lID
Tuner
indicators
[ill MEMORY
[j]]
COAX
[j]
OPT
1121
DOPU
DOPLII
~DTS
Lights up when using the receiver
to tune
in
radio stations you have
preset. For details on presetting
radio stations, see page 50.
Lights up when dynamic range
compression is activated (page
36).
Lights up
when
using the
receiver to tune in radio stations
(page 49), etc.
Note
"RDS"
lights up for models
of
area code
CEL,
CEK
only.
Lights up when a memory
function, such as Preset Memory
(page 51), etc., is activated.
Lights up when DVD input is
selected and the source signal is
a digital signal being input
through the
COAX
IN
jack.
Lights up when
IN
MODE
is set
to
"AUTO"
and
the source signal
is a digital signal being input
through the
OPT
IN jack.
"DO
PL"
lights up when the
receiver applies Pro Logic
processing to 2 channel signals
in
order to output the
center
and
surround channel signals.
"DO
PLII" lights up when the
Pro Logic II Movie/Music
decoder
is activated.
Lights up when the receiver is
decoding
DTS
signals.
Note
When
playing a DTS format
disc, be sure that you have made
digital connections and that IN
MODE
is set to
"AUTO".
[Hjsw
Lights up
when
the audio signal
is output from the
SUB
WOOFER
jack.
8
GB
