7-7. TC MECHANISM SECTION 2 (TCM230AWR1)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 451 X-3374-214-1 CASSIS ASSY, MAIN
452 3-016-570-01 BELT (CAPSTAN)
453 3-016-569-01 BELT (TENSION)
454 3-017-360-01 BRACKET (MOTOR)
455 X-3374-234-1 FLYWHEEL (FWD) ASSY
456 X-3374-235-1 FLYWHEEL (REV) ASSY
457 X-3374-238-1 PULLEY ASSY, TENSION
458 3-024-405-01 BELT (FR)
459 A-2004-629-A MECHANICAL BLOCK ASSY (230AWR1)(*NOTE)
459 A-2004-630-A MECHANICAL BLOCK ASSY (230PWR1)(*NOTE)
460 3-016-566-01 SLIDER, REVERSE
* 461 A-2007-732-A LEAF SW BOARD, COMPLETE
462 3-016-575-01 SPRING, TORSION
463 3-019-208-01 WASHER, STOPPER
464 3-027-453-01 SPRING (GROUND), TENSION
M1 A-2004-628-A MOTOR ASSY, CAPSTAN
*
NOTE: Two types of parts which are not interchangeable are available
for the mechanical block assembly. When replacing the parts,
refer to the following figure, and use the appropriate part.

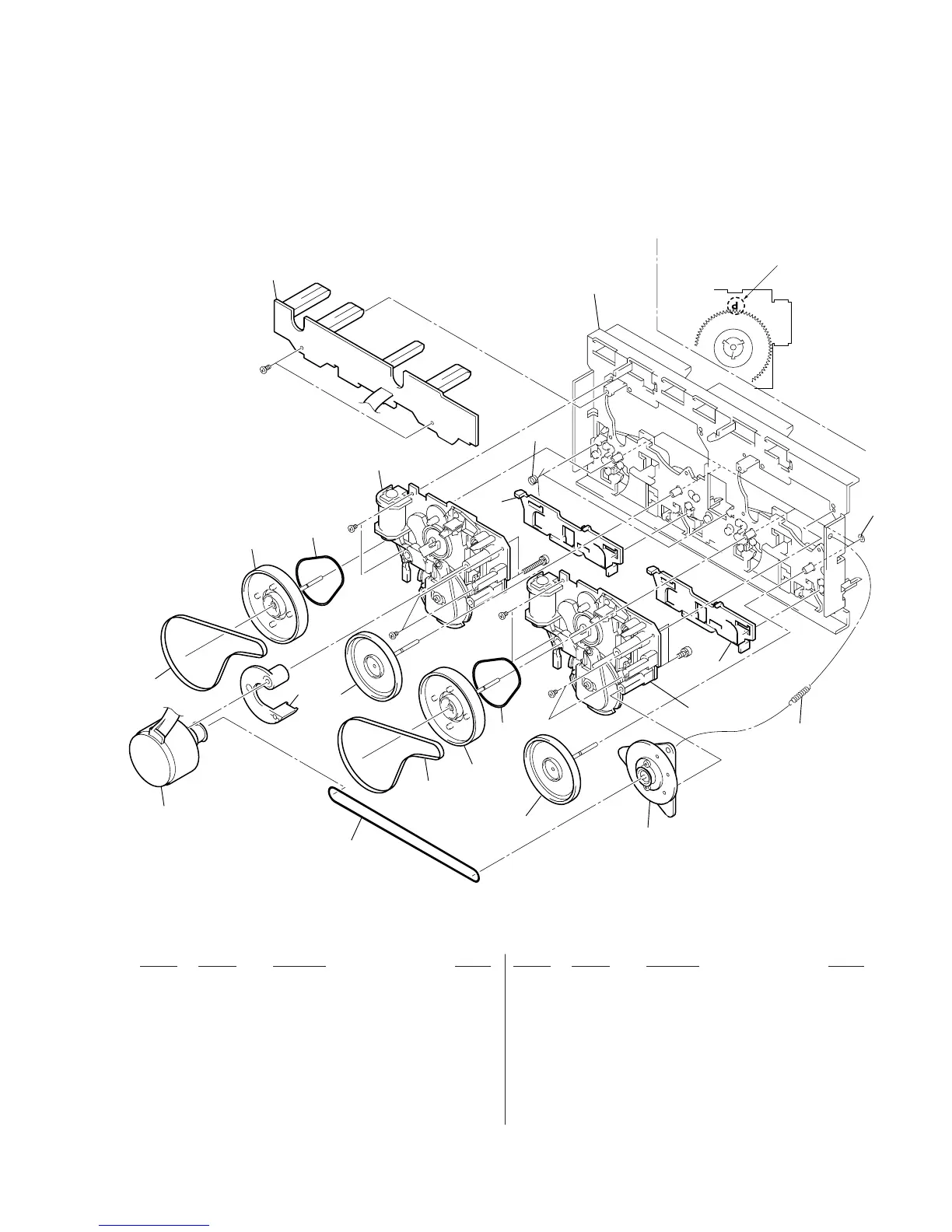

451
452
452
453
454
455
455
456
456
457
464
458
458
459
459
460
460
461
462
463
M1
#5
#6
#7
#5
#5
#5
#8
Parts with “P” mark: 230PWR1
Parts without “P” mark: 230AWR1
