Sony HTC-W555 - Front Panel; TC Mechanism Deck and Cassette Holder

– 9 –

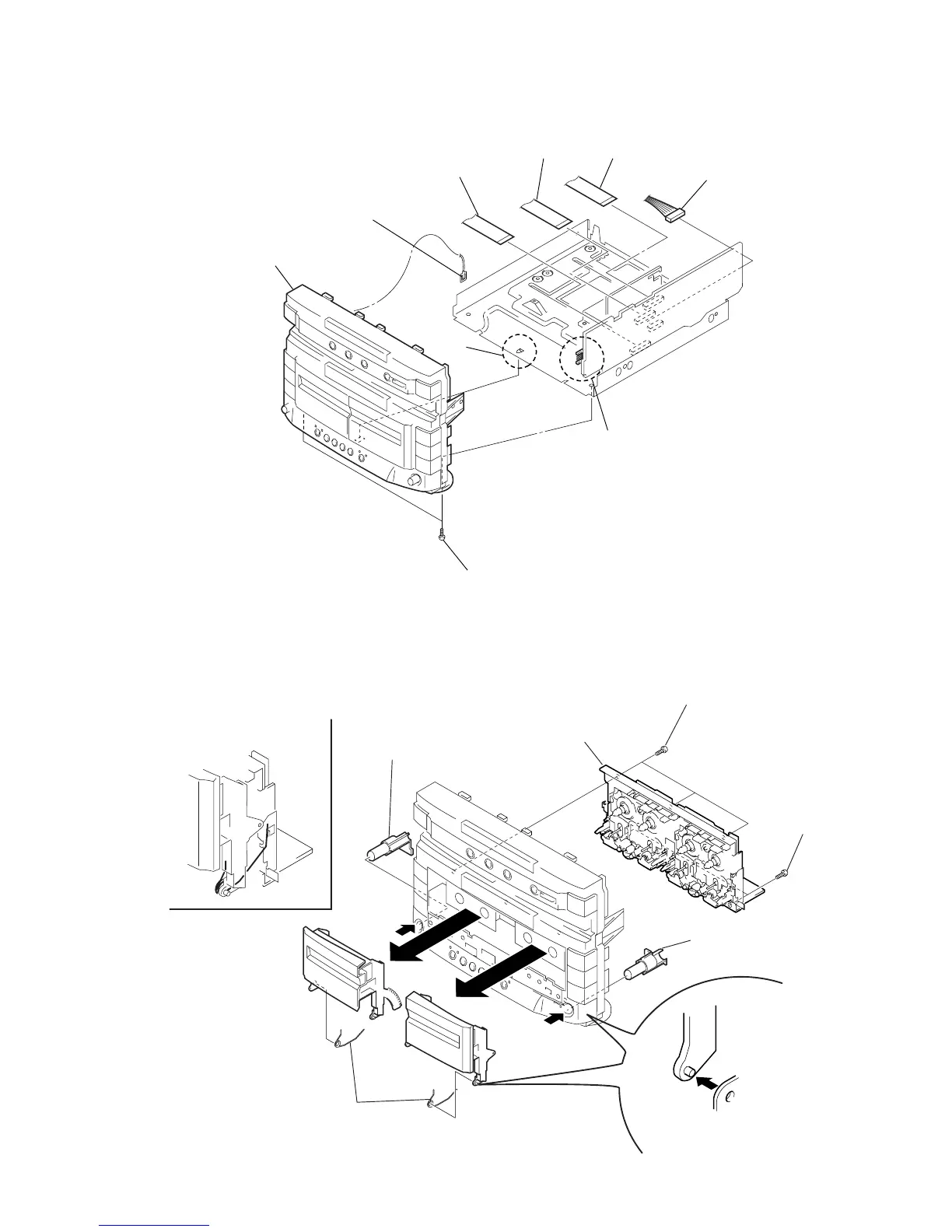

3-3. FRONT PANEL
3-4. TC MECHANISM DECK AND CASSETTE HOLDER
1 Push the 6 buttons.
(Arrow
A and arrow B .)
1 Flat type wire
(13core, CNS102)
4 Connector
(CN113)
2 Flat type wire
(17core, CNS104)
5 Two screws
(BVTP3x10)
6 Lead (with connector)
7 Connector (CNP105)
Catcher
8 Front panel
(Remove the catcer)
3 Flat type wire
(15core, CNS101)
A
2
Three screws
(BVTP2.6x8)
3 Two screws
(BVTP2.6x8)
4 TC mechanism deck
5 Two springs
C
D
D
C
6
Remove the Cassette holder A
and Cassette holder B.
(Remove C first, and remove D .)
7 Eject button A
8 Eject button B
Note for installation
Set the Spring to be at the position
in the figure.
B
